Page 21
IFS MC250-4T/XXX Series User Manual 17
Standards Compliance
IEEE 802.3 Ethernet, 10Base-T
IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX
IEEE 802.3x Full-duplex Flow control
Stability testing
IEC60068-2-32(Free Fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)
Temperature
Operating: -40~75 Degree C
Storage: -40~85 Degree C
Humidity Operating
Operating: 5% to 90%, Storage: 5% to 90% (Non-
condensing)
Regulation Compliance
FCC Part 15 Class A, CE

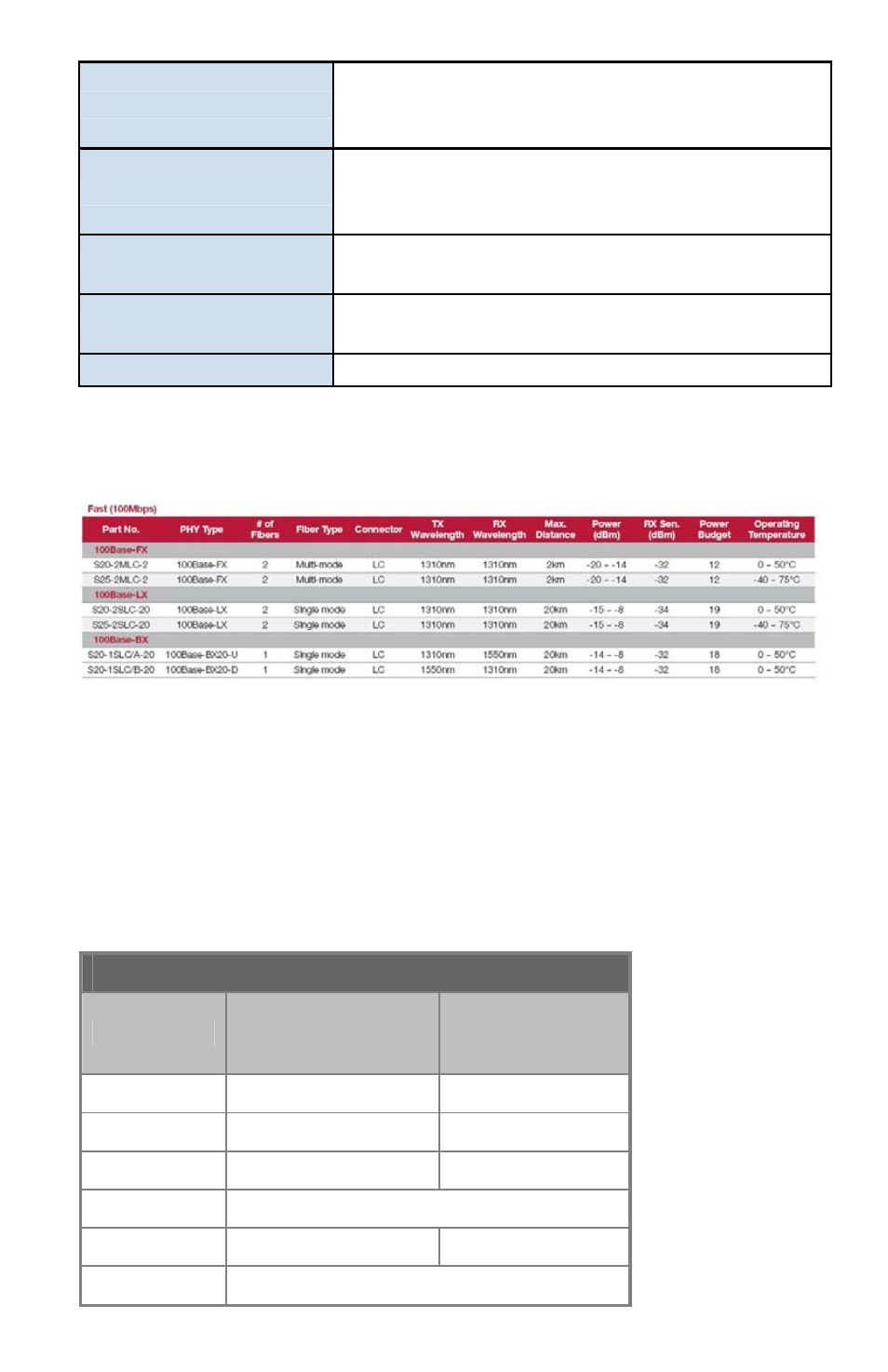

Compatible SFP Modules
When connecting to other Ethernet equipment such as a
Router, Bridge, Switch, or Hub, please refer to that device’s
Technical Manual.
RJ45 Pin Assignments
10/100Mbps, 10/100Base-TX
RJ-45 Connector pin assignment
Contact
MDI
Media Dependant
Interface
MDI-X
Media Dependant
Interface -Cross
1
Tx + (transmit)
Rx + (receive)
2
Tx - (transmit)
Rx - (receive)
3
Rx + (receive)
Tx + (transmit)
4, 5
Not used
6
Rx - (receive)
Tx - (transmit)
7, 8
Not used
