600-1053-4 Concord 4 CDMA Module Installation Sheet
5

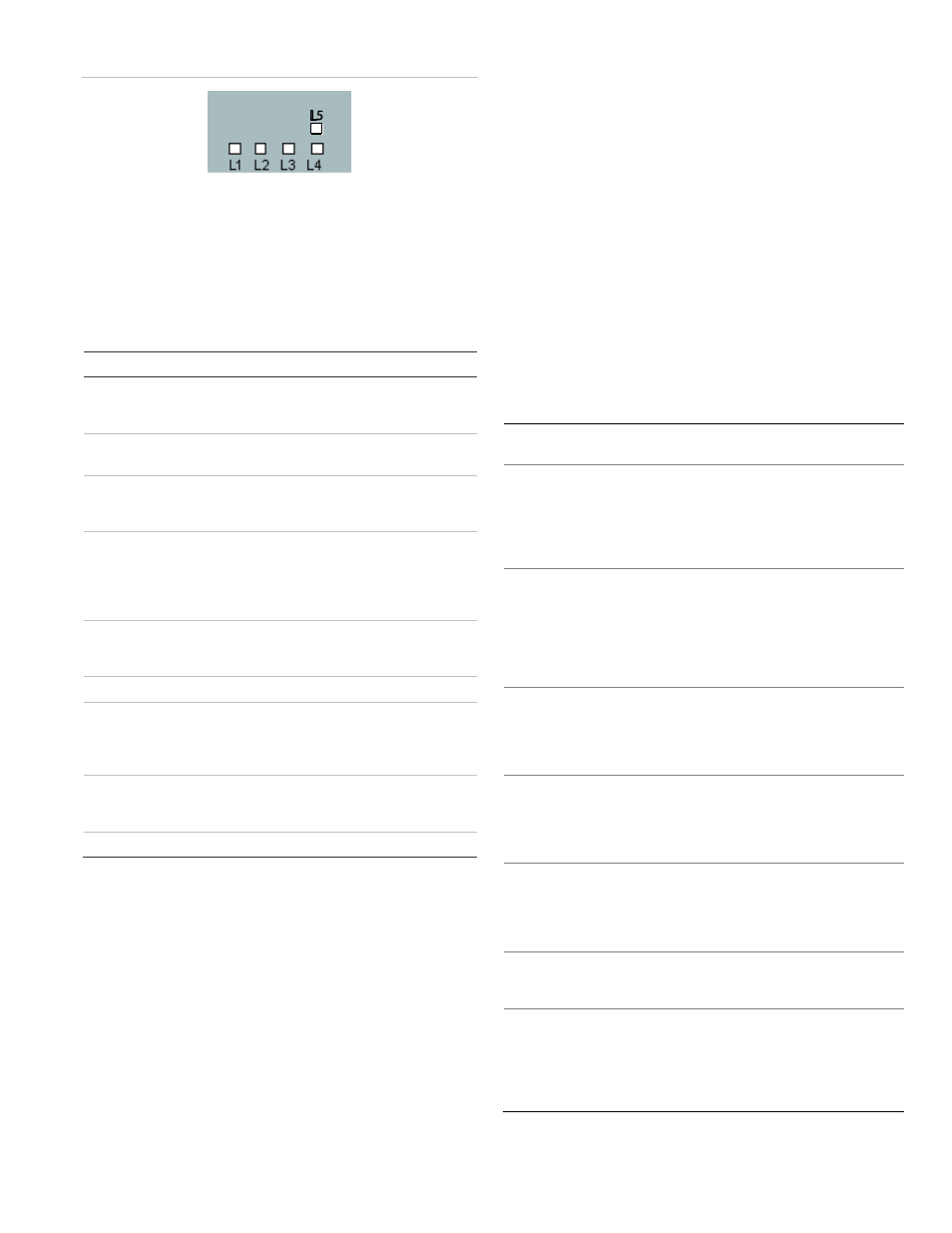

Figure 5: Cellular status LEDs
LED L1 (red). Flashes 1 to 8 times in an 8-second interval to
indicate specific error conditions. The number of flashes
indicates the error number. If there are two or more errors at
the same time, the errors will flash one after the other. The
LED will stay off for at least 4 seconds between errors.
Table 4: LED L1 errors
Flashes
Error
1 flash
Module cannot communicate with the panel. Check wiring
between the panel and the module. Make sure the bus
wires are not swapped.
2 then 4
flashes
The module provisioning process could not be completed.
2 then 5
flashes
The module provisioning process could not be completed
because the module is currently roaming on the carrier
’s
network.
3 flashes The module is trying to register on the cellular network. If it
persists more than a few minutes, the module is having
problems registering. Check LED L4 for signal level. If the
signal level is too low, change the mod
ule’s location or use
a higher gain antenna.
4 flashes The module is registered on the cellular network, but cannot
connect with Alarm.com. Contact Alarm.com technical
support.
5 flashes The radio portion of the module is not working correctly.
6 flashes This is an error only if it persists for more than a minute.
Otherwise, it is just an indication that the module is fixing an
unusual condition regarding communication with the cellular
network.
7 flashes Access Code Lock is on. The module cannot do certain
operations with the panel. This option should be turned off
at the panel (System Programming
– 0003).
8 flashes Contact Alarm.com technical support.
LED L2 (yellow). Flashes with every communication between
the module and the panel. Normal pattern calls for a series of
quick flashes every 2 seconds in idle mode or every 4 seconds
in power save mode. It also occasionally flashes in patterns to
indicate Z-wave status. See Table 5 below for a description of
various possibilities.
LED L3 (green or yellow). Flashes with every communication
between the module and its radio unit in idle mode, and with
every communication with Alarm.com in connected mode. In
power save mode, this LED flashes in unison with LED L2.
LED L4 (green or yellow). Indicates cellular signal level as a
number of flashes (1 to 5). The signal level is updated every 10
seconds. No flashes indicate one of the following:
•
The module is in power save mode or in connected mode.
•
The module is just powering up, or has just exited power
save mode.
•
There is no carrier cellular coverage in the area.
In connected mode, the LED toggles on and off.
If LED L4 is continuously flashing, the module provisioning
process is in progress. The signal level indication will resume
after the process completes.
LED L5 (yellow) Indicates Z-Wave errors. The possible
signals and what they indicate is shown in Table 5 below
Table 5: Z-wave Status & Error Descriptions
LED
L2
LED
L5
Device Status or
Error
Description
4-blink
Add mode (lasts
120 seconds or
until a device is
added)
In this mode you can add a
device to the local Z-Wave
network. Devices cannot be
added to a network if they
are already a part of a
network.
2-blink
Delete mode (lasts
120 seconds or
until a device is
deleted)
In this mode you can delete
a device from a Z-Wave
network. A device can only
be in one network at a time,
and must
receive a “delete”
command before it can be
learned into a new network.
Solid
Successful add
node/remove node/
replication (lasts 60
seconds)
After receiving this signal
leave all devices by the
cellular module for 1 minute.
Locks must be left next to
the module for 4 minutes.
Solid
with
one
blink
Add node attempt
failed because
node already in
network (lasts 60
seconds)
The device you attempted to
add to a network is already
in a network, and must be
“deleted” before it can join a
new network.
2-
blink
No other nodes are
in the network
(lasts until a device
is added to the
network)
No devices have been
added that can be controlled
by the cellular module. See
above for instructions on
how to add devices.
5-
blink
Learn mode error
(lasts 60 seconds)
The device you attempted to
add into a Z-Wave network
was not successfully added.
6-
blink
No Home ID
present (lasts until
the module
connects to
Alarm.com and is
configured)
When the cellular module
first connects to Alarm.com
it is configured with a
necessary unique network
ID.
