2 system layout – IC Realtime 600TVL / 650TVL 36X High Speed PTZ Camera with 260ft User Manual
Page 17

10
Right now the device does not support this function.
IN
Reserved audio port. Audio connection port.
Right now the device does not support this function.
VIDEO GND
Ground port.
OUT
Video output port.

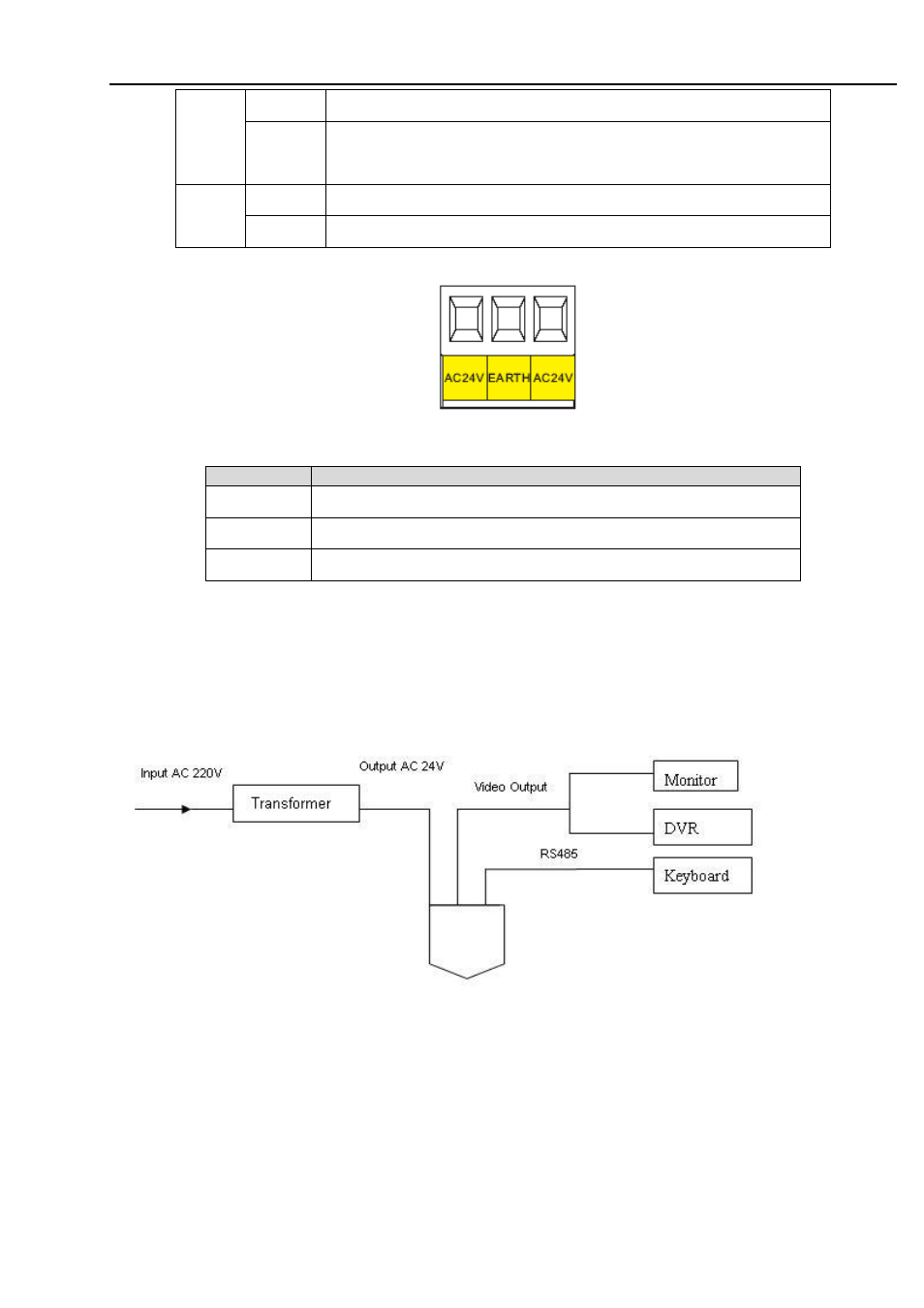

Power port connection interface is shown as in Figure 3-3.
Figure 3-3
Name
Function
AC24V
24V power port. Connect to the power cable.
EARTH
Ground port.
AC24V
24V power port. Connect to power cable.
3.2 System Layout
3.2.1 BUS connection
Please refer to Figure 3-4 and Figure 3-5 for BUS cable connection.
Figure 3-4
