3333 Installat Installat Installat Installation and Connections ion and Connections ion and Connections ion and Connections
Note: All the installation and operations here should conform to your local electric safety
rules.
3.1 3.1 3.1 3.1 Check Unpacked Check Unpacked Check Unpacked Check Unpacked NVR NVR NVR NVR
When you receive the NVR from the forwarding agent, please check whether there is any visible
damage. The protective materials used for the package of the NVR can protect most accidental
clashes during transportation. Then you can open the box to check the accessories.
Please check the items in accordance with the list (Remote control is optional). Finally you can
remove the protective film of the NVR.
Note
Remote control is not a standard accessory and it is not included in the accessory bag.
3.2 3.2 3.2 3.2 About Front P About Front P About Front P About Front Panel anel anel anel and Real Panel and Real Panel and Real Panel and Real Panel
For detailed information of the function keys in the front panel and the ports in the rear panel,
please refer to the appendix for detailed information.
The model in the front panel is very important; please check according to your purchase order.
The label in the rear panel is very important too. Usually we need you to represent the serial
number when we provide the service after sales.
3.3 3.3 3.3 3.3 HDD Installation HDD Installation HDD Installation HDD Installation
The unit you received has no HDD. Please remove the HDD box from the device and then follow
the steps listed below to install.
1) Remove HDD box cover, the HDD box and the parts are shown as below. See Figure
3-1.Please loosen the bolts of HDD box cover and then remove the top cover of the HDD box.

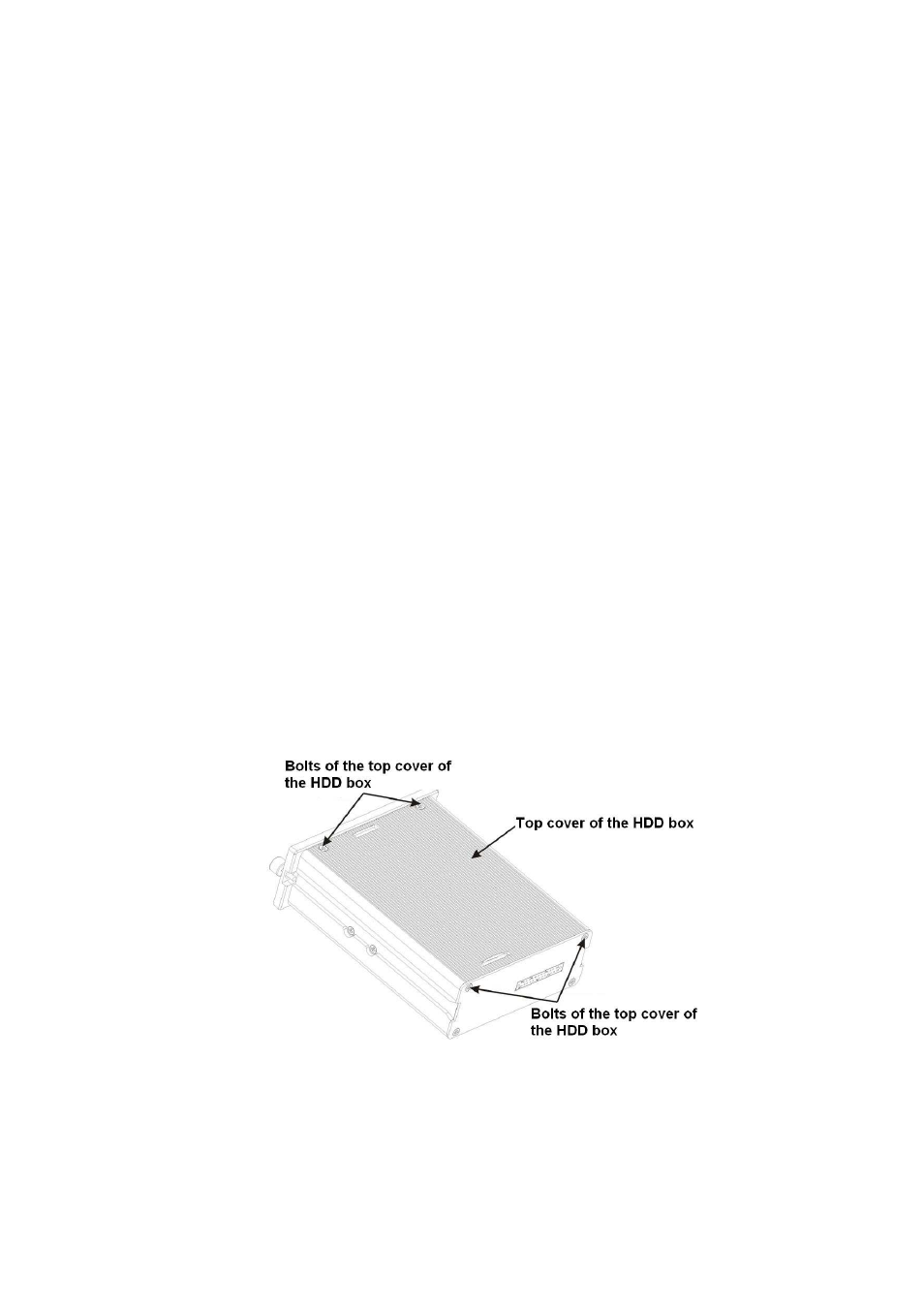

Figure 3-1
2) Now you can see an interface shown as in Figure 3-2 . Remove the two bolts from the HDD
bracket and then take out the bracket from the HDD box.
