IC Realtime 8/16/32 Channel 1.5U 8/16 PoE Network Video Recorder - Manual (Page 38)

30

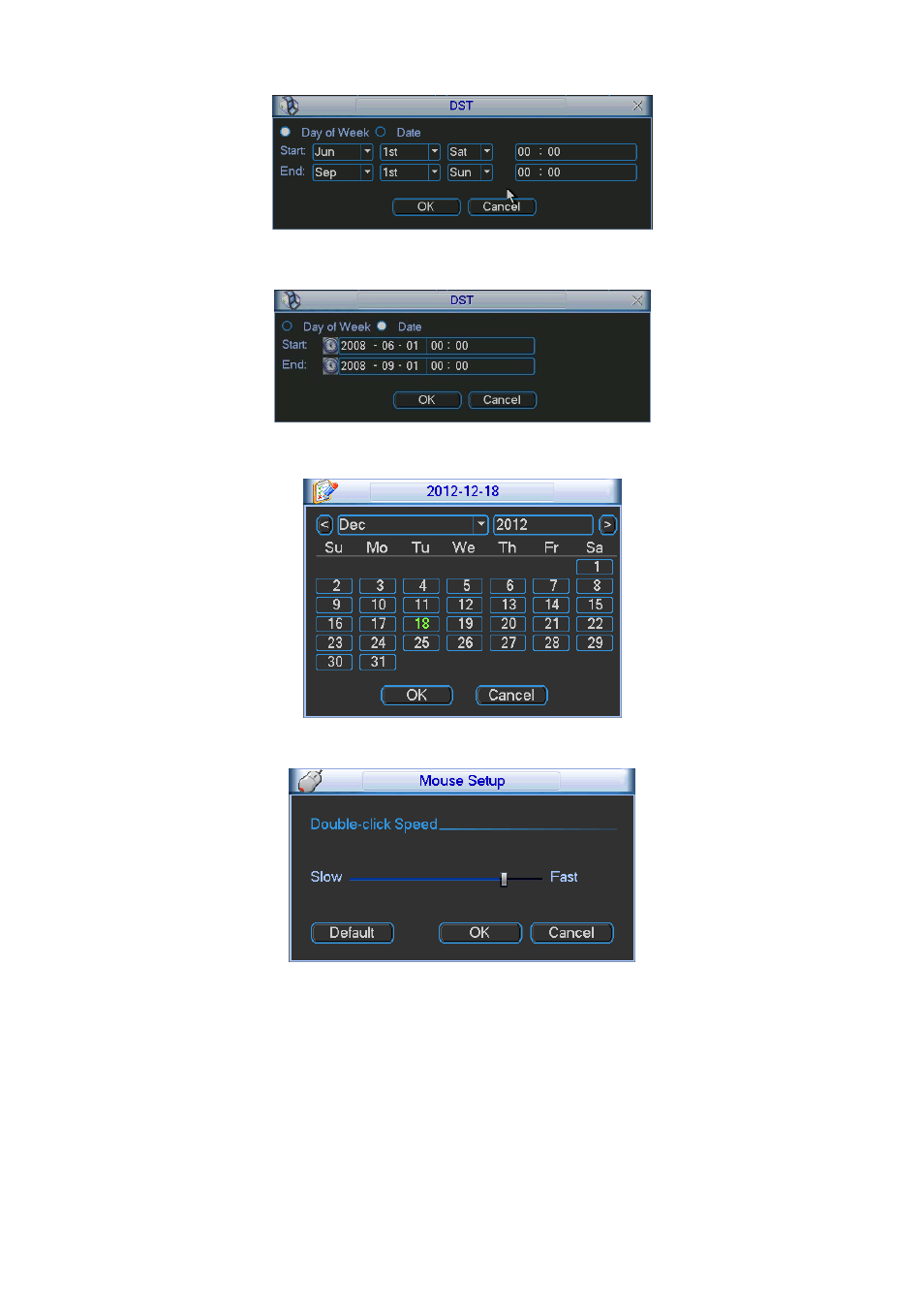

Figure 4-22
Figure 4-23
Figure 4-24
Figure 4-25
4.6.2 Encode
Encode setting includes the following items. See Figure 4-26.
Please note some series do not support extra stream.
z
Channel: Select the channel you want.
z Type: Please select from the dropdown list. There are three options: regular/motion
detect/alarm. You can set the various encode parameters for different record types.
z Compression: System supports H.264, MPEG4, MJPEG and etc.
