IC Realtime 8/16/32 Channel 1.5U 8/16 PoE Network Video Recorder User Manual
Page 14
6
Figure 2-2

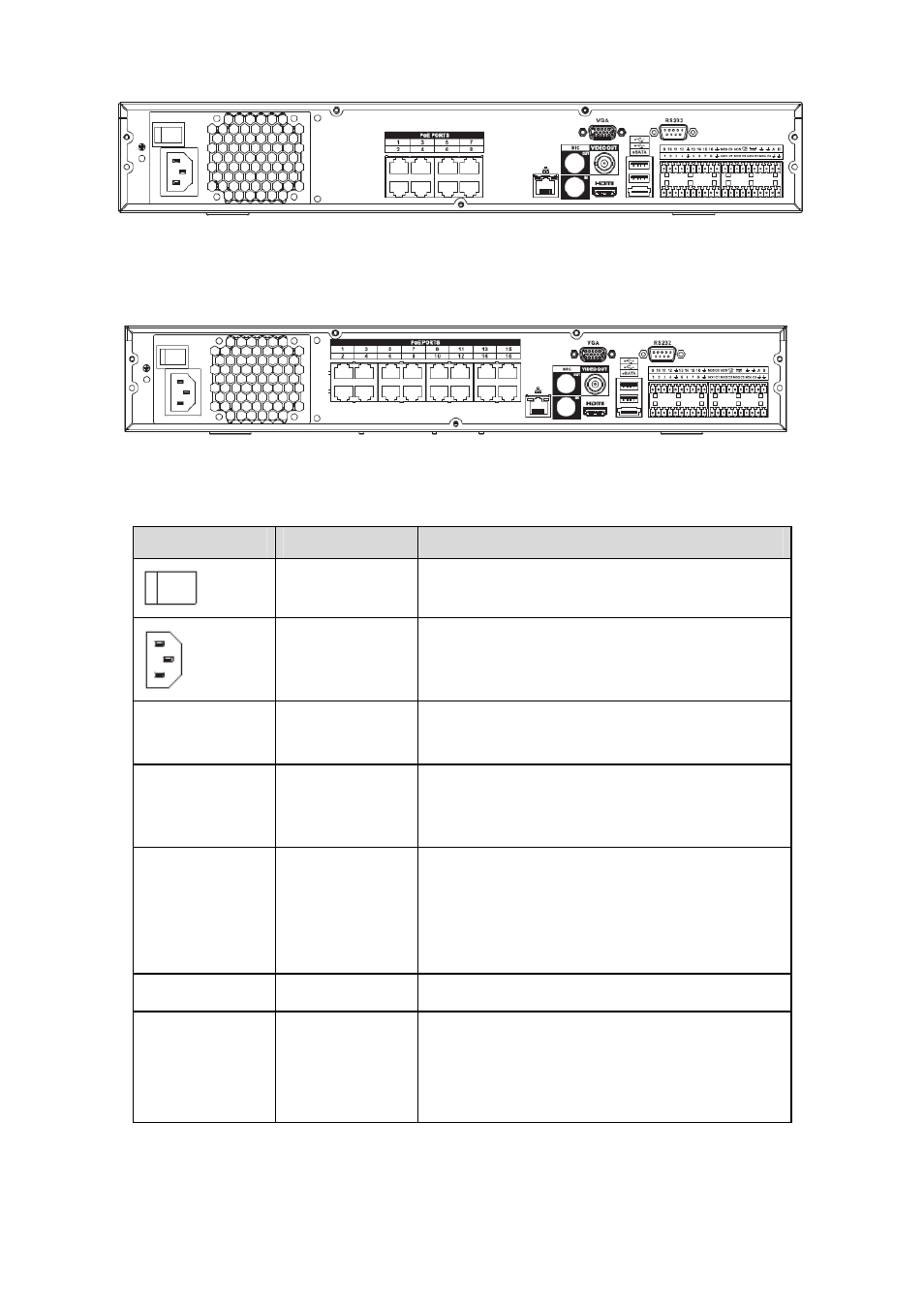

The NVR716MP series rear panel is shown as below. See Figure 2-3.
Figure 2-3
Please refer to the following sheet for detailed information.
Icon
Port Name
Function
Power on-off
button
Power on-off button
Power input port
Input AC 220V.
PoE PORTS
PoE port
Built-in Switch supports PoE function.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such
as mike phone, pickup.
MIC OUT
Audio output port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
z
Bidirectional talk output.
z
Audio output on 1-window video monitor.
z
Audio output on 1-window video playback.
VIEDEO OUT
Video output port CVBS output
HDMI
High Definition
Media Interface
High definition audio and video signal output port.
It transmits uncompressed high definition video
and multiple-channel data to the HDMI port of the
display device.
