16

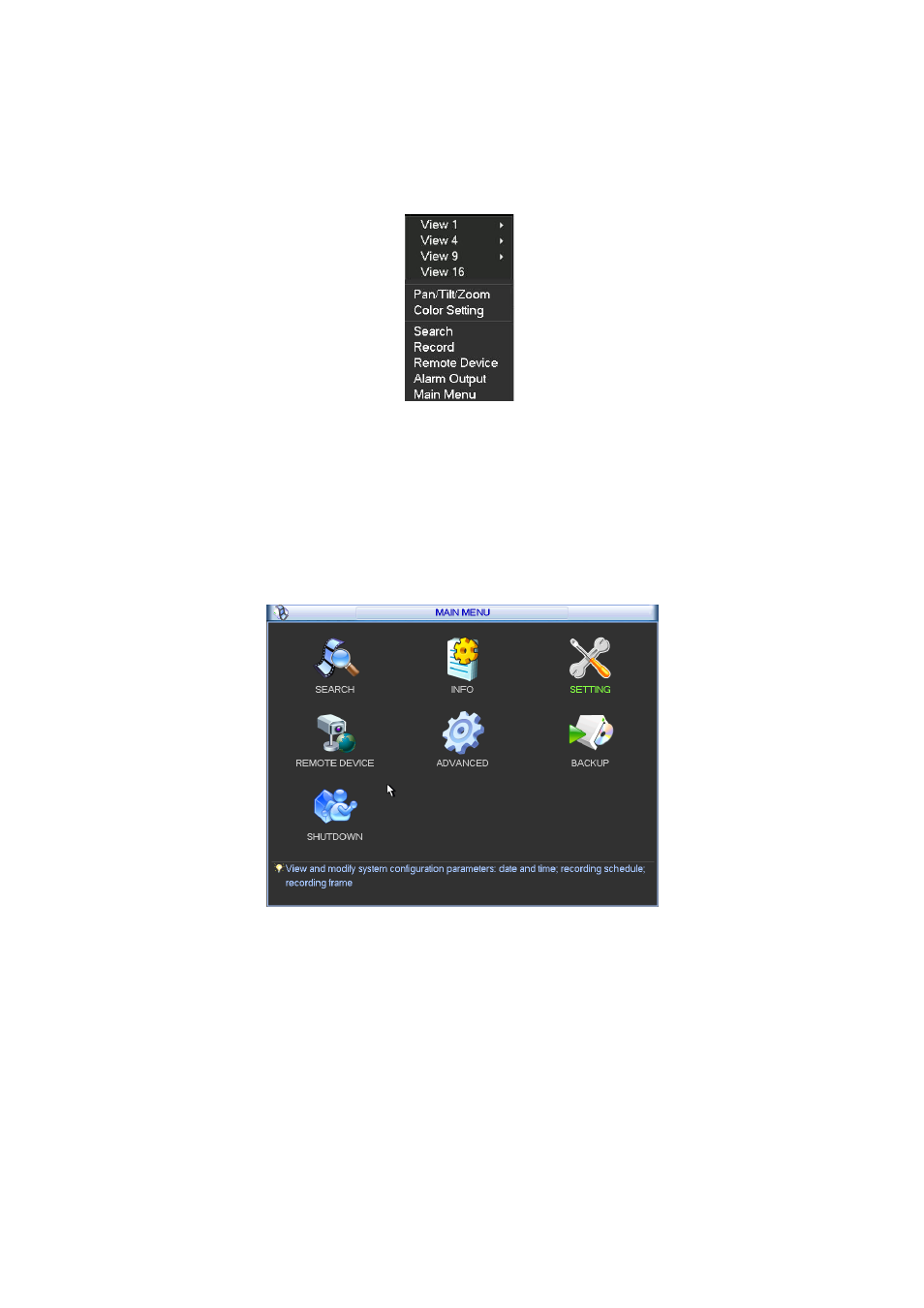

After you logged in the device, right click mouse, you can see the short cut menu. Please see
Figure 4-4.
Here you can set local playback window, PTZ control, video color, search records, remote device
and etc. The local playback window includes 1/4/8/9/16. You can set the detail channel amount in
1/4-window.
Figure 4-4
4.3 Main Menu
After you logged in, the system main menu is shown as below. See Figure 4-5. There are total
seven icons: search, Information, setting, remote device, backup, advanced and shutdown. Move
the cursor to highlight the icon, then double click mouse to enter the sub-menu.
Figure 4-5
4.4 Search & Playback
Click search button in the main menu, search interface is shown as below. See Figure 4-6.
