Place a piece of double-sided tape on the bottom of the new E-Board.

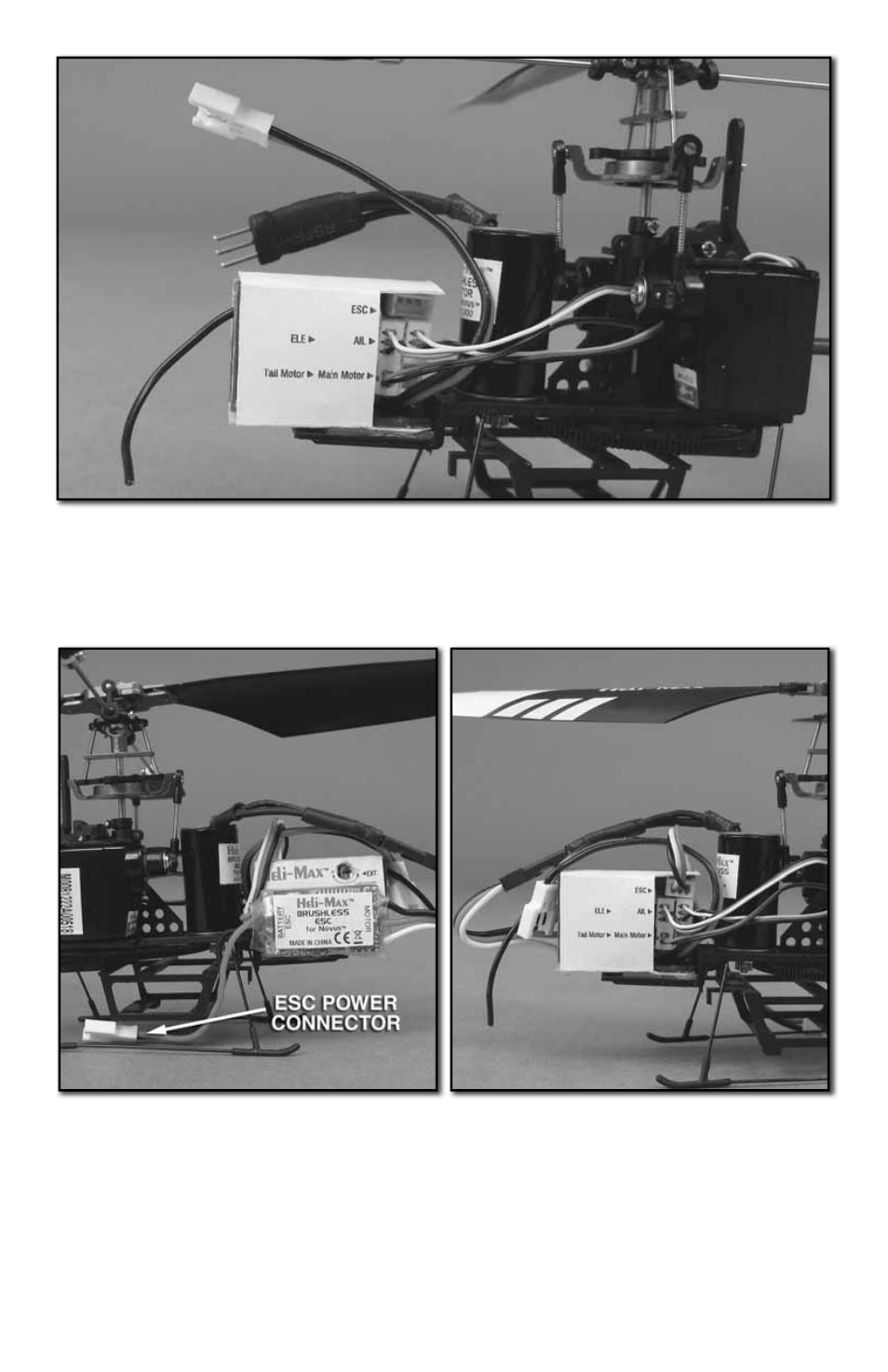

Position the E-Board onto the mounting tray as shown. Connect the servos
to the receiver and connect the tail motor harness to the “Tail Motor” plug on
the E-Board.
❏
Place a piece of double sided tape on the back side of the ESC (Electronic
Speed Control). Mount the ESC onto the E-Board as shown in the picture.
Route the ESC lead to the receiver and plug it into the port labeled ESC on the
E-Board. It is best to route the wires as shown above and place the E-Board
power connector on top of the E-Board to avoid accidental use. Route the ESC
power lead out the bottom of the helicopter as shown (the power connector on
the E-Board is no longer used).
