Heli-Max HMXE0805 Manual User Manual
Page 17
17

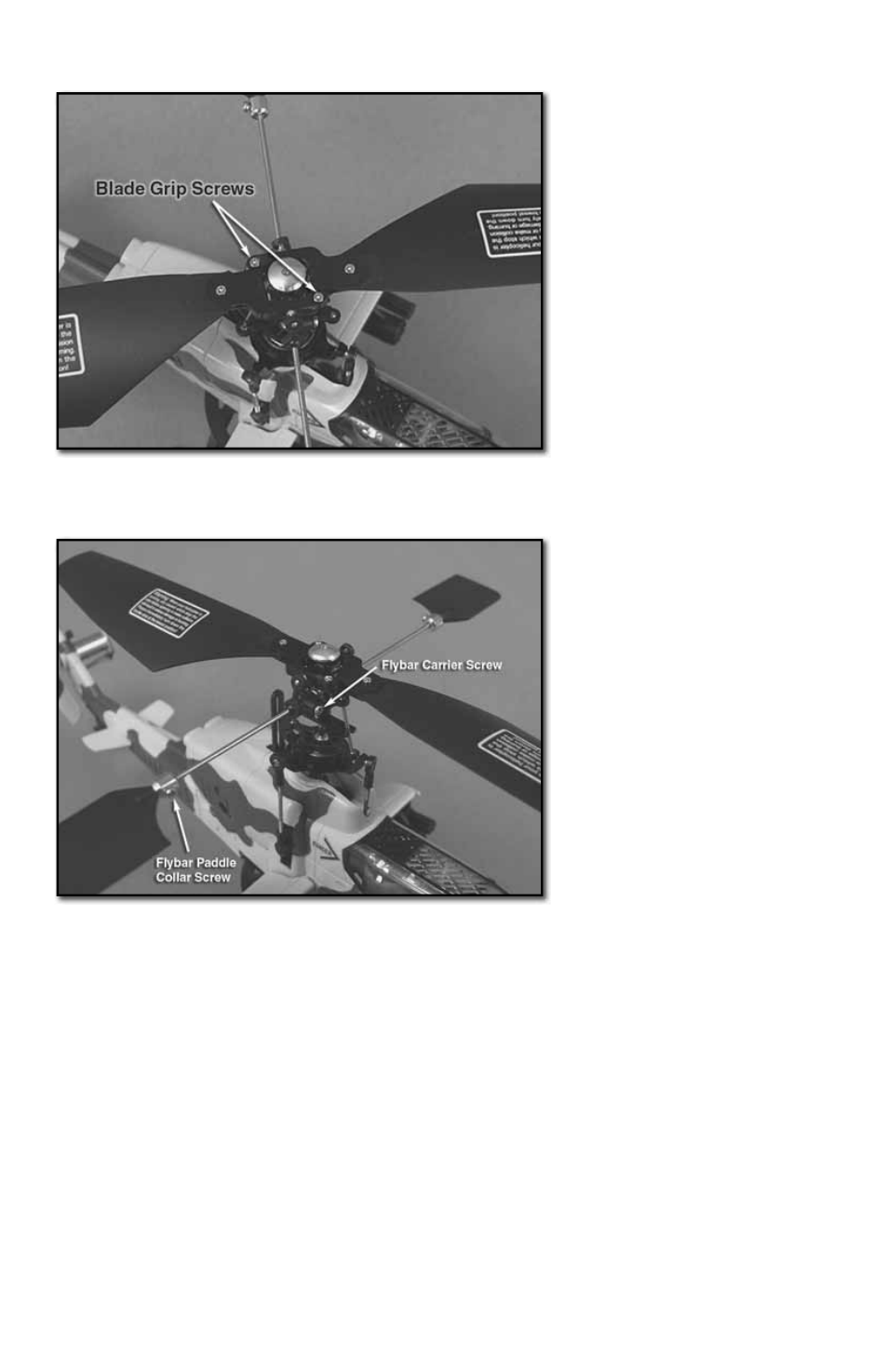

MAIN ROTOR GRIP REPLACEMENT
❏ Remove both blade bolts
and main rotor blades.
Remove the flybar linkage
from the blade grips.
Remove the two blade grip
screws and the blade grips
can be easily removed.
Reinstall the parts in the
reverse order listed above.
REPLACING THE FLYBAR
❏ Loosen the screws on
both flybar paddle collars.
Rotate the paddles counter
clockwise to remove the
paddle and the collar from
the flybar. Loosen the
screws on the flybar carrier
(both sides). At this point
the flybar can be slid out of
the flybar carrier. Slide the
new flybar into the flybar
carrier and ensure that the
new flybar is centered.
Tighten the flybar carrier
screws and reinstall the paddles. Ensure that the paddles are equal distances
out on the flybar and tighten the flybar paddle collar screws.
