Heli-Max HMXR4854 User Manual
Page 5

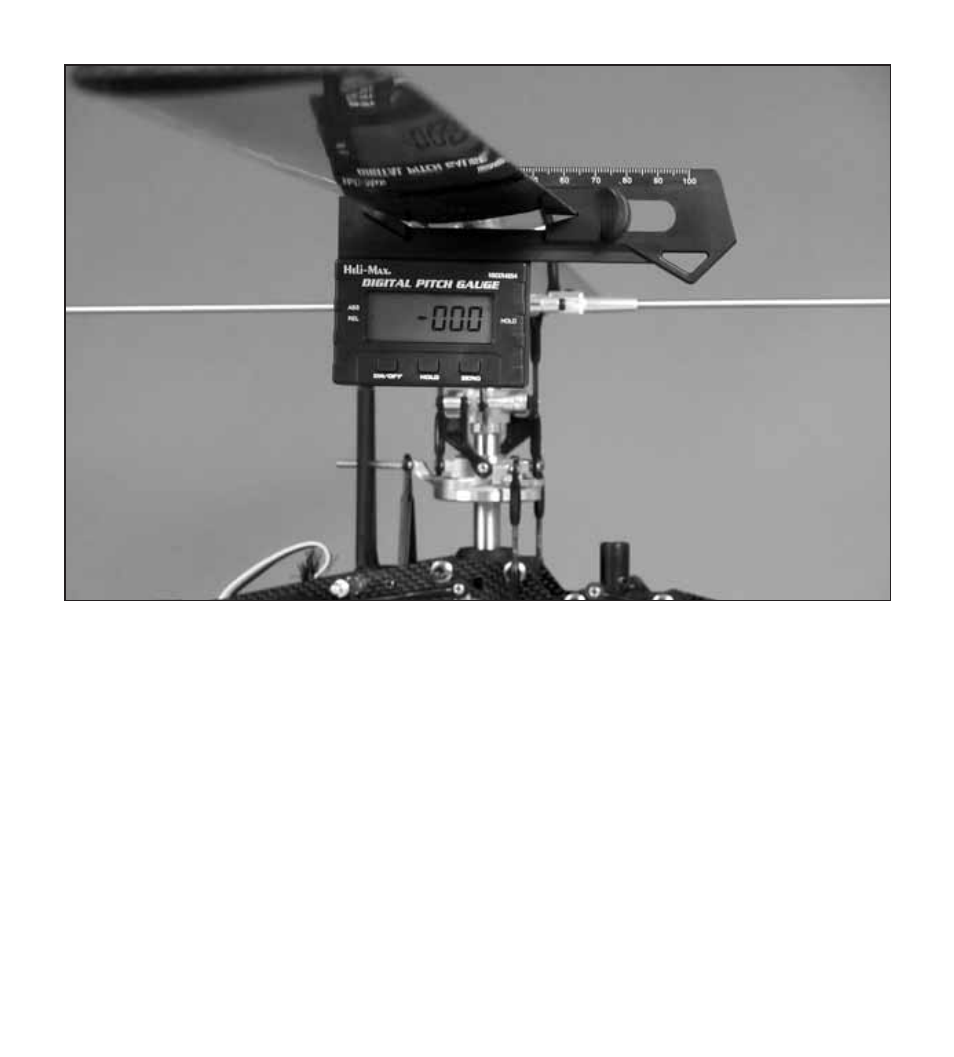

Turn on Pitch Gauge.
Extend both rotor blades so they are 180° apart.
Slide the gauge onto one of the rotor blades. Position the gauge
as close as possible to the blade grip. For maximum accuracy
when checking the pitch of the other blade, position the gauge
the same distance from the blade grip.
