38
Output Edge
This field defines which edge of the signal defines the ignition event: falling or rising.
The EB023 smart igniter uses a falling edge.
Duty Cycle (and will fall after xx% of its period)
This field defines the duty cycle high time when using the constant duty output type
with a smart igniter. For the EB023 smart igniter the duty cycle high time is 30% with
a corresponding 70% low time.
The Ignition Map is adjusted in a similar way to the Fuel Map. The keystrokes are the same,
except that one increment is one whole degree advance or retard. The best way to initially set
up the Ignition Map is to use the Library Maps, and then return to the Ignition Map later if the
ignition curve needs modification. Ignition Library Maps are explained in Chapter 5 [5.4],
Starting the Engine.

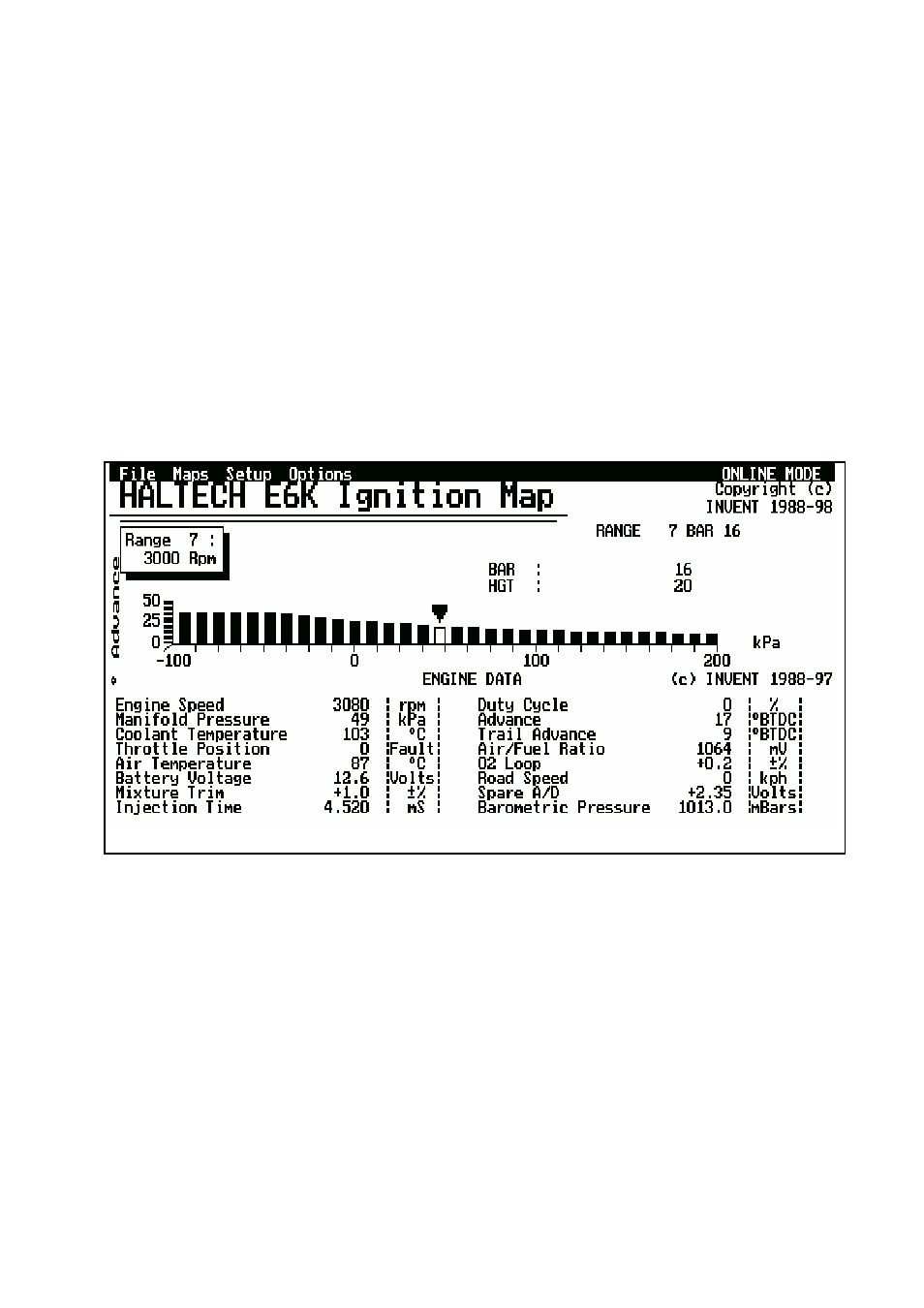

An example of an ignition range for a turbocharged engine could look like this :
