1.14.2 How to Relocate Origin
To relocate the origin to one of the pre-defined locations, send the appropriate
command, listed below under Command Syntax. To change the origin to a specific
user-defined location, follow these steps:
1. Send the command
2. Position the transducer over the desired origin location.
3. Press a button on the transducer to send the new origin location to the system.

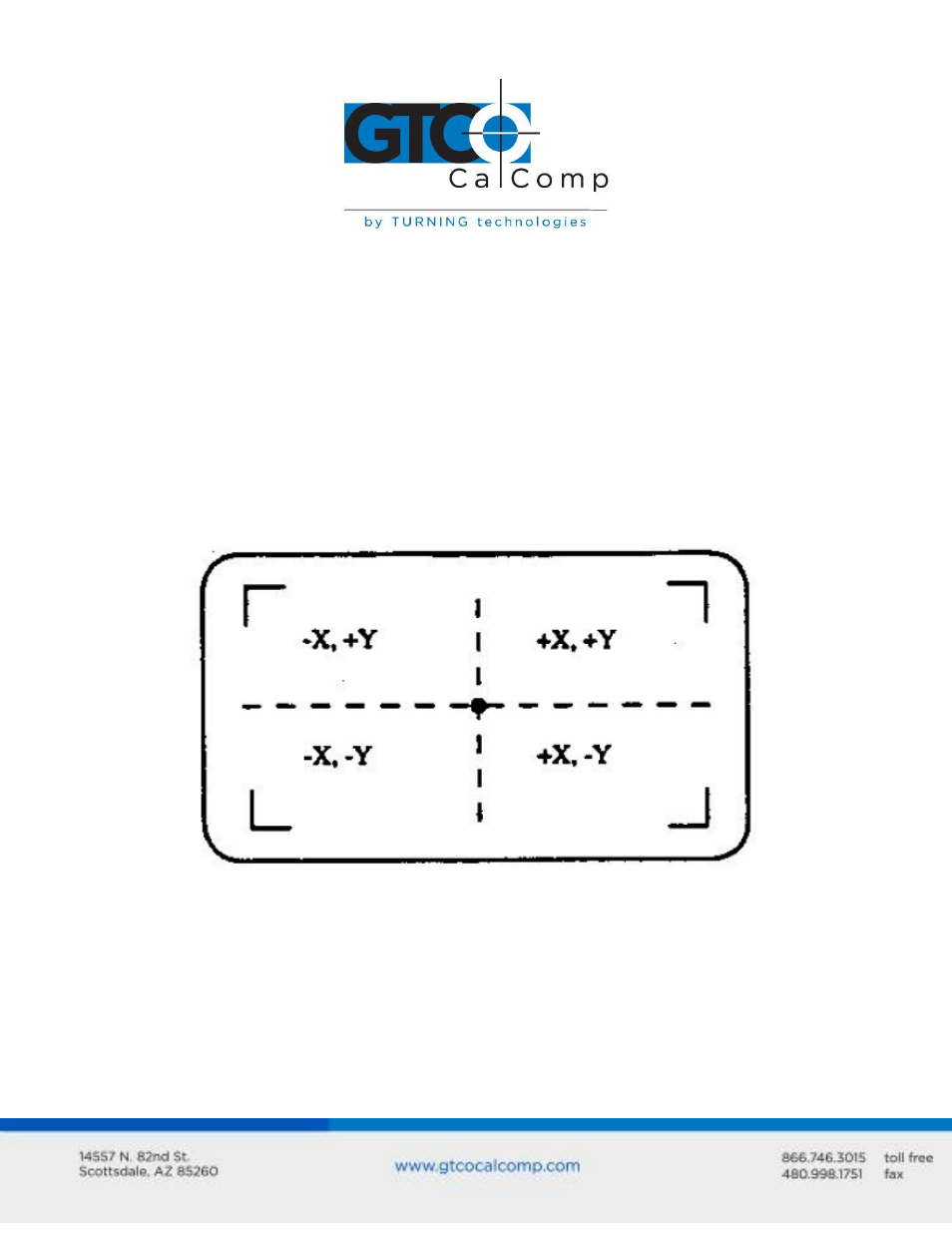

Depending on the origin’s location, coordinates can be positive or negative. For example,
an origin centered on the tablet establishes four quadrants, where both negative and
positive X,Y coordinates can be reported.
1.14.3 Command Syntax
Relocate Origin
lower left corner
user-defined
center
lower right
upper left
upper right
b=0
b=1
b=2
b=4
b=3
b=5
