28

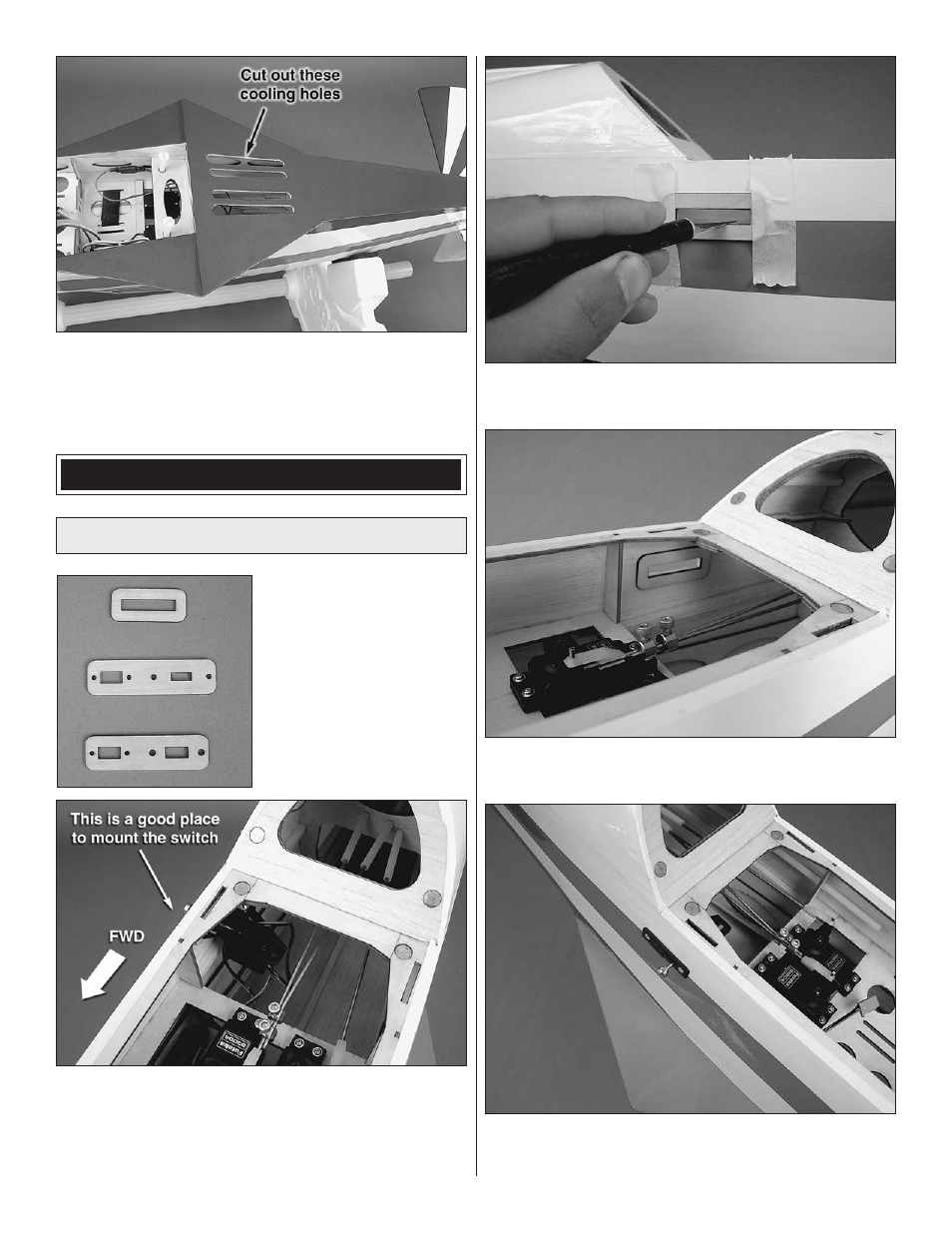

o 5 . The electric setup requires additional cooling through
the battery compartment . Turn your model over and trim
away the covering from the cooling holes in the sheeting of
the fuselage just behind the trailing edge of the wing . There
are four holes .
FINAL ASSEMBLY
Radio Installation
o 1 . Locate the switch and
charge jack plates shown
here . Three options are
provided for you depending
on the type of switch and
charge jack you choose .
o 2 . Choose a place to mount your switch and charge jack
that will not interfere with the servos or radio gear . We chose
to use the Great Planes Switch & Charge Jack Mounting
Set (GPMM1000) . A good place to mount this is on the right
hand side of the fuselage to the right of the elevator servo .
o 3 . Tape the mounting plate to the fuselage side and use it
as a template to cut the holes with your hobby knife .
o 4 . Glue the wooden mounting plate to the inside of the
fuselage aligning it with the holes you just made .
o 5 . Install the switch and the charge connector to the mount
and install the mount to the fuselage .
