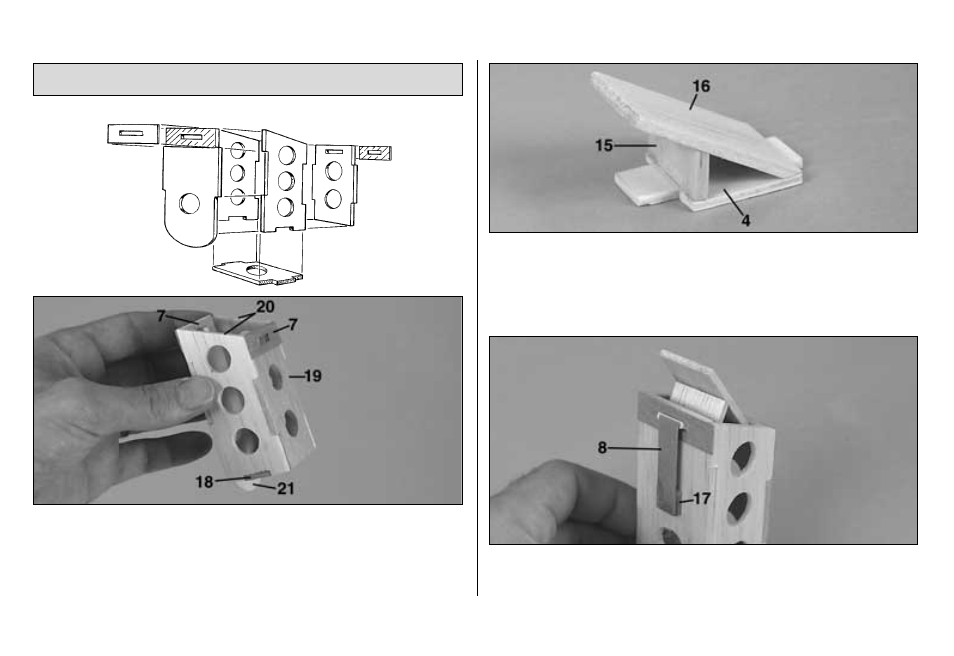

1. Without using any glue, assemble all the 3/32" balsa
parts of the battery holder (7 x 2, 18, 19, 20 x 2, 21) as
shown in the sketch. Once all the parts are joined, use
medium CA to permanently hold them together.
❏
2. Build the battery holder cover from the parts shown
in the photo (4, 15, 16). Before gluing on 16, sand the top of
15
and the bottom of 16 at an angle.
❏
3. Fit the battery holder cover into the battery holder.
Glue the 1/32" plywood tab (8) and the tab mount (17) to
Assemble the Battery Holder
14
