5

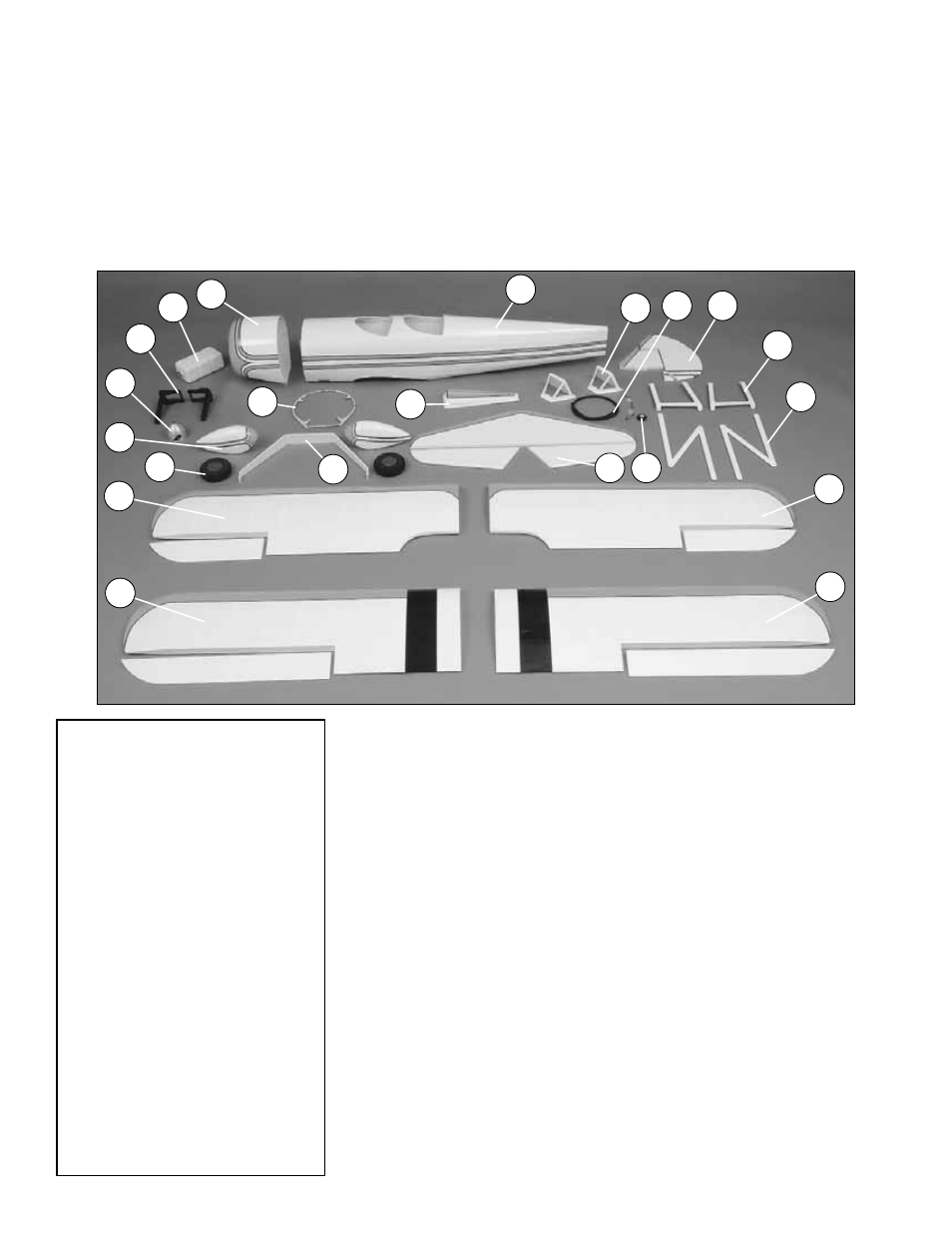

PARTS PHOTOGRAPHED
1. Fuselage
2. Cowl
3. Fin & Rudder
4. Stab & Elevator
5. Top, Left Wing & Aileron
6. Top, Right Wing & Aileron
7. Bottom, Left Wing & Aileron
8. Bottom, Right Wing & Aileron
9. Fuel Tank
10. Engine Mount
11. Spinner
12. Wheel Pants
13. Landing Gear
14. Cowl Ring
15. Wheels
16. Turtle Deck
17. Windshields
18. Cockpit Coaming
19. Tail Wheel Assembly
20. Cabanes
21. Struts
Qty
4-40 Threaded Metal Clevis . . . . . 4
3/16 x 2”Axle . . . . . . . . . . . . . . . . .2
BrassEZConnector . . . . . . . . . . . .1
4-40 Blind Nuts . . . . . . . . . . . . . .20
4-40 Nuts . . . . . . . . . . . . . . . . . . .4
8-32 Blind Nuts . . . . . . . . . . . . . . .9
5/16-24 Axle Nut . . . . . . . . . . . . . .2
1/4-20 Blind Nut . . . . . . . . . . . . . .2
4-40 Nylon Lock Nuts . . . . . . . . . .8
Large Nylon Control Horn . . . . . . .7
Small Nylon Control Horn . . . . . . .4
1/4-20 Nylon Bolt . . . . . . . . . . . . . .2
Nylon Clevis . . . . . . . . . . . . . . . . .7
Nylon Retainer . . . . . . . . . . . . . . .1
2” x 9” Hinge material . . . . . . . . . .1
Faslink . . . . . . . . . . . . . . . . . . . . .7
Clevis Retainer . . . . . . . . . . . . . .11
#4 x 1/2” SMS . . . . . . . . . . . . . . . .4
6-32 x1/4” SHCS . . . . . . . . . . . . . .6
4-40 x 1/8” Set Screw . . . . . . . . . .1
4-40x 1/4”SHCS . . . . . . . . . . . . . .1
#2 x 3/8” SMS . . . . . . . . . . . . . . .28
Qty
8-32 x 3/4” SHCS . . . . . . . . . . . . .5
4-40 x 1/2” SHCS . . . . . . . . . . . .16
4-40 x 1/2” Phillips Head M/S . . . .8
#2 x 3/8” WoodScrew . . . . . . . . . . .8
8-32 x 1-1/4” SHCS . . . . . . . . . . . .4
8-32 x 1”SHCS . . . . . . . . . . . . . . .4
#2 x 1/2” SMS . . . . . . . . . . . . . . . .4
#4 x 1” MS . . . . . . . . . . . . . . . . . .4
3/32” Wheel Collar . . . . . . . . . . . . .1
5/32” Wheel Collar . . . . . . . . . . . . .2
3/16” Wheel Collar . . . . . . . . . . . . .4
1-1/4” Tail Wheel . . . . . . . . . . . . . .1
.074 x 17-1/2”” Pushrod Wire . . . . .1
.074 x 36” Pushrod Wire . . . . . . . .3
.074 x 6” Pushrod Wire . . . . . . . . .4
#4 Lock Washers . . . . . . . . . . . . .16
#4 Flat Washer . . . . . . . . . . . . . .24
#2 FlatWasher . . . . . . . . . . . . . . .10
#8 Lock Washers . . . . . . . . . . . . . .8
#8 FlatWasher . . . . . . . . . . . . . . . .8
4-40 x 3/4” SHCS . . . . . . . . . . . . .4
Parts Layout
Before starting to build, take an inventory of this kit to make
sure it is complete, and inspect the parts to make sure they
are of acceptable quality. If any parts are missing or are not
of acceptable quality, or if you need assistance with
assembly, contact Product Support. When reporting
defective or missing parts, use the part names exactly as
they are written in the Kit Contents list on this page. Great Planes Product Support
3002 N Apollo Drive, Suite 1
Champaign, IL 61822
Telephone: (217) 398-8970, ext. 5
Fax: (217) 398-7721
E-mail: [email protected]
13 15 19
17 9
10
6
20
21
4
5
11
12
1
3 18
2
8
7
14 16
PARTS NOT PHOTOGRAPHED
KIT INSPECTION
