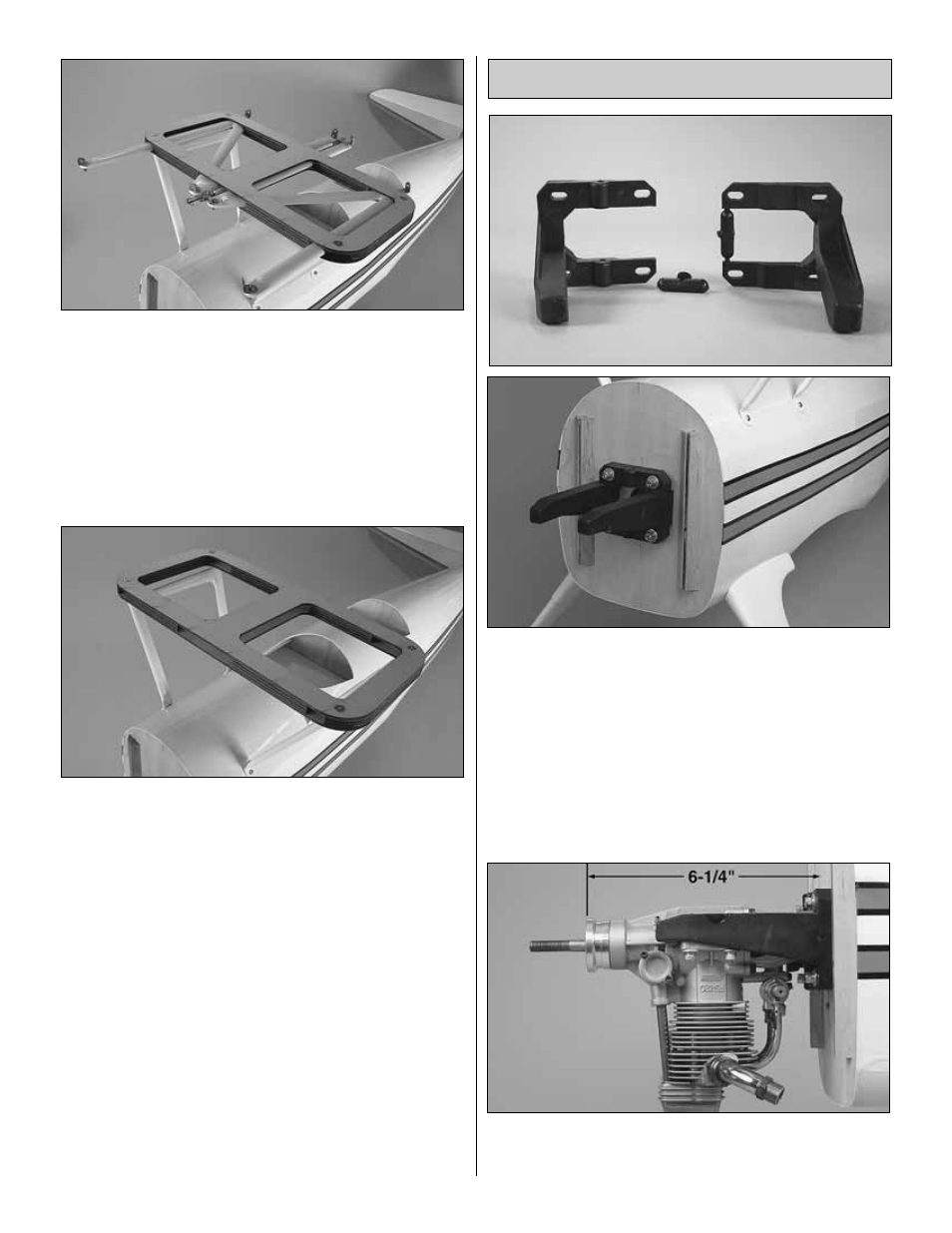

7. Place the two “N” struts into the handle and the two
aileron connecting rods between the struts. Put the handle
top onto the part of the handle holding the struts and place
the completed handle on top of the cabanes. Secure the
handle to the cabanes with four 4-40 x 3/4" [19mm] socket
head cap screws and #4 flat washers. This is how the
completed handle looks when you are storing the parts or
taking the plane to the field.
❏
8. For the following building steps it will be better to
remove everything from the handle. Do this now and secure
the empty handle to the cabanes.
Did you know? ...The primary differences between the
“Super Stearman” and the original wartime Stearmans are
the larger 450 horsepower Pratt and Whitney engine,
additional flying and landing wires, the installation of two
additional ailerons on the top wing, cowl and wheel pants!
❏
1. Cut the tabs from the engine mount. Install the engine
mount (inverted) to the firewall with four 8-32 x 1-1/4" [32mm]
socket head cap screws, #8 flat washers and #8 lock washers.
❏
2. Position the engine on the mount so the distance from
the firewall to the front of the thrust washer measures 6-1/4"
[159mm]. Mark the location of the engine on the mount. The
Great Planes
® Dead Center ™ Hole Locator (GPMR8130)
works well for this. Drill through the marks you have made
on the engine mount with a #29 or 9/64" [3.6mm] drill bit. Tap
each of the holes with an 8-32 tap.
❏
3. Install the engine onto the mount with four each, 8-32
x 1" [25mm] socket head cap screws, #8 flat washers and
# 8 lock washers.
Install the Engine & Throttle Servo
20
