INSTALLATION INSTRUCTIONS
Fixture Name: Tetiva 8201-1W BLK/SLV
For Customer Service, Contact the Place of Purchase to arrange for Replacement Parts.
For Wall Mount Light Fixture
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

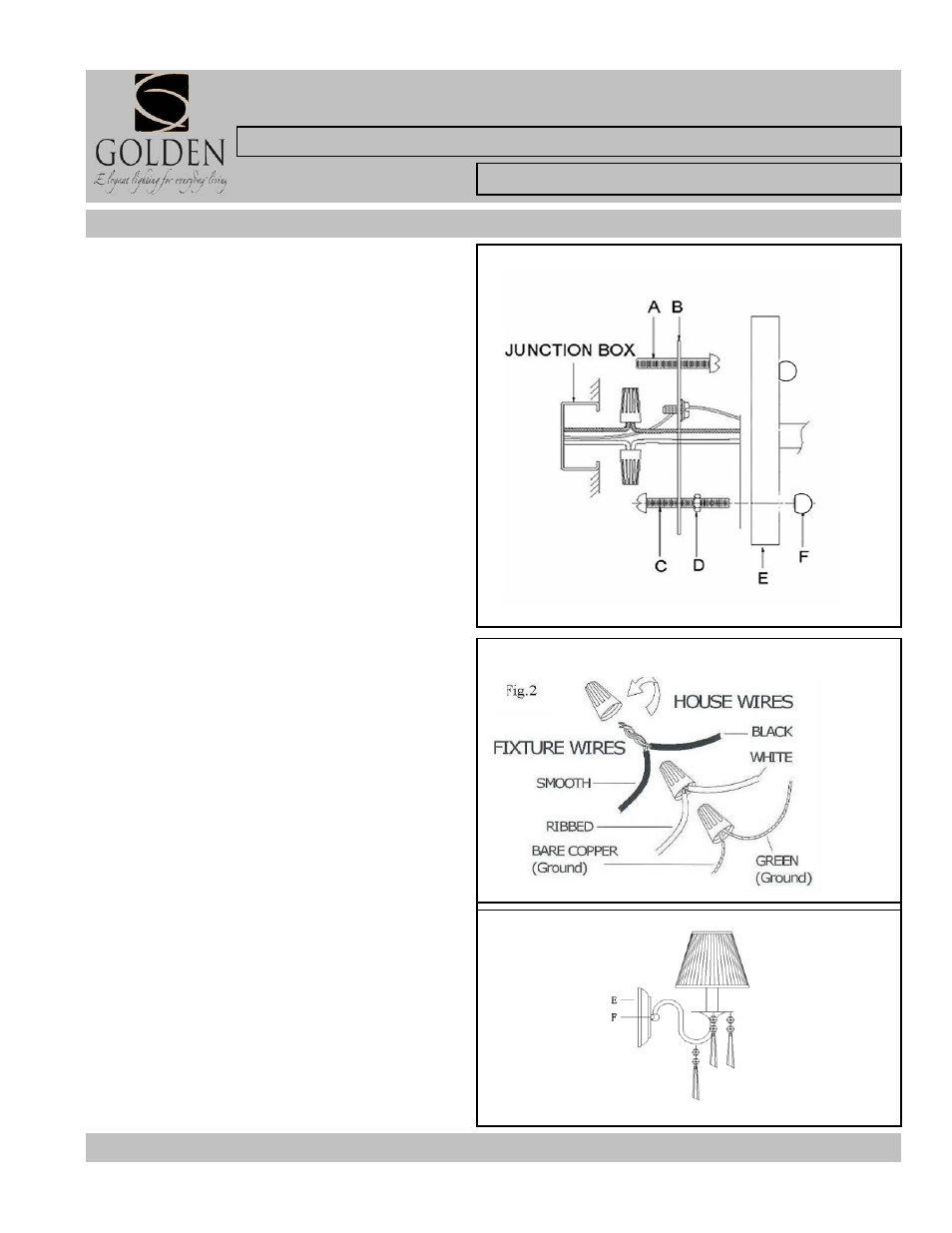

FINISHING THE INSTALLATION (Fig 3)
9. Place the Back Plate (E) over the two Mounting
Screws (C). Secure the Back Plate (E) against the wall
by threading Deco nuts (F) over the Mounting Screws
(C) until tight as shown on Fig.1
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX AND
TEST THE FIXTURE.
Fig. 3
HANGING THE FIXTURE (Fig 1)
1. Carefully remove the new fixture from the carton and
the yellow bag that holds all your parts. Check that all
parts are included as shown in the illustration and Parts
List.
2. Shut off power at the circuit breaker and completely
remove the old fixture from wall, including the old
mounting strap.
3. Mounting Strap (B) contains several pairs of
threaded holes. Find the pair of holes that matches the
holes spacing in your fixture Back Plate (E) and thread
Fixture Mounting Screws (C) half way into the Fixture
Mounting Strap (B).
4. Place the Mounting Strap (B) over the Junction Box
so that Fixture Mounting Screws (C) are vertical or
horizontal, as required by the fixture type.
5. Attach the Fixture Mounting Strap (B) to the Junction
Box using Mounting Screws (A). Tighten the screws
securely with screwdriver. Fig. 1
CONNECTING THE WIRES (Fig 2)
6. Attach the power supply wires to the fixture lead
wires by connecting BLACK to BLACK (or SMOOTH)
and WHITE to WHITE (or RIBBED).
7. Attach the ground wire (GREEN or COPPER) from
the Junction Box and the fixture ground wire to the
green Ground Screw on the Mounting Bracket (B) or
connect both wires together using the correct size of
wire connectors.
NOTE: Twist the wires together in the same direction
that you twisted the wire connector onto the wires.
8. Tuck these wire connections neatly into the Junction
Box. Fig. 2
