For Customer Service, contact the place of purchase to arrange for replacement parts.
CSA063902W ALG2

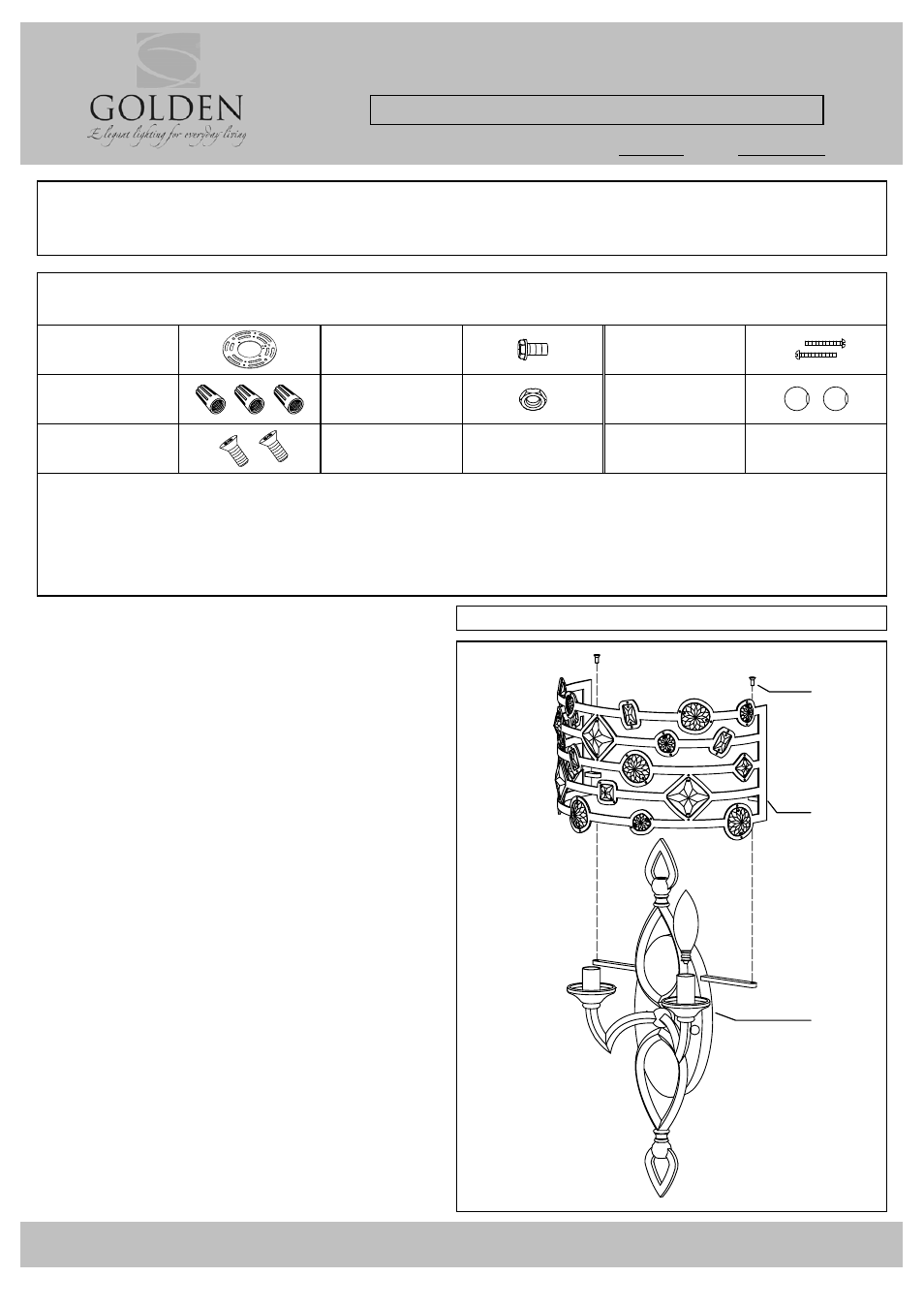

PARTS & ASSEMBLY SHEET
This fixture assembled PO: Date:
Fixture Name: CORONADA 6390-WSC WG
Notice: Please review the parts listing and check for all parts before assembling the fixture. If
any parts are missing or damaged, please note on this sheet and contact the place of
purchase to arrange for replacement parts.
PARTS LIST
Company Name:______________________Co Account#:__________
below to be filled out by retailer
Mounting Strap
Φ
102 ㎜ 1ea
Green Screw
G8/32*H8 ㎜ 1ea
Mounting Screws
H32 ㎜ 2ea H38 ㎜ 2ea
Wire Connectors
Orange 3ea Hex Nut
G5/32*H4 ㎜ 2ea
Deco Nut
Φ
12 ㎜ 2ea
Screws
H8 ㎜ 2ea
Part Needed ______________________________ Quantity _________________________________
Part Needed ______________________________ Quantity _________________________________
Reason why (missing, scratched, broken glass, bent, bad finish)
Comments __________________________________________________________________________
6390-WSC WG
FIXTURE ASSEMBLY INSTRUCTIONS
Read and review installation instruction sheet
before assembling the fixture
1. Place the Frame (F) on the Back Plate (D) secure
with Screws (G).
2. Install the light bulbs in accordance with the
fixture's specification.
(DO NOT EXCEED THE MAXIMUM WATTAGE RATING!)
NOTE: INSTALL THE GLASS ASSEMBLY
AFTER FIXTURE IS HUNG.
Fig.4
D
F
G
