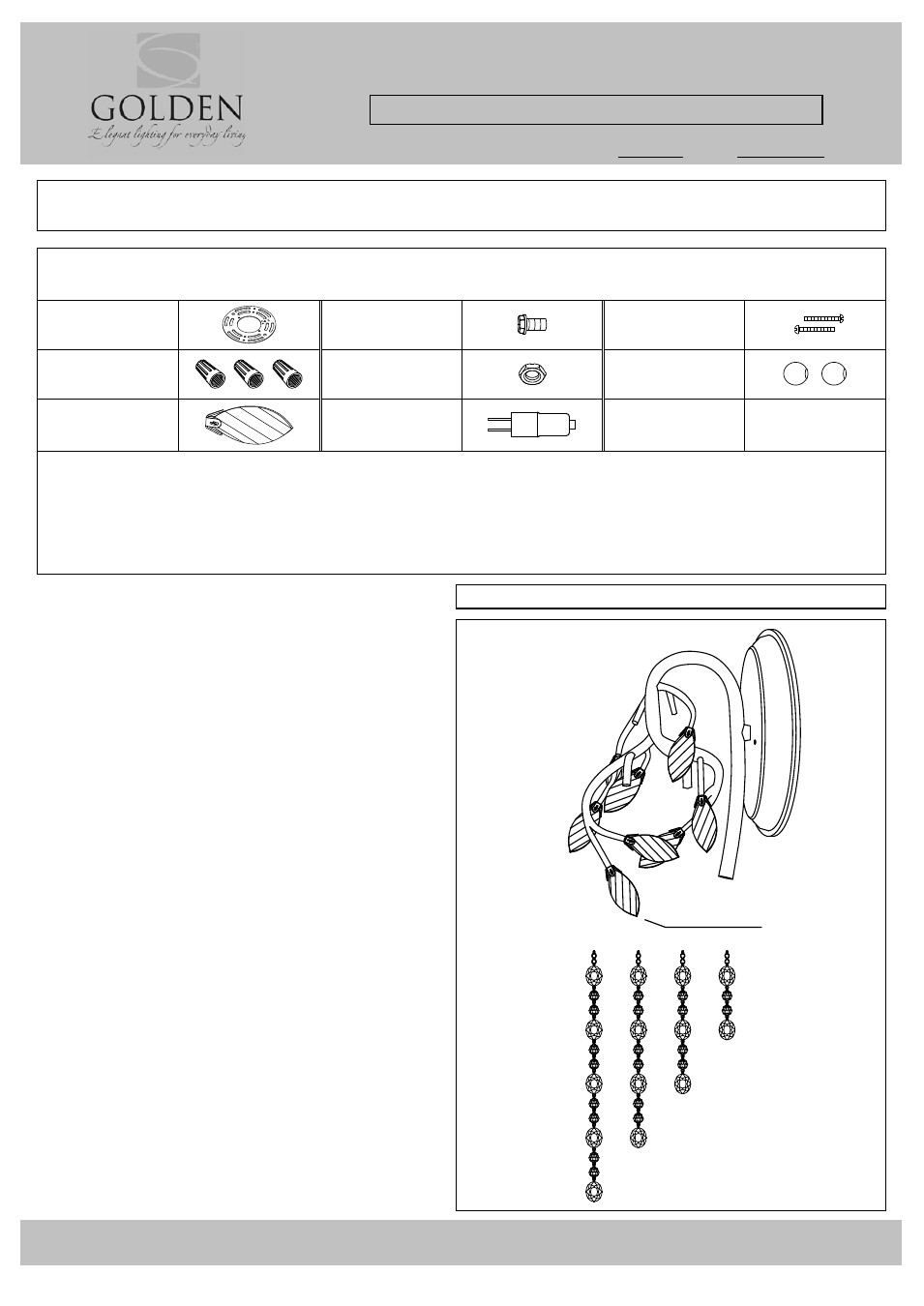

PARTS & ASSEMBLY SHEET
This fixture assembled PO: Date:
Fixture Name: AUTUMN TWILIGHT 9903-WSC MG
Notice:
Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or
damaged, please note on this sheet and contact the place of purchase to arrange for replacement parts.
PARTS LIST
Company Name:______________________Co Account#:__________
below to be filled out by retailer
Mounting Strap
Φ
102 ㎜ 1ea
Green Screw
G8/32*H8 ㎜ 1ea
Mounting Screws
H32 ㎜ 2ea H38 ㎜ 2ea
Wire Connectors
Orange 3ea
Hex Nut
G5/32*H4 ㎜ 2ea
Deco Nut
Φ
12 ㎜ 2ea
Crystal Leaf
PT-CRYSTAL-9903 LEAF
8ea W27*H65 ㎜
Bulbs
3ea Halogen,
Type G4 20W
Part Needed ______________________________ Quantity _________________________________
Part Needed ______________________________ Quantity _________________________________
Reason why (missing, scratched, broken glass, bent, bad finish)
Comments __________________________________________________________________________
FIXTURE ASSEMBLY INSTRUCTIONS
Read and review installation instruction sheet
before assembling the fixture
9903-WSC MG
Fig.1
1. Open bag on the arm and carefully arrange the
bead strings.
2. Screw Crystal Leaf (A) on the arm.
Hold carefully by the metal base to prevent the
crystal from cracking.
3. Install the light bulbs in accordance with the
fixture's specification.
Bulb note: Use a tissue or paper towel to hold the
bulb and push down into socket. Oils or dirt can
cause the bulb life to shorten. Rubbing alcohol is
recommended to clean the bulbs if dirty.
(DO NOT EXCEED THE MAXIMUM WATTAGE RATING!)
NOTE: INSTALL THE GLASS ASSEMBLY
AFTER FIXTURE IS HUNG.
A
4 PCS 8 PCS 2 PCS 6 PCS
