For Customer Service, contact the place of purchase to arrange for replacement parts.
CSA055318H ALG1

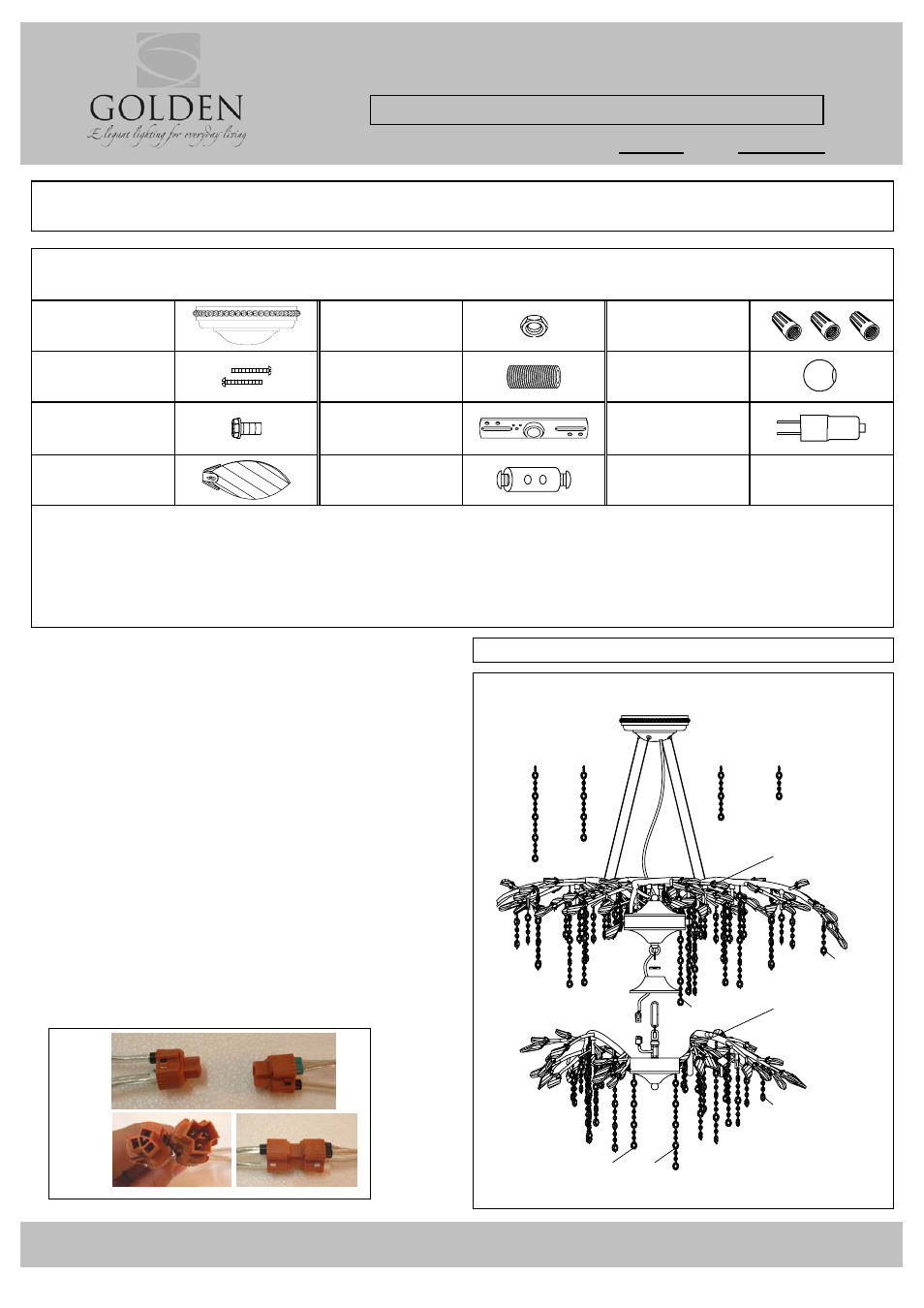

PARTS & ASSEMBLY SHEET
This fixture assembled PO: Date:
Fixture Name: AUTUMN TWILIGHT 9903-18 MG
Notice:
Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or
damaged, please note on this sheet and contact the place of purchase to arrange for replacement parts.
PARTS LIST
Company Name:______________________Co Account#:__________
below to be filled out by retailer
Canopy
1ea Φ175*H65 ㎜
Hex Nut
1ea NPS-1/4-18 Wire Connectors
3ea Orange
Mounting Screws
2ea G8/32*H32 ㎜
Nipple
1ea NPS 1/4-18*90 ㎜
Deco Nut
1ea Φ19 ㎜
Green Screw
1ea G8/32*H8 ㎜
Mounting Strap
1ea W103*T2.0 ㎜
Bulbs
18ea Halogen,
Type G4 20W
Crystal Leaf
PT-CRYSTAL-9903 LEAF
123ea W27*H65 ㎜
Cable Lock
4ea W16*H8 ㎜
Part Needed ______________________________ Quantity _________________________________
Part Needed ______________________________ Quantity _________________________________
Reason why (missing, scratched, broken glass, bent, bad finish)
Comments __________________________________________________________________________
9903-18 MG
FIXTURE ASSEMBLY INSTRUCTIONS
Read and review installation instruction sheet
before assembling the fixture
1. Open bag on the arm and carefully arrange the
bead strings.
2. Connect top terminal block and bottom terminal
block by referring to Fig.4.
3. Connect top body and bottom body for chain.
4. Screw Crystal Leaf (E) on the arm.
Hold carefully by the metal base to prevent the
crystal from cracking.
5. Install the light bulbs in accordance with the
fixture's specification.
Bulb note: Use a tissue or paper towel to hold the
bulb and push down into socket. Oils or dirt can
cause the bulb life to shorten. Rubbing alcohol is
recommended to clean the bulbs if dirty.
DO NOT EXCEED THE MAXIMUM WATTAGE RATING!)
Fig.3
Fig.4
C-12pcs
C-6pcs D-6pcs
Fig.(A)
Fig.(B)
D
(51pcs)
C
(85pcs)
B
(96pcs)
A
(68pcs)
E
(72pcs)
E
(51pcs)
2
1 3
