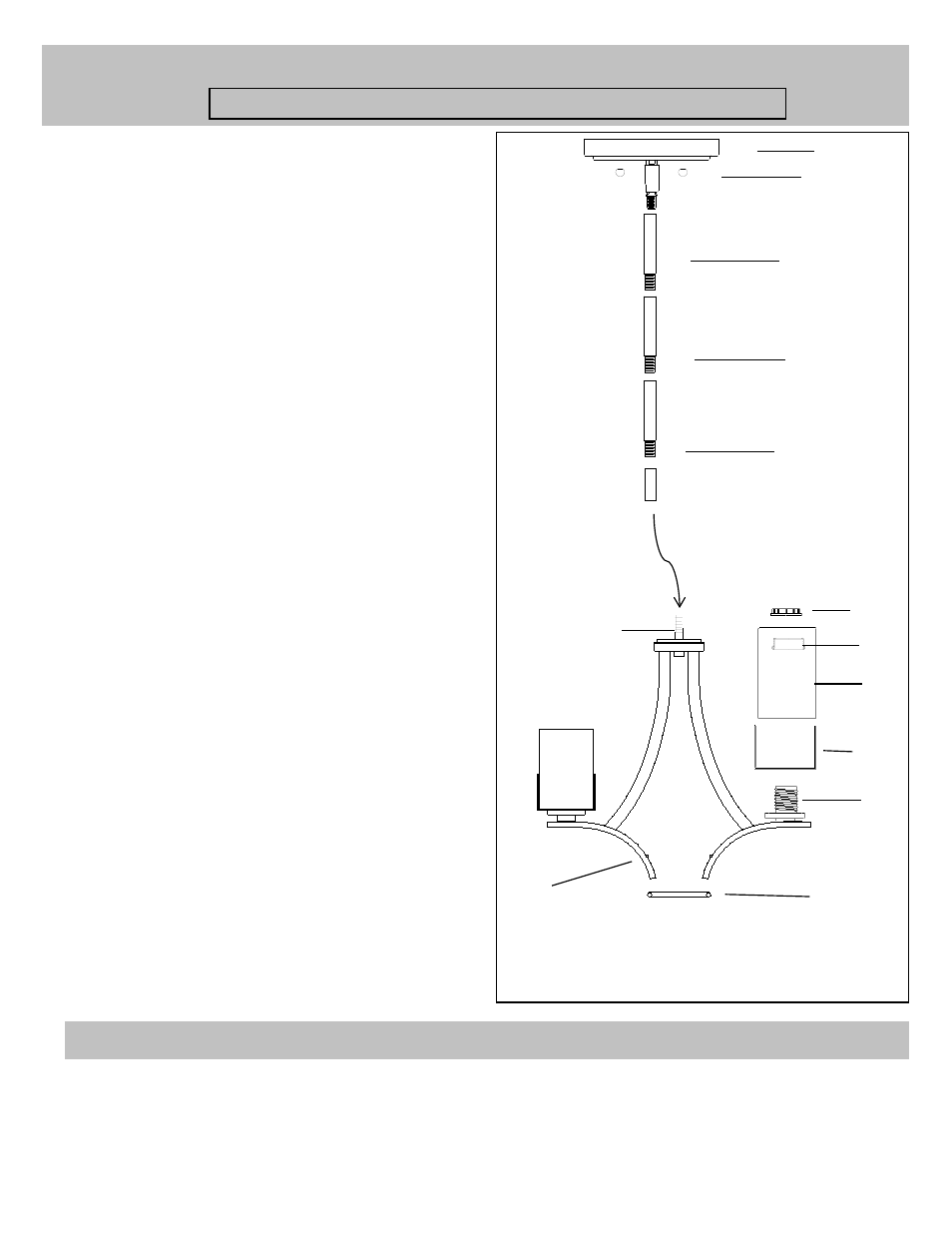

PARTS & ASSEMBLY SHEET
continued
Fixture Name: Presilla 9363-5 GMT
G
H
I
J
F
K
N
O
L
M
Q
P
3. Pull the fixture’s wire through the Rods.
4. Thread Rod (J) into Frame (K) until tight.
5. Thread Rod (I) into Rod (J) until tight. repeat for
any additional rods.
6. Feed the fixture wires through the Canopy (G) and
pull the wires until taut.
7. Thread Canopy (G) into Rod (H) until tight.
* You may now install the fixture.
Note: Complete these remaining steps after the
fixture is hung.
8. Place the U Iron Clip (N)"OSRING" over the Socket
(O).
9. Slide the Glass Shade (L) over Socket (O) and
secure it by threading the White Ring(M-1) and
Socket Ring (M) onto the Threaded Socket (O) until
tight.
10. Place the Metal ring (Q) onto the small nipple (P)
on the inner side of the fixture frame. The fixture
arms can be adjusted to their correct positions to
meet these points.
11. Install the light bulbs in accordance with the
fixture's specification.
(DO NOT EXCEED MAXIMUM WATTAGE RATING!)
M-1
