WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

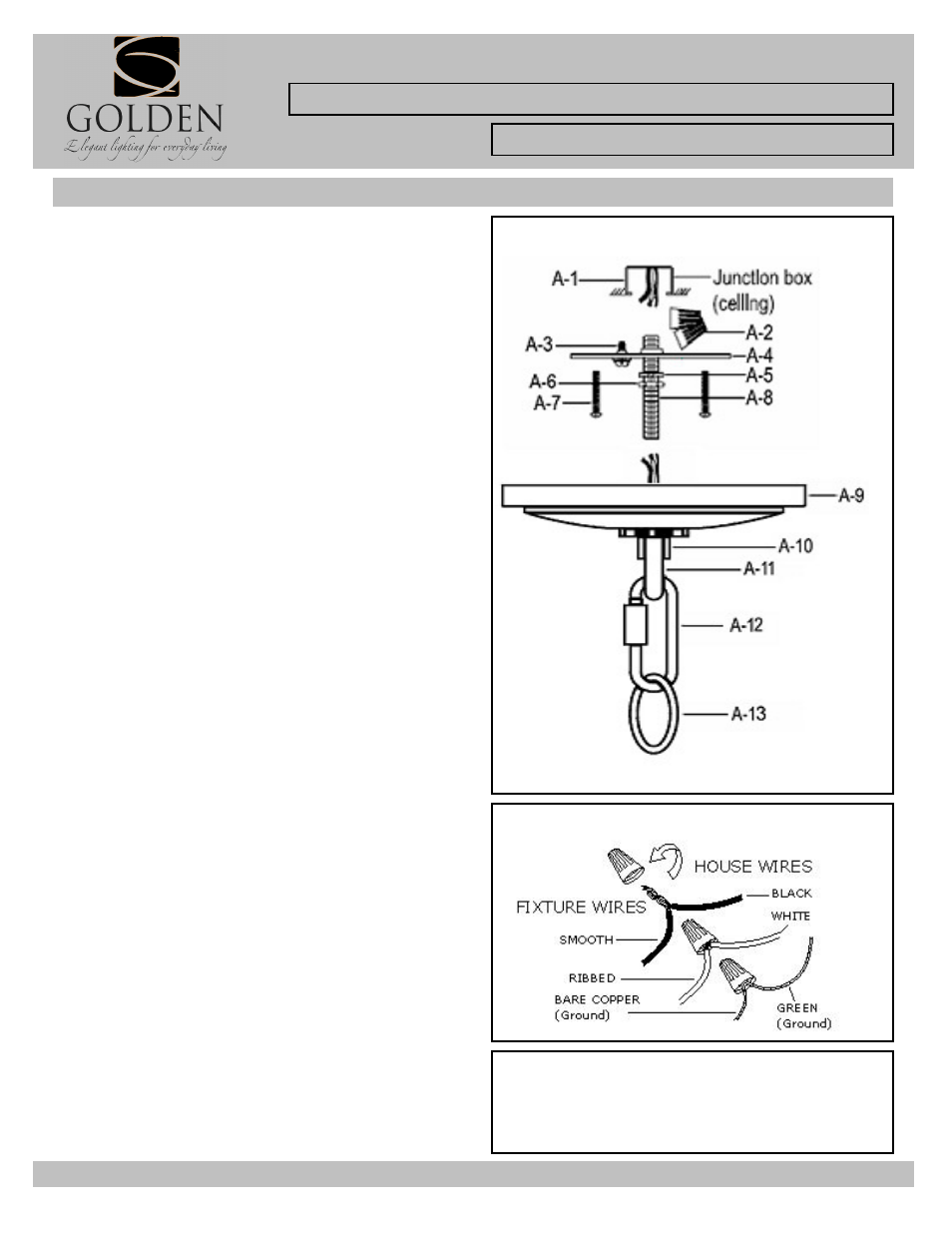

HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new fixture from the carton and the yellow
bag that holds all parts. Check that all parts are included as
shown in the illustration and parts list.
2. Shut off the power at the circuit breaker and remove old fixture
from ceiling, including the old mounting strap.
3. Thread Nipple(A-8) into Canopy loop (A-11) until snug. Thread
Hex nut (A-6) and Washer (A-5) on next.
4. Thread other end of the Nipple (A-8) with Canopy loop attached
into Mounting strap (A-4)about 4 complete turns.
5. Tighten the Washer (A-5)and Hex Nut (A-5) until snug to the
Mounting strap(A-4).
6. Take this mounting strap assembly and mount to ceiling
junction box with Mounting Screws (A-7). Tighten screws securely
with screw driver.
Fig. 1
CONNECTING THE WIRES (Fig 2)
10. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to
WHITE (or RIBBED).
11. Attach the GROUND wire(GREEN or COPPER) from the
Junction Box and the fixture Ground wire to the green Ground
Screw on the Mounting Bracket (A-4) or connect both wires
together using the correct size of wire connectors.
NOTE: Twist the wires together in the same direction you twist
the wire connector onto the wires.
12. Tuck these wire connections neatly into the Junction Box.
Fig. 2
FINISHING THE INSTALLATION
13. Raise Canopy (A9) to the ceiling and secure in place by
tightening the Canopy loop collar(A11) onto the Canopy Loop(10)
14. Install the light bulbs and shade as per the fixture assembly
sheet.
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX AND
TEST THE FIXTURE.
For Customer Service, contact the place of purchase to arrange for replacement parts.
7. Unscrew the Canopy loop collar(A-10)from the Canopy loop.
Take the canopy and pass over the Canopy loop. approximately
one half of the canopy loop exterior threads should be exposed.
Adjust until desired height is reached. *the Canopy loop collar
should fit snugly on the Canopy loop after the canopy is installed.
Remove Canopy and Canopy loop collar.
8. Assemble the fixture and have an assistant or secure support
hold the weight of the fixture while you complete the wiring
connections.
9.Thread the fixture wires and ground wire of the assembled
fixture through the canopy loop and nipple and into the outlet box.
INSTALLATION INSTRUCTIONS
Fixture Name: Echelon 8981-3P, 5, 9, M1L BRI / GRM
For Chandelier Light Fixture
