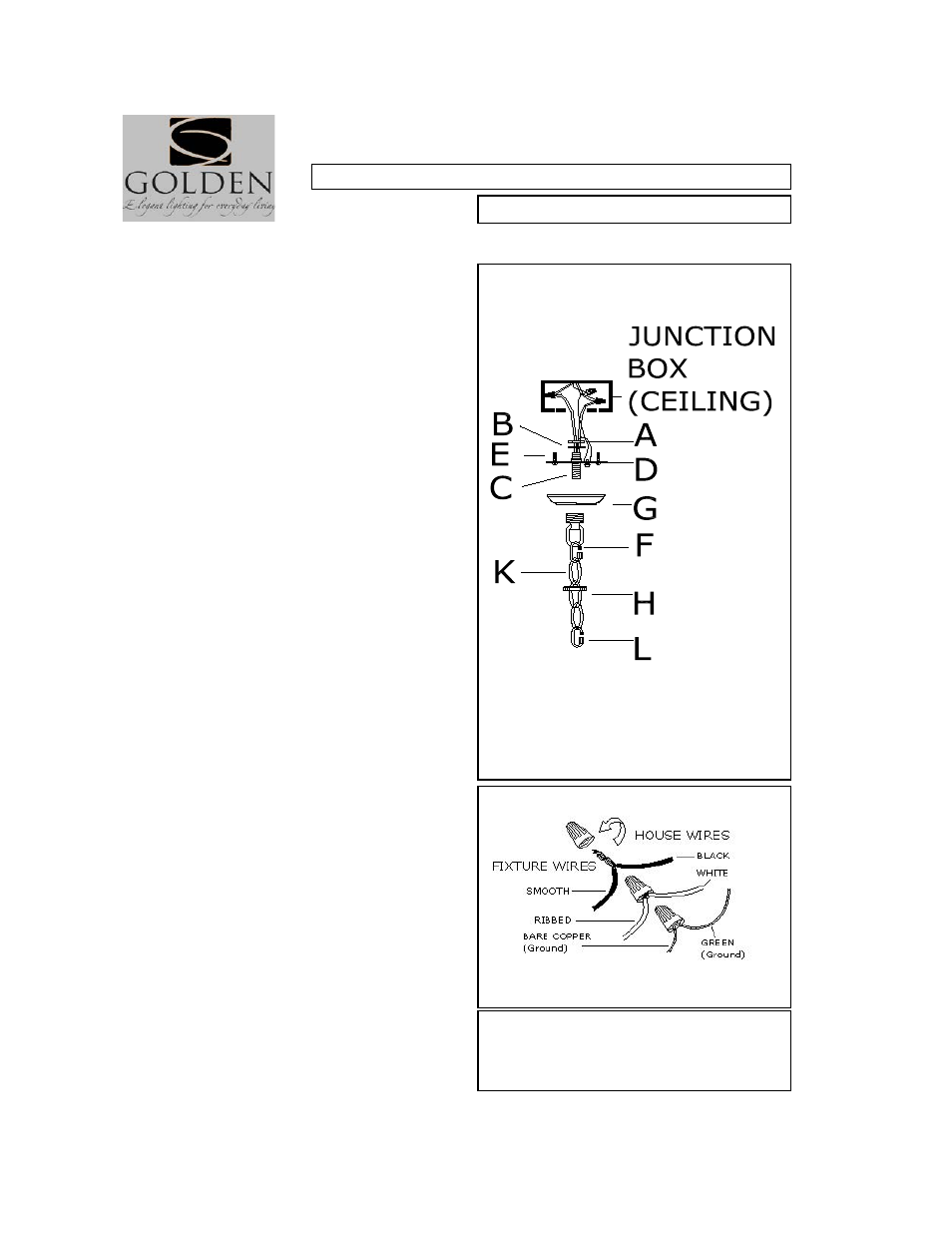

HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new fixture from the carton and the
yellow bag that holds all parts. Check that all parts are included
as shown in the illustration and the Parts and Assembly Sheet.
2. Shut off the power at the circuit breaker and completely
remove the old fixture from ceiling, including the old mounting
strap.
3. Thread Nipple (C) into Canopy Loop (F) until snug.
4. Thread the other end of the Nipple (C) with the canopy loop
attached into Mounting Strap (D).
5. Place Lock Washer (B) over end of Nipple (C) which should
protrude through Mounting Strap (D). Then thread Hex Nuts (A)
onto Nipple (C) until tight.
6. Take this mounting strap assembly and mount to ceiling junction
box with junction box Screws (E). Tighten the screws securely with
a screw driver.
Fig. 1
7. Unscrew the Canopy Loop Collar (H ) from the canopy loop.
Take the canopy and pass over the canopy loop. Approximately
one half of the canopy loop exterior threads should be exposed.
Adjust until desired height is reached. *The Canopy loop collar
should fit snugly on the canopy loop after the canopy is installed.
Remove Canopy and Canopy lock collar.
8. Assemble the fixture and have an assistant or a secure support
to hold the weight of the fixture while you complete the wiring
connections.
9.Thread the fixture wires and ground wire of the assembled fixture
through the canopy loop and nipple and into the outlet box.
CONNECTING THE WIRES (Fig. 2)
10. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to WHITE ( or
RIBBED) .
11. Ground wire connection: Connect the fixture ground wire to
house ground wire, which usually has green or copper insulation,
with the correct size of wire connector. If there is no house ground
wire at ceiling junction box then attach fixture ground wire
securely onto green grounding screw located on the mounting
bar.
NOTE: Twist the wires together in the same direction that you
twisted the wire connector onto the wires.
12. Tuck the wire connections neatly into the Junction Box. Fig. 2
INSTALLATION INSTRUCTIONS
Fixture Name: Tetiva 8201-5/5P/SF/ BLK/SLV
For Chandelier Light Fixture
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
13. Raise Canopy (G) to the ceiling and secure in place by
tightening the Canopy loop collar (H) into the Canopy Loop (F)
14. Install the light bulbs and glass shade as per the fixture
assembly sheet.
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX AND
TEST THE FIXTURE.
