8118-FMPartsInstallation_20111118m.xlsx
ROD
1ea ∅1-1/2"*H5mm 1ea 1/8-IP*H45mm 1ea 1/8-IP*H122mm
Mounting
Screws
1ea ∅1-1/4"*H49mm 3ea P3 Orange
Hex Nut
3ea P3 Orange
1ea ∅1"*H3mm
Part Needed Quantity
Part Needed Quantity
Reason why ( missing, scratched, broken glass, bent, bad finish)
Comments
For Customer Service, contact the place of purchase to arrange for replacement parts.
1ea ∅1-1/2*H2mm
Hex Nut Rubber Washer
1ea 1/8-IP*H4mm 1ea ∅1-1/2*H2mm

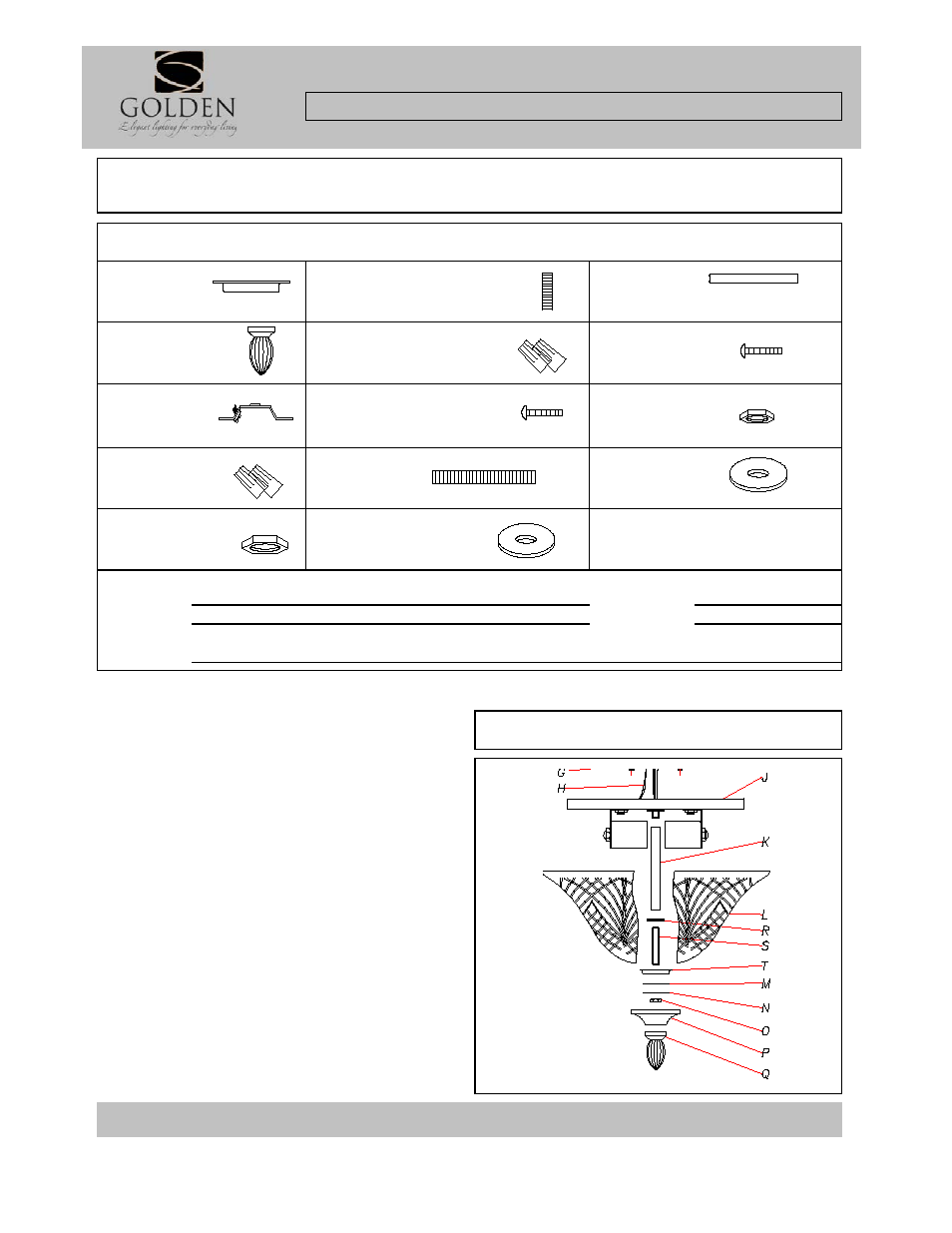

F IXTURE A SSEMBLY I NSTRUCTIONS
Read and review installation instruction sheet before
assembling the fixture.
8118-FM BUS
1. Thread the Nipple (K) into the fixture pan coupling (J).
2. Install the light bulbs in accordance with the fixture's
specifications.
3. Thread Nipple (S) into Rod (K). Slide Flat Washer (R)
and Glass (L) onto Nipple (S). Then put Cap (T), Rubber
Washer (M), and Flat washer (N) onto Nipple (S).
4. Thread Hex Nut (O) onto Nipple (S) to secure.
5. Slide Canopy (P) onto Nipple (S). Secure with Finial (Q).
DO NOT EXCEED MAXIMUM WATTAGE RATING!
Fig 4
NOTE: I NSTALL THE GLASS ASSEMBLY AFTER
THE FIXTURE IS HUNG.
1ea ∅4"*H10mm 2ea 8#32-IP*1" 2ea 5/32-IP*H3mm
Wire connectors
Nipple
Flat washer
Mounting Strap Mounting Screws
PARTS & ASSEMBLY SHEET
Fixture Name: Alston Place 8118-FM BUS
This fixture assembled PO:__________ Date: ________
Notice: Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or
damaged, please note on this sheet and contact the place of purchase to arrange for replacement parts.
PARTS LIST
Company Name:_______________________Co. Account #:_____________
to be filled out by retailer
Canopy Nipple
Finial Wire connectors
2ea 8#32-IP*1-1/2"
