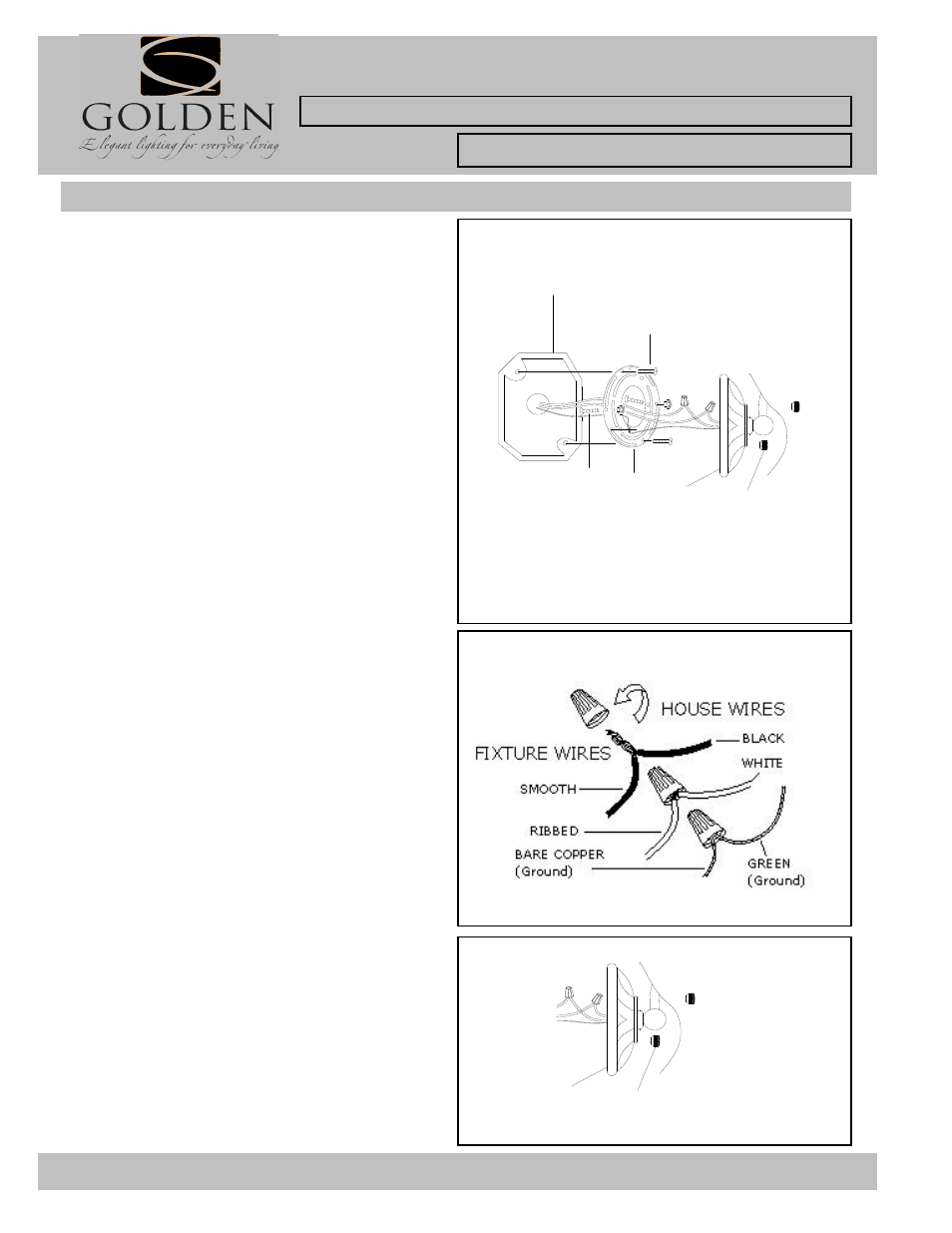

HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new fixture from the carton
and the yellow bag that holes all your parts. Check
that all parts are included as shown in the illustration
and parts list.
2. Shut off power at the circuit breaker and remove
the old fixture from wall, including the old mounting
strap.
3.The Mounting Strap(A) contains several pairs of
threaded holes, find the pair of holes that match the
holes spacing in your fixture Back Plate(D) and
thread the two Mounting Screws(C) half way into the
Mounting Strap(A).
4. Place the Mounting Strap(A)over the Junction Box
so the Mounting Screws(C) are vertical or horizontal,
as required by fixture type.
5. Attach the Mounting Strap(A) to the Junction Box
using the two mounting screws(B). Tighten the
screws(B) securely with screw driver.
CONNECTING THE WIRES (Fig 2)
6. Attach the power supply wires to the fixture lead
wires by connecting BLACK to BLACK (or
SMOOTH) and WHITE to WHITE (or RIBBED).
7. Attach the GROUND wire(GREEN or COPPER)
from the Junction Box and the fixture Ground wire to
the green Ground Screw on the Mounting Bracket
(B) or connect both wires together using the correct
size of wire connectors.
- NOTE:Twist the wires together in the same
direction you twist the wire connector onto the wires.
8. Tuck these wire connections neatly into the
Junction Box.
FINISHING THE INSTALLATION (Fig.3)
9. After tucking these wire connections neatly into
the Junction Box and place the fixture Back Plate(D)
over the two Mounting Screws(C) and secure the
Back Plate(D)against the wall by threading two Deco
Nuts(E) over the two Mounting Screws(C) until tight
as shown on Fig.1.
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX AND
TEST THE FIXTURE.
Fig. 3
Fig. 1
Fig. 2
For Wall Mount Light Fixture
INSTALLATION INSTRUCTIONS
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
Fixture Name: Torbellino 8106-BA4 CDB
JUNCTION BOX
B
A C
D E
D E
