Golden Lighting 8106-BA3 CDB - Manual (Page 2)

For Wall Mount Light Fixture
INSTALLATION INSTRUCTIONS
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
Fixture Name: Torbellino 8106-BA3 CDB

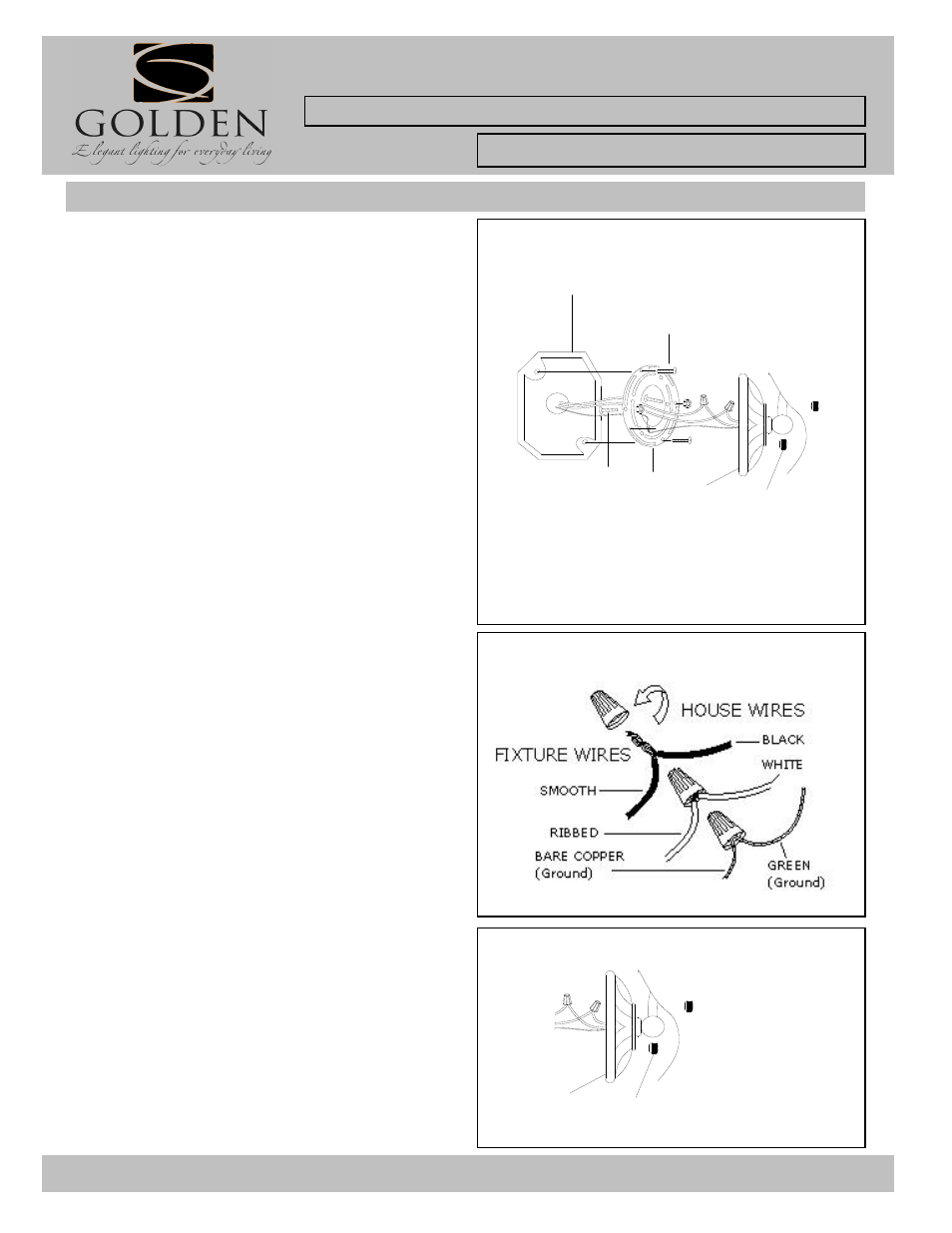

Fig. 3
Fig. 1
Fig. 2
For Customer Service, contact the place of purchase to arrange for replacement parts.
HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new fixture from the carton
and the yellow bag that holes all your parts. Check that
all parts are included as shown in the illustration and
parts list.
2. Shut off power at the circuit breaker and remove the
old fixture from wall, including the old mounting strap.
3.The Mounting Strap(A) contains several pairs of
threaded holes, find the pair of holes that match the
holes spacing in your fixture Back Plate(D) and thread
the two Mounting Screws(C) half way into the
Mounting Strap(A).
4. Place the Mounting Strap(A)over the Junction Box
so the Mounting Screws(C) are vertical or horizontal,
as required by fixture type.
5. Attach the Mounting Strap(A) to the Junction Box
using the two mounting screws(B). Tighten the
screws(B) securely with screw driver.
CONNECTING THE WIRES (Fig 2)
6. Attach the power supply wires to the fixture lead
wires by connecting BLACK to BLACK (or SMOOTH)
and WHITE to WHITE (or RIBBED).
7. Attach the GROUND wire(GREEN or COPPER)
from the Junction Box and the fixture Ground wire to
the green Ground Screw on the Mounting Bracket (B)
or connect both wires together using the correct size of
wire connectors.
- NOTE:Twist the wires together in the same direction
you twist the wire connector onto the wires.
8. Tuck these wire connections neatly into the Junction
Box.
FINISHING THE INSTALLATION (Fig.3)
9. After tucking these wire connections neatly into the
Junction Box and place the fixture Back Plate(D) over
the two Mounting Screws(C) and secure the Back
Plate(D)against the wall by threading two Deco
Nuts(E) over the two Mounting Screws(C) until tight as
shown on Fig.1.
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX AND
TEST THE FIXTURE.
JUNCTION BOX
B
A C
D E
D E
