For Customer Service, contact the place of purchase to arrange for replacement parts.

3. By measuring determine correct number of links

needed for proper hanging height. Use a pair of

pliers to open one link of the Chain (C2) then

remove the excess Chain (C2) and discard it.

4. Use one chain connector(E2) to attach one end of

the chain to the Top loop (D2) and close the chain

connector.

5. Feed the fixture wires through the Chain (every

three links) and pull the wires until taut.

6. Slip Canopy loop collar (B2) over the chain, then

do the same with the canopy (F2).

7. When ready to complete the installation Use the

other chain connector and attach the other end of

the chain to the canopy loop (A2) and close the

chain connector.

8. Make sure the weight of the chandelier is

supported by the chain-not the electrical wire.

You may now install the fixture.

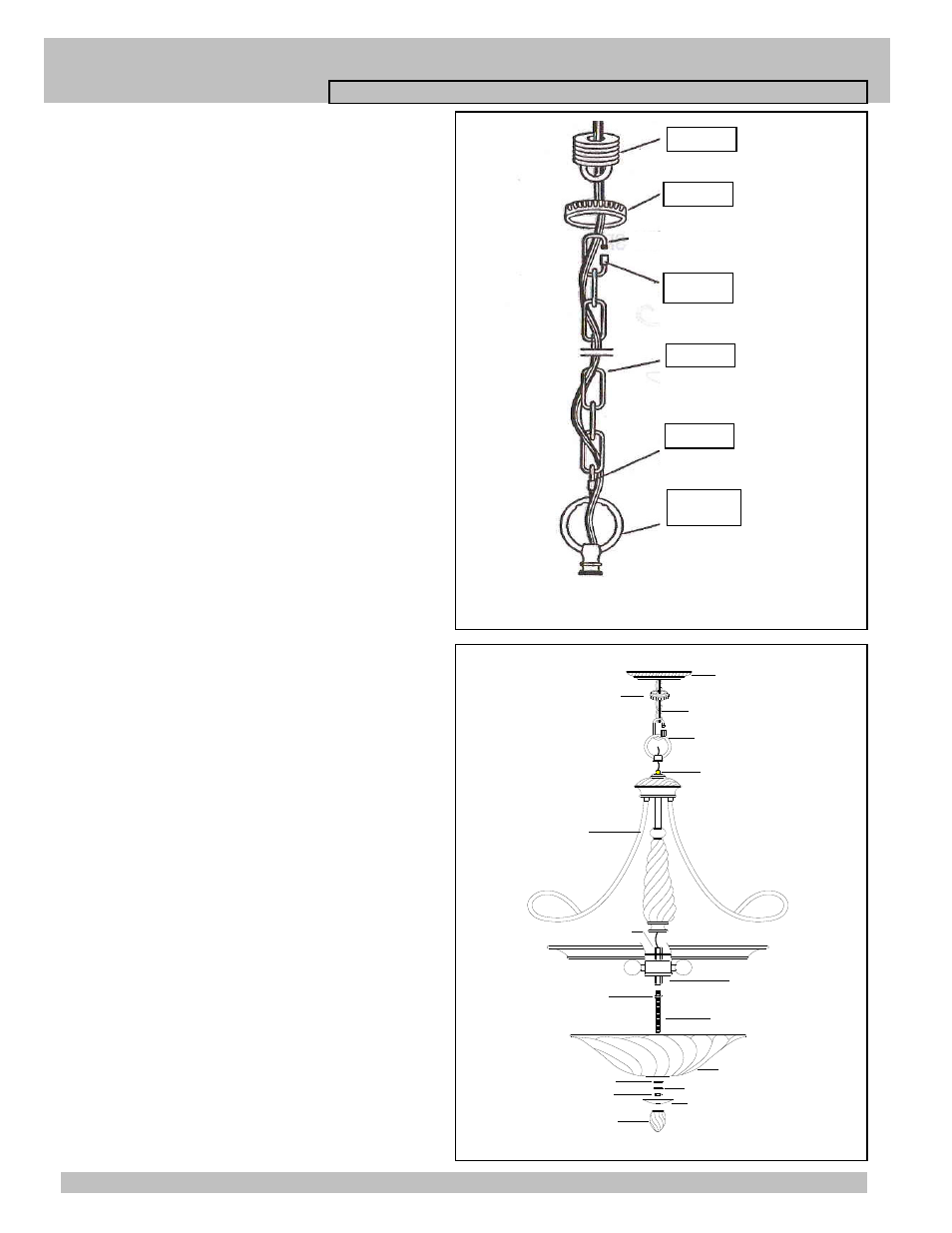

Fig 2

PARTS & ASSEMBLY SHEET

Fixture Name: Torbellino 8106-3P CDB

NOTE: Complete these remaining steps after the

fixture is hung.

9. Thread the Nipple (P) into the Coupling (N), and

then thread the Hex Nut (Q) onto Nipple (P) until

tight.

10. Install the light bulbs in accordance with the

fixture’s specifications.

11. Place Glass Shade (R) over the Metal Ring .

The Nipple (P) shall protrude through the bottom

hole of the Glass Shade (R).

12. While holding the Glass Shade slide the

13. Slide Bottom Cap (U) over Nipple (P) and thread

the Finial (V) until tight.

(DO NOT EXCEED THE MAXIMUM WATTAGE

RATING)

Fig 3

CHAIN
