INSTALLATION INSTRUCTIONS
Fixture Name: Torbellino 8106-10 CDB
For Chandelier Light Fixture
FINISHING THE INSTALLATION (Fig.3)
11. Place the fixture canopy (F), over the threaded rod (D), so
it protrudes through the hole in the Canopy (J). Thread the Cap
(G) and Deco Nut (H) onto the threaded rod and continue
turning until the Canopy (F) is snug against the ceiling.
12. Install the light bulbs and glass shade as per the fixture
assembly sheet.
YOUR INSTALLATION IS NOW COMPLETE. RETURN
POWER TO THE JUNCTION BOX AND TEST THE FIXTURE.
Fig. 3
For Customer Service, contact the place of purchase to arrange for replacement parts.
6. Assemble the fixture and have an assistant or secure support
hold the weight of the fixture while you complete the wiring
connections.
7.Thread the fixture wires and ground wire of the assembled
fixture through the canopy loop and into the outlet box.
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

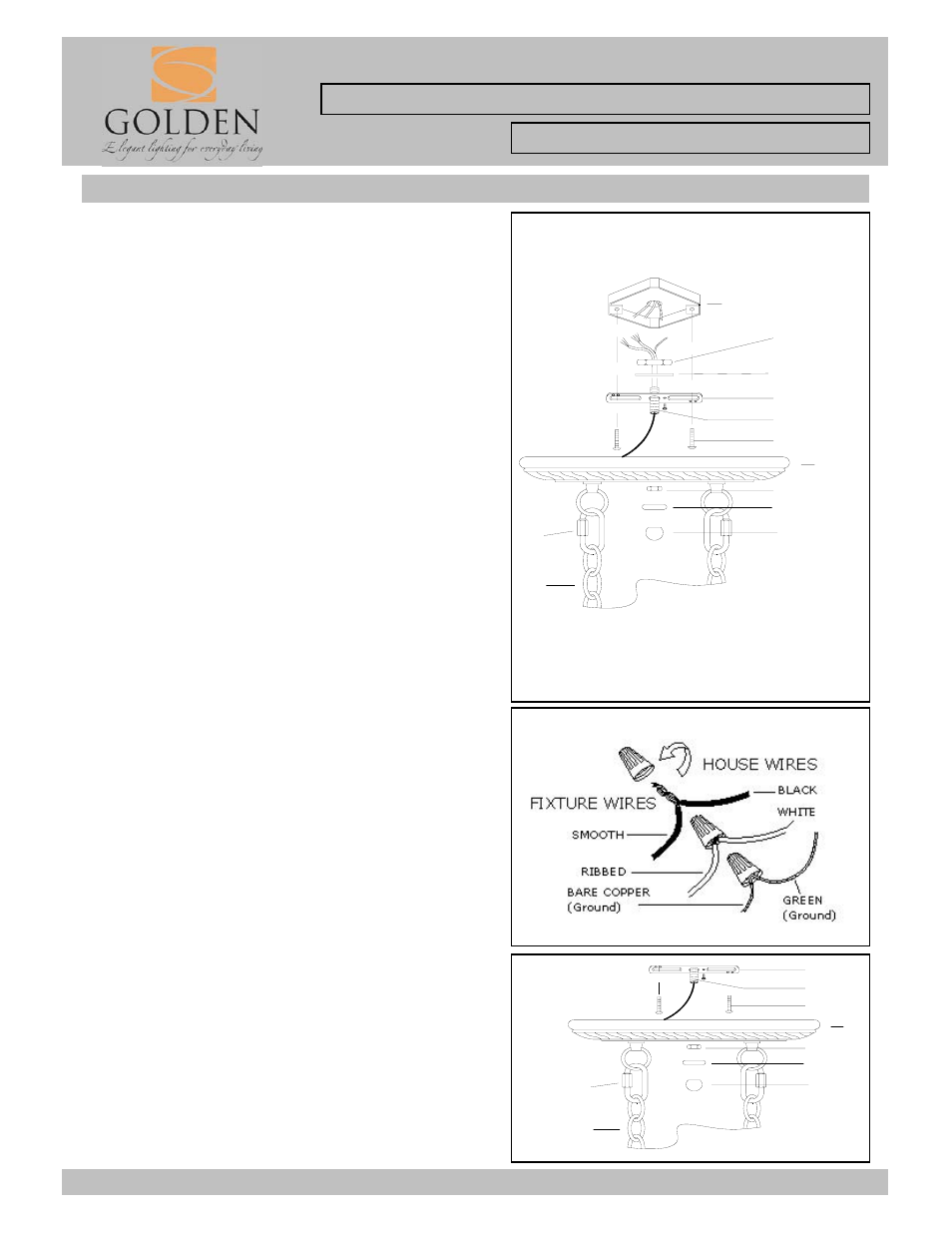

HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new fixture from the carton and the
yellow bag that holds all parts. Check that all parts are included
as shown in the illustration and parts list.
2. Shut off the power at the circuit breaker and remove old
fixture from ceiling, including the old mounting strap.
3.Thread the Nipple (D) into the Mounting Strap (C). Place Lock
Washer (B) over end of Nipple (D) protruding through Mounting
Strap (C) and thread Hex Nuts (A) onto Nipple until tight.
4. The Mounting Strap (C) contains several pairs of threaded
holes, find the pair of holes that match the holes spacing in your
fixture Canopy (F) and thread the two Mounting Screws (E) half
way into the Mounting Strap (C).
5. Place the Mounting Strap (C)over the Junction Box so the
Mounting Screws (E) are vertical or horizontal, as required by
fixture type and fasten using the two mounting screws (B).
Tighten the screws (B) securely with screw driver.
Fig. 1
CONNECTING THE WIRES (Fig 2)
8. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to
WHITE (or RIBBED).
9. Attach the GROUND wire(GREEN or COPPER) from the
Junction Box and the fixture Ground wire to the green Ground
Screw on the Mounting Bracket (C) or connect both wires
together using the correct size of wire connectors.
NOTE: Twist the wires together in the same direction you twist
the wire connector onto the wires.
10. Tuck these wire connections neatly into the Junction Box.
Fig. 2
A
E
C
JUNCTION BOX
(CEILING)
D
G
H
F
A
B
R
J
A
E
C
D
G
H
F
R
J
