7644-BA2 GA PartsInstallation_20111108m.xls
Mounting Strap
Junction Box
Screw
Mounting Screw
1ea 4"X3" 2ea 8/32"X1" 2ea 8/32"X28mm
Wire
Connnector
Hex Nut
Deco Nut
(round nut)
3ea P4 Orange 2ea 8/32"X3.5mm 2ea 9X9.5mm
Green Ground
Screw
1ea 8/32"X10mm 1 ea
Part Needed Quantity
Part Needed Quantity
Reason why ( missing, scratched, broken glass, bent, bad finish)
Comments
Decorative Chain
(CRYSET-7644-BA2)
Notice: Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or
damaged, please note onthis sheet and contact the place of purchase to arrange for replacement parts.

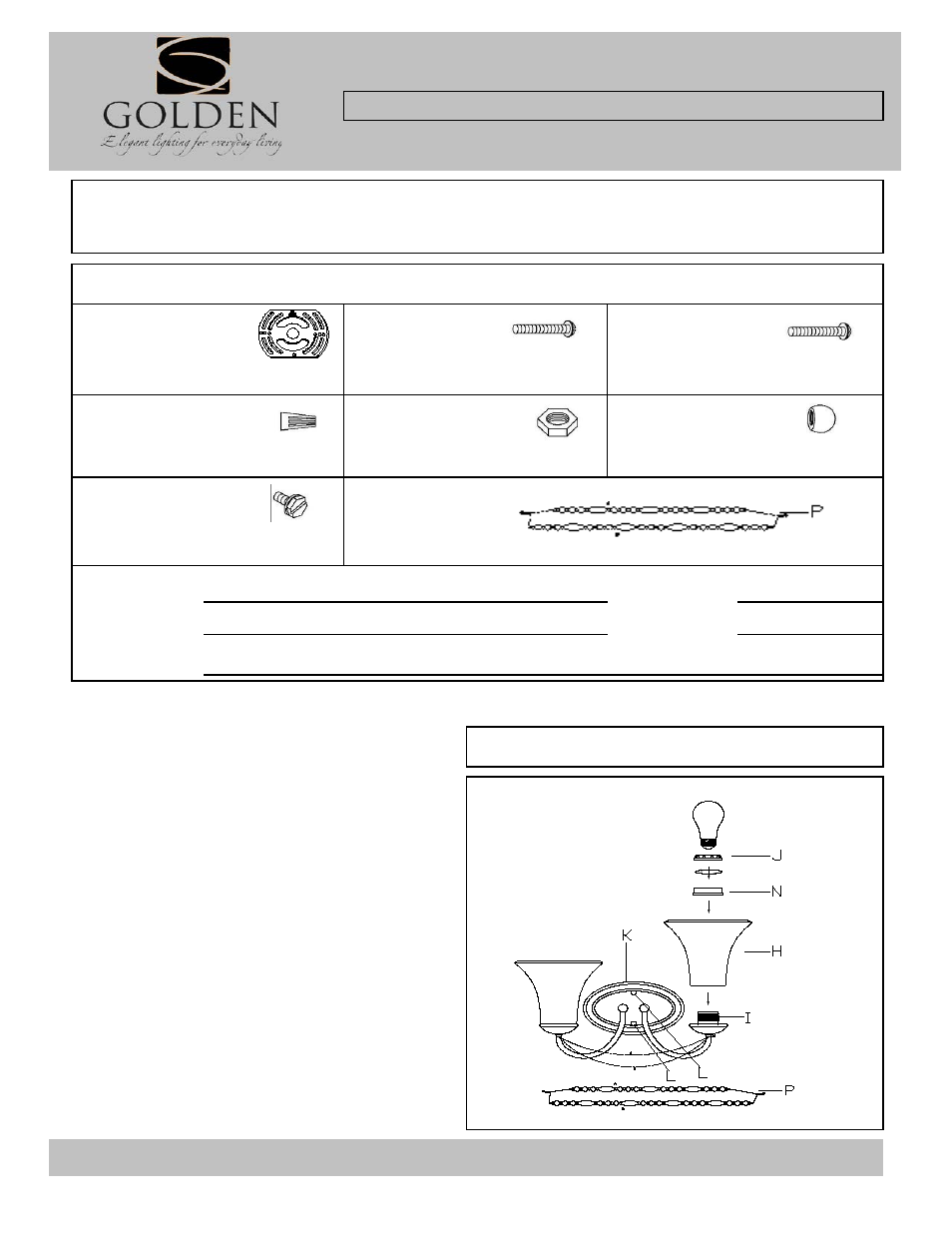

PARTS LIST
Company Name:_______________________Co. Account #:_____________
below to be filled out by retailer
PARTS & ASSEMBLY SHEET
This fixture assembled PO:__________ Date: ________
Fixture Name: Mirabella 7644-BA2 GA
For Customer Service, contact the place of purchase to arrange for replacement parts.
7644-BA2 GA
Read and review installation instruction sheet
before assembling the fixture.
F IXTURE A SSEMBLY I NSTRUCTIONS
NOTE: I NSTALL THE GLASS ASSEMBLY
AFTER THE FIXTURE IS HUNG.
1. Locate the Decorative Chain (P) and attach hooks at
both ends of the Decorative Chain (P) to fixture body as
shown in the diagram.
2. Slide the Glass Shade (H) and Collar (N) over Socket
(I) and secure Glass Shade (H) by threading the Socket
Ring (J) to Socket (I)
3. Install the light bulb in accordance with the fixture's
specifications.
(DO NOT EXCEED THE MAXIMUM WATTAGE RATING!)
Fig. 4
