Fixture Name: Mirabella 7644-9 GA
For Customer Service, contact the place of purchase to arrange for replacement parts.
Fig. 2
PARTS & ASSEMBLY SHEET
C
D

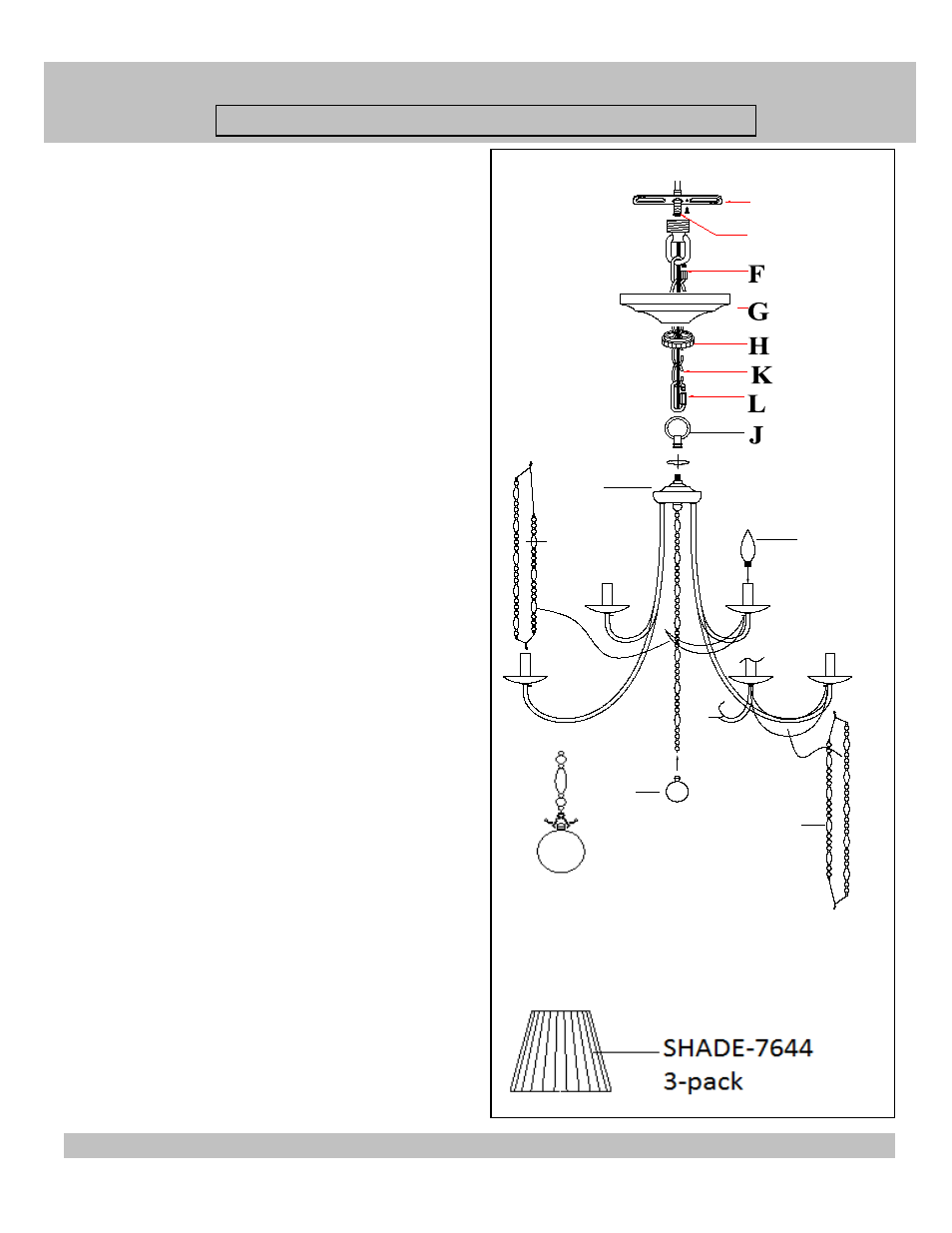

ASSEMBLING THE FIXTURE (Fig. 2)
4. By measuring determine correct number of links
needed for proper hanging height. Use a pair of pliers
to open one link of the Chain (K) then remove the
excess Chain (K) and discard it.
5. Use one chain connector (L) to attach one end of
the chain to the Top loop (J) and close the chain
connector.
6. Feed the fixture wires through the Chain (every
three links) and pull the wires until taut.
7. Slip Canopy loop collar (H) over the chain, then do
the same with the canopy (G).
8. When ready to complete the installation Use the
other chain connector and attach the other end of
the chain to the canopy loop (F) and close the chain
connector.
9. Make sure the weight of the chandelier will be
supported by the chain-not the electrical wire.
* You may now install the fixture.
Note: Complete these remaining steps after the
fixture is hung.
10. Attach hook both ends of the Decorative Chain
(N) and (O) to Frame (M) as shown in the diagram.
11. Pull the straight edges of the hook that sits at
the end of decorative chain (N) outward until it
opens, insert crystal ball (P) into the opening and
then close the hook by pressing the edges together
over the loop at the top of the crystal as shown in
the diagram.
12. Install the light bulbs (not provided) in
accordance with the fixture's specifications.
(DO NOT EXCEED MAXIMUM WATTAGE RATING )
Optional:
Carefully clip the Fabric Shade (SHADE-7644) onto
the bulb
Pearl Chiffon Shades -3 pack available separately
P
(Not Provided)
Bulb
M
a
b
a b
c
d
c d
Nx6pcs
Ox3pcs
