Page 2

7644-1W GA PartsInstallation_20111108m.xls

Mounting Strap

Junction Box

Screw

Mounting Screw

1ea 4"X3"

2ea 8/32"X1"

2ea 8/32"X28mm

Wire Connnector

Hex Nut

Deco Nut (round

nut)

3ea P4 Orange

2ea 8/32"X3.5mm

2ea 9X9.5mm

Green Ground

Screw

1ea 8/32"X10mm

1 ea

Part Needed

Quantity

Part Needed

Quantity

Reason why

( missing, scratched, broken glass, bent, bad finish)

Comments

Decorative Chain

(CRYSET-7644-M1L)

7644-1W GA

Read and review installation instruction sheet before

assembling the fixture.

IXTURE

SSEMBLY

NSTRUCTIONS

For Customer Service, contact the place of purchase to arrange for replacement parts.

1. Locate the decorative chain (L) and attach hooks at
both ends of the decorative chain (L) to fixture body as
shown in the diagram.

2. Install the light bulb in accordance with the fixture's
specifications.

3. Carefully clip the Fabric Shade ( K )
(1 pc of SHADE-7644 included) onto the bulb.

(DO NOT EXCEED THE MAXIMUM WATTAGE RATING!)

Fig. 4

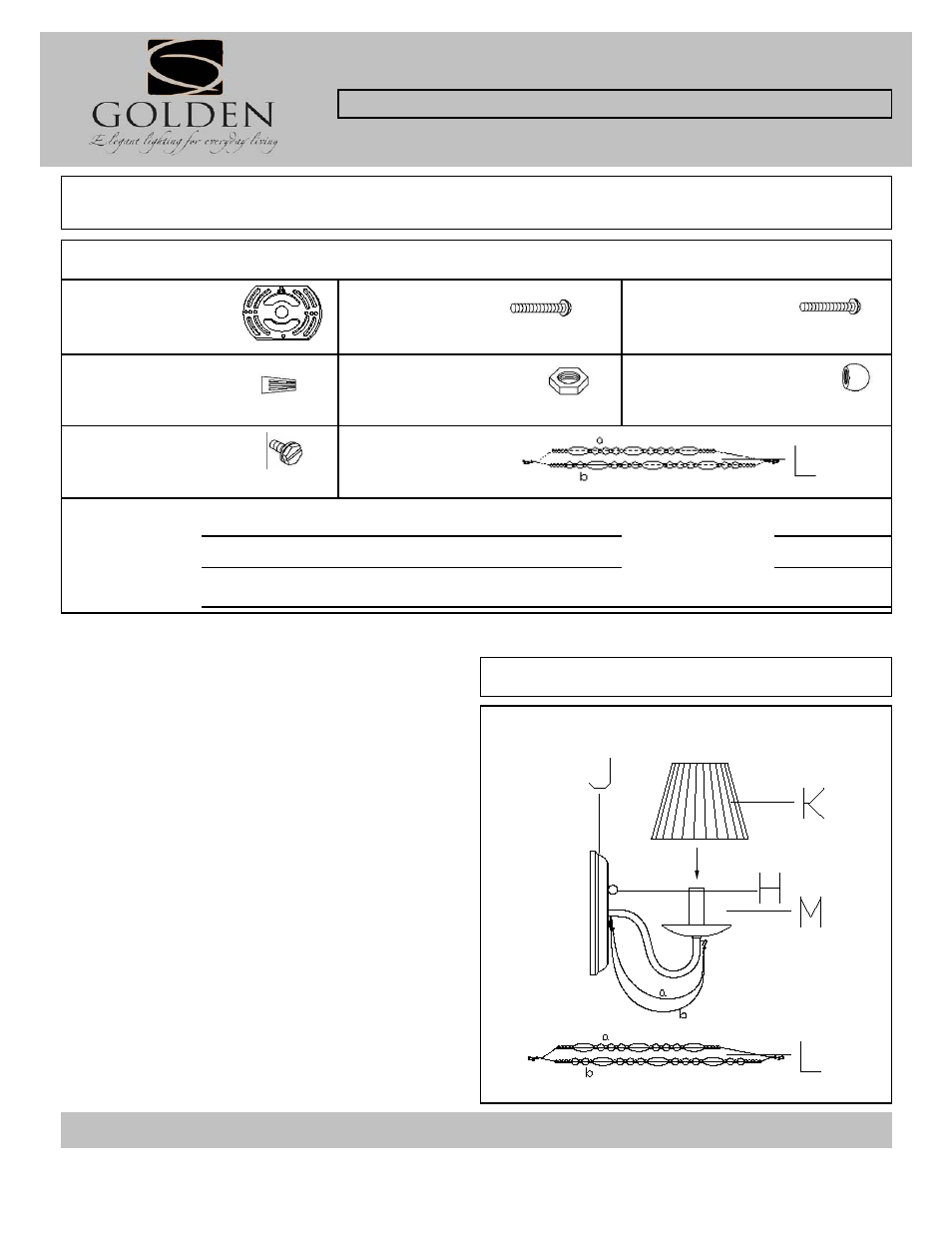

PARTS & ASSEMBLY SHEET

This fixture assembled PO:__________ Date: ________

Fixture Name: Mirabella 7644-1W GA

Notice:

Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or

damaged, please note onthis sheet and contact the place of purchase to arrange for replacement parts.

PARTS LIST

Company Name:_______________________Co. Account #:_____________

below to be filled out by retailer
