For Customer Service, contact the place of purchase to arrange for replacement parts.

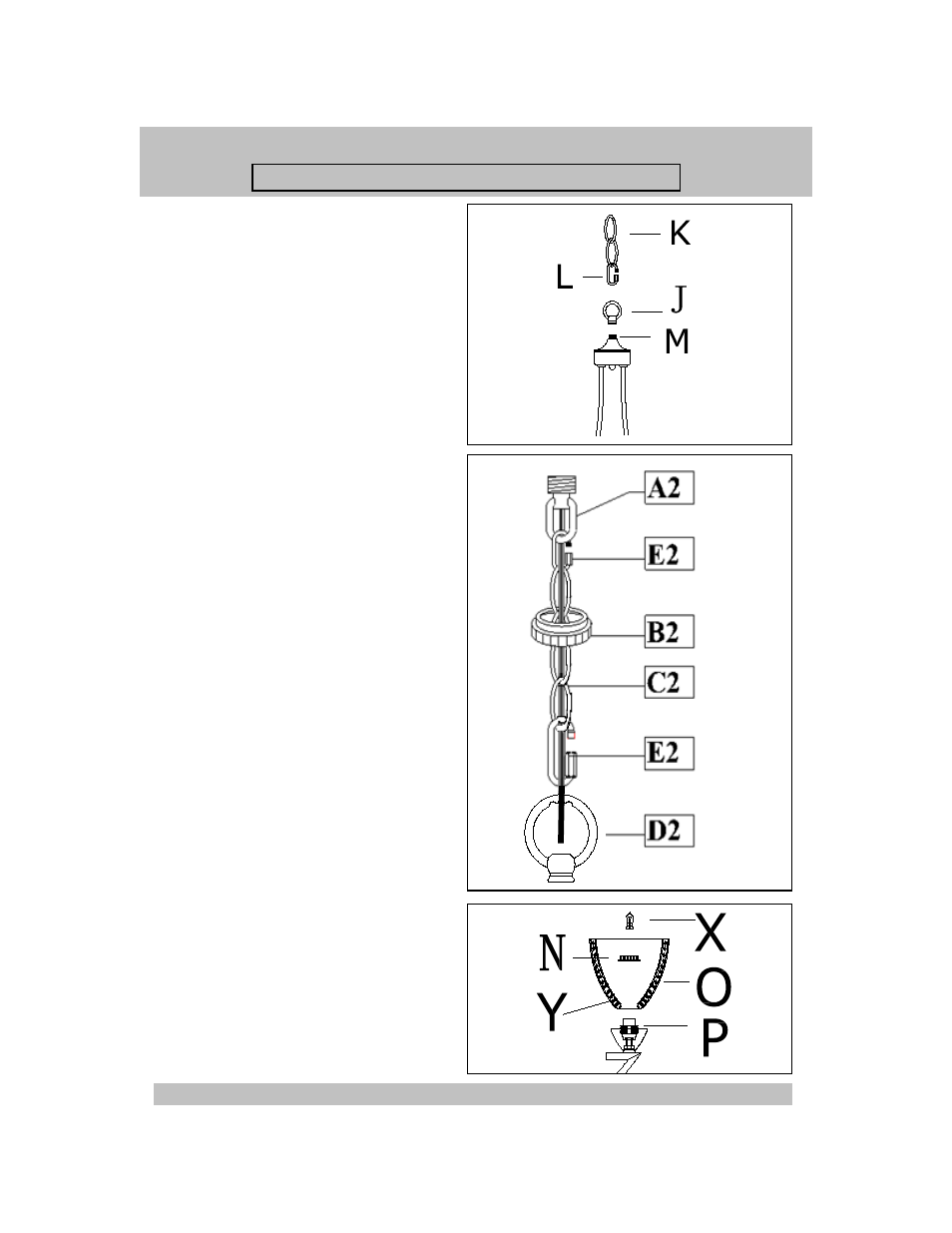

ASSEMBLING THE FIXTURE (Fig.2)
2. Feed the fixture wires through Top Loop (J) and pull
the wires until taut.
3. Then screw Top Loop (J) to the threaded center
column of Frame (M) until tight.
4. By measuring, determine correct number of links
needed for proper hanging height. Use a pair of pliers
to open one link of Chain (C2) then remove the excess
Chain (C2) and discard it.
5. Use one Chain Connector (E2) to attach one end of
the chain to the Top Loop (D2) and close the chain
connector.
6. Feed the fixture wires through the Chain (every
three links) and pull the wires until taut.
7. Slip Canopy Loop Collar (B2) over the chain, then
do the same with the canopy (F2).
8. When ready to complete the installation Use the
other chain connector and attach the other end of the
chain to the Canopy Loop (A2) and close the chain
connector.
9. Make sure the weight of the chandelier will be
supported by the chain-not the electrical wire.
* You may now install the fixture.
Note: Complete these remaining steps after the fixture
is hung.
10. Pour crystals (Y) into the groove of Glass Shade
(O) then
place Glass Shades (O) over threaded Sockets (P).
Secure Glass Shades (O) by threading
Socket Rings (N) until tight.
11. Install the light bulbs in accordance with the
fixture's
specifications.
Bulb note: Use a tissue or paper towel to hold the
bulb and push down into the socket. Oils or dirt can
cause the bulb life to shorten. Rubbing alcohol is
recommended to clean the bulbs if dirty.
(DO NOT EXCEED MAXIMUM WATTAGE RATING)
PARTS & ASSEMBLY SHEET
Fixture Name: Asteria 7509-5 PW
Fig 2
Fig 3
Fig 4
