For Customer Service, contact the place of purchase to arrange for replacement parts.

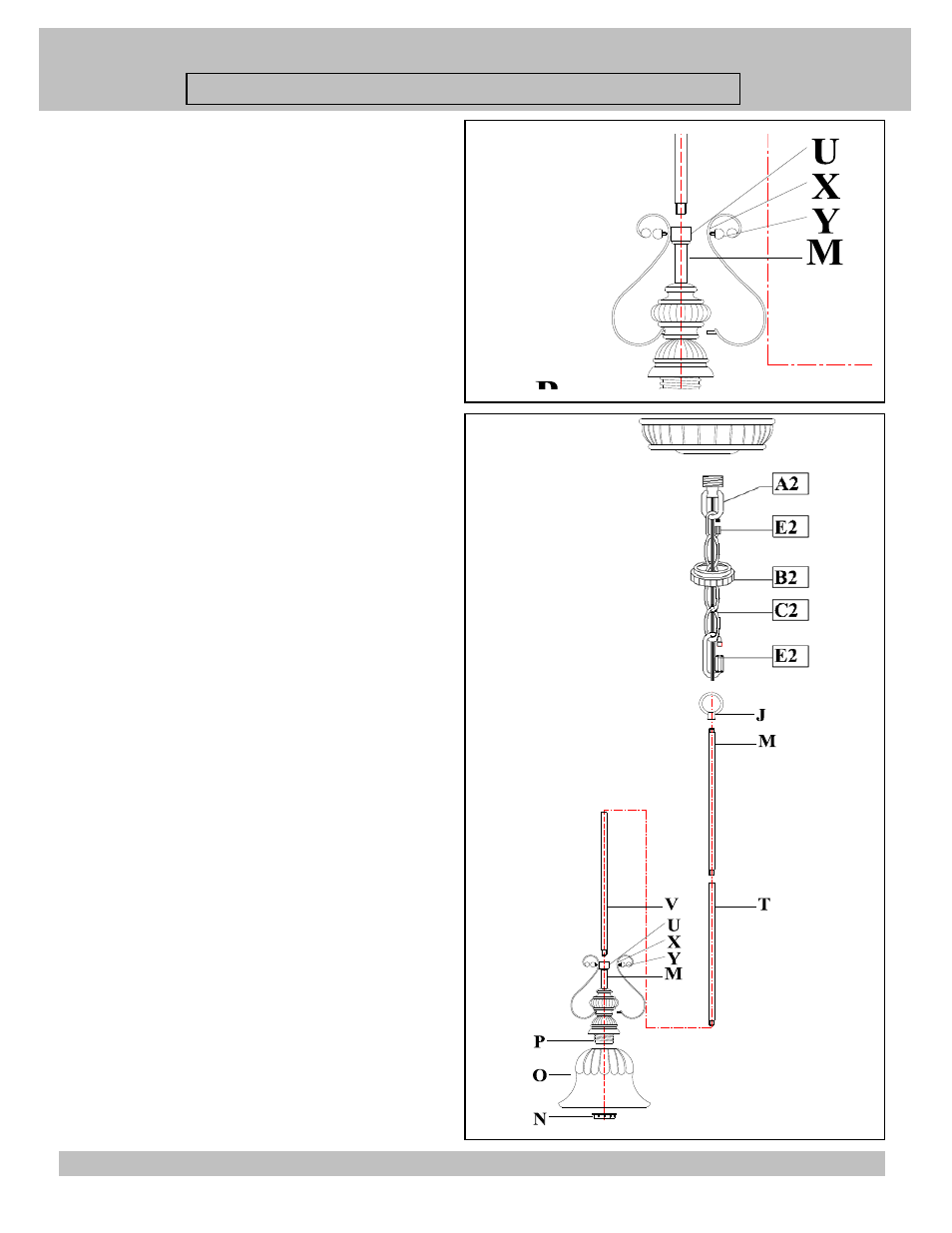

Fig 2
Fig 3
PARTS & ASSEMBLY SHEET
Fixture Name: Mayfair 7116-M1L LC
ASSEMBLING THE FIXTURE (Fig 2)
4. Tuck the inside of each Scroll arm into the slot in fixture
frame, align the top of Scroll arm (X) over the arm
connector screws (Y)* at top of socket assembly and
secure in place with the Deco nuts (Y). alternate version
may use Deco screws in place of nuts.
5. Feed the fixture wires through the Rods (V, T, M) and
Top loop (J) and pull the wires until taut.
6. Then screw the Top Loop (J) to the threaded center
column of Frame (M) until tight.
7. By measuring determine correct number of links needed
for proper hanging height. Use a pair of pliers to open one
link of the Chain (C2) then remove the excess Chain (C2)
and discard it.
8. Use one chain connector(E2) to attach one end of the
chain to the Top loop (D2) and close the chain connector.
9. Feed the fixture wires through the Chain (every three
links) and pull the wires until taut.
10. Slip Canopy loop collar (B2) over the chain, then do the
same with the canopy.
11. When ready to complete the installation Use the other
chain connector and attach the other end of the chain to
the canopy loop (A2) and close the chain connector.
12. Make sure the weight of the chandelier will be
supported by the chain-not the electrical wire.
* You may now install the fixture.
Note: Complete these remaining steps after the fixture is
hung.
13. Place the Glass Shades(O) over the Threaded
sockets(P),
secure the Glass Shades (O) by threading by the
Socket Rings (N) until tight.
14. Install the light bulbs in accordance with the fixture's
specifications.
(DO NOT EXCEED MAXIMUM WATTAGE RATING)
