PARTS & ASSEMBLY SHEET
Fixture Name: Mayfair 7116-3P LC

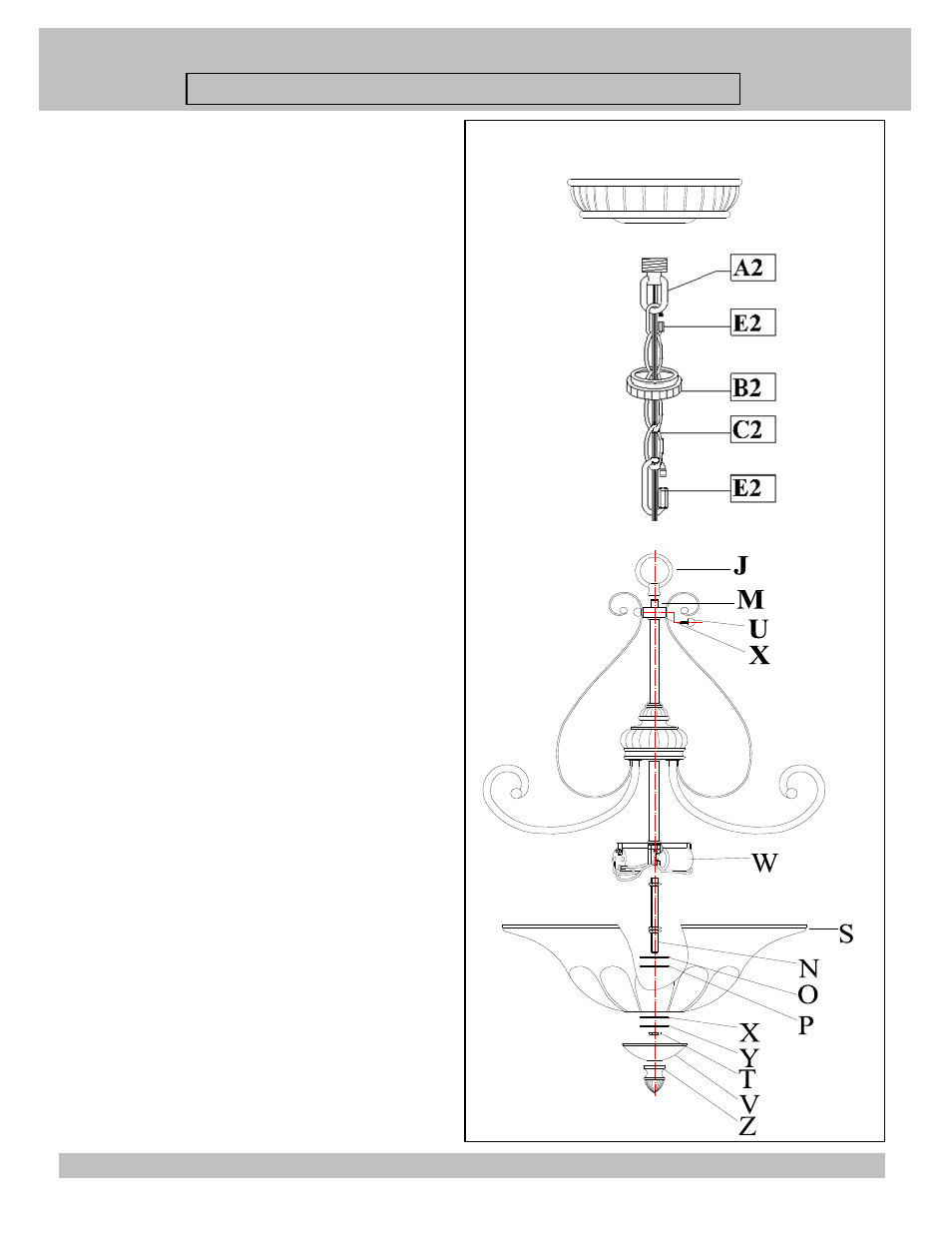

Fig 2
For Customer Service, contact the place of purchase to arrange for replacement parts.
ASSEMBLING THE FIXTURE (Fig.2)
5. By measuring determine correct number of links needed
for proper hanging height. Use a pair of pliers to open one
link of the Chain (C2) then remove the excess Chain (C2)
and discard it.
6. Use one chain connector (E2) to attach one end of the
chain to the Top loop (J) and close the chain connector.
7. Feed the fixture wires through the Chain (every three
links) and pull the wires until taut.
8. Slip Canopy loop collar (B2) over the chain, then do the
same with the canopy.
9. When ready to complete the installation Use the other
chain connector and attach the other end of the chain to
the canopy loop (A2) and close the chain connector. Make
sure the weight of the chandelier is supported by the chain-
not the electrical wire.
* You may now install the fixture.
Note: Complete these remaining steps after the fixture is
hung.
10. Thread the threaded rod/nipple (N) onto the socket
assembly coupler, secure with a hex nut.
11. Install the light bulbs in accordance with the fixture's
specifications.
12. Thread on the Nipple (N) in this order: hex nut, metal
washer (O), plastic washer (P), glass shade (S) thread the
nipple through the hole in bottom of glass shade, plastic
washer (X), metal washer (Y), hex nut (T) , bottom cap (V)
and secure in place with the finial (Z).
(DO NOT EXCEED MAXIMUM WATTAGE RATING)
