For Customer Service, contact the place of purchase to arrange for replacement parts.
INSTRUCITON SHEET FOR 6390-5WG-140521
PARTS & ASSEMBLY SHEET
This fixture assembled PO: Date:
Fixture Name: CORONADA 6390-5 WG
Notice: Please review the parts listing and check for all parts before assembling the fixture. If
any parts are missing or damaged, please note on this sheet and contact the place of
purchase to arrange for replacement parts.

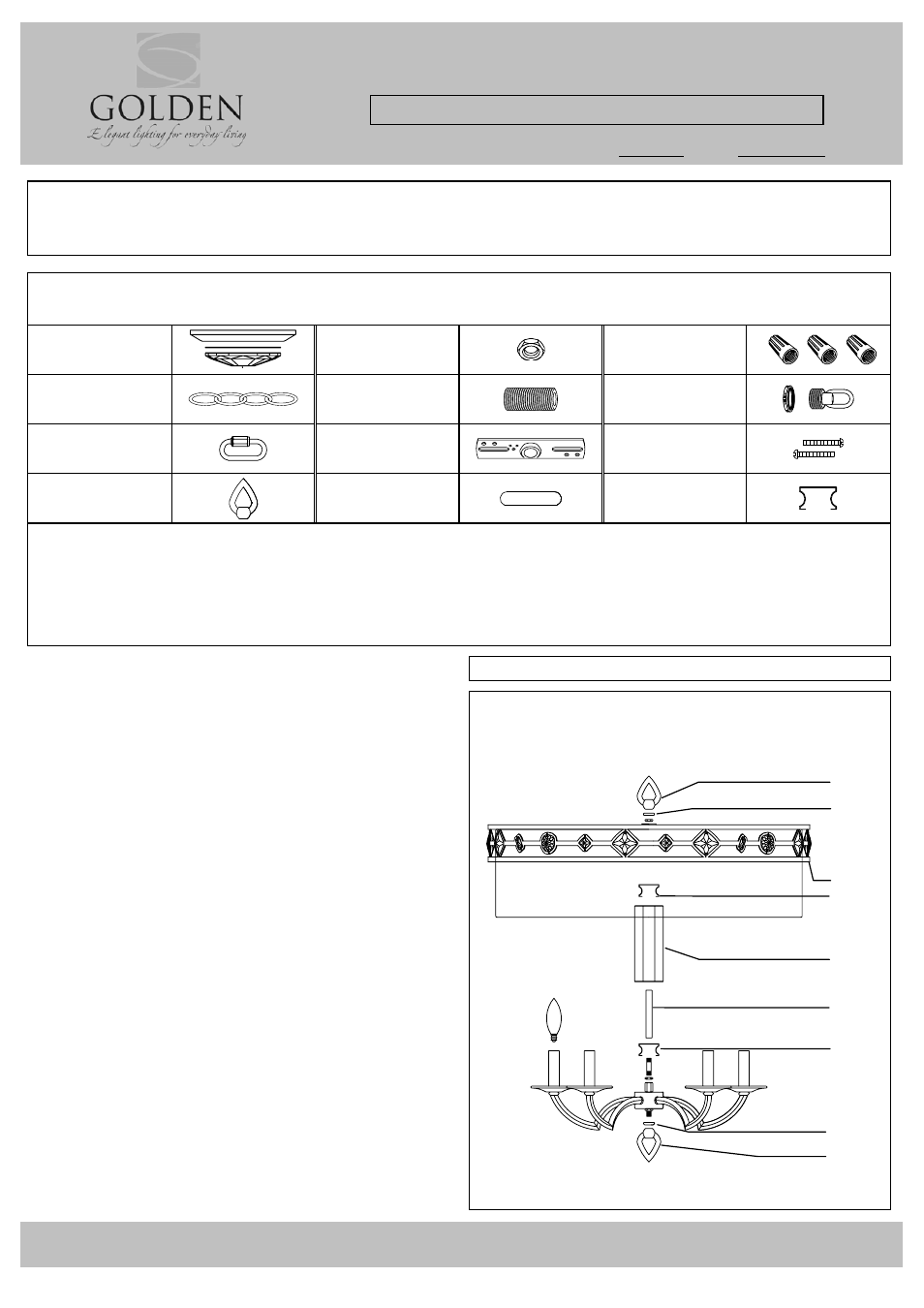

PARTS LIST
Company Name:______________________Co Account#:__________
below to be filled out by retailer
Canopy
1ea Φ140*H30 ㎜
Hex Nut
2ea NPS-1/4-18 Wire Connectors
3ea Orange
Chain
1ea Φ3.8*6ft
Nipple
1ea NPS 1/4-18*50 ㎜
Canopy Loop
1ea NPS 1/4-18*H41 ㎜
Link
2ea W20*H45 ㎜
Mounting Strap
1ea W103*T2.0 ㎜
Mounting Screws
2ea G8/32*H32 ㎜
Loop
1ea W50*H70 ㎜
Cap
2ea Φ23*H5 ㎜
Cover
2ea Φ42*H27 ㎜
Part Needed ______________________________ Quantity _________________________________
Part Needed ______________________________ Quantity _________________________________
Reason why (missing, scratched, broken glass, bent, bad finish)
Comments __________________________________________________________________________
6390-5 WG
FIXTURE ASSEMBLY INSTRUCTIONS
Read and review installation instruction sheet
before assembling the fixture
1. Thread nipple into the coupling and secure
with nut.
2. Place Cover (G), Tube (F), Column (E),
Cover (G) and Frame (D) over the nipple and
secure with nut.
3. Place Cap (B) over nipple and secure with
Loop (A).
4. Place Cap (B) over bottom nipple and
secure with Finial (C).
5. Install the bulbs as specified. (Bulbs are not
included)
(Do not exceed the maximum wattage rating!)
Fig.3
C
B
B
A
D
E
G
F
G
