CAUTION-RISK OF FIRE. CONSULT A
QUALIFIED ELECTRICIAN TO ENSURE
CORRECT BRANCH CIRCUIT CONDUCTOR
MIN 90℃ SUPPLY CONDUCTORS.
INSTALLATION INSTRUCTION FM-1
For Flush Mount Ceiling Fixtures
MOUNT THE FIXTURE
1. Shut off power at the fuse box or circuit breaker
box. Remove the old fixture from ceiling.
Including the crossbar.
2. Carefully unpack your new fixture and lay out
all the parts on a clear area. Take care not to lose
any small parts necessary for installation.
3. Thread the two Mounting Screws (A) about 1/4”
into the pre-drilled holes in the Crossbar (B)
spaced the same distance apart as the holes in
the Ceiling Pan (D).
4. Attach the Crossbar (B) to the Outlet Box using
the two Screws (C) from the Outlet Box. The
side of the Crossbar marked “GND” must face
out.
5. While holding the Ceiling Pan (D) toward the
ceiling, Connect the electrical wires as follows.
Connect the black wire from the fixture to the
black house (hot) wire. Connect the white wire
from the fixture wire to the white (neutral)
house wire. Make sure all wire nuts are secured.
You may wrap the connections with electrical
tape. If your outlet has a ground wire (green or
bare copper) connect fixtures ground wire to it.
Otherwise connect fixture’s ground wire directly
to the crossbar using the green screw provided.
Tuck the wire connections neatly into the ceiling
junctions box as you hold the Ceiling Pan
assembly toward the ceiling.
6. Finish mounting the Ceiling Pan (D) by placing
it over the Crossbar (B) with Mounting Screws
(A) so that they protrude through the
“Keyholes” in the bottom of the pan. Rotate the
Pan until the screws are in the slots of the
“Keyholes” and tighten with a screwdriver.
7. Install the light bulbs in accordance with the
fixture’s specifications. DO NOT EXCEED
THE MAXIMUM WATTAGE RATING!
8. Thread the Nipple (E) into the Ceiling Pan (D).
Place the Glass Shade (F) over the Ceiling Pan
(D) allowing the Nipple (E) to protrude through
the bottom hole in the glass.
9. While holding the Glass Shade, place a washer
& mounting Nut onto the treaded Nipple (E) &
tighten, slide Bottom Cap (G) tighten finial (H).
Your installation is now complete. Return power to
the junction box and test the fixture.
CSKLG004
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
OUTLET BOX
(CEILING)

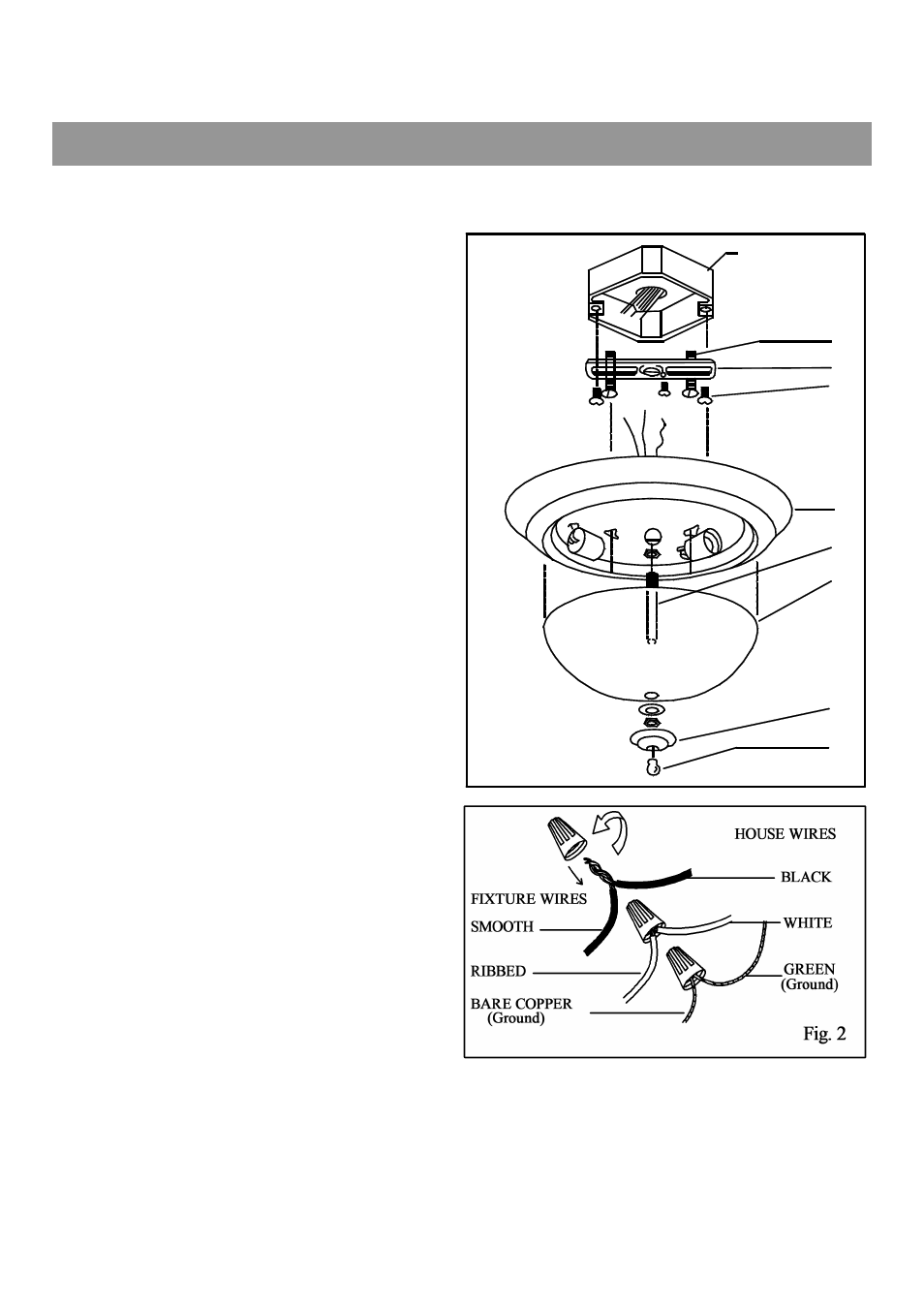

Fig.1
A
B
C
D
E
F
G
H
