Golden Lighting 6005-SF RBZ - Manual

Mounting strap
(circular)
Wire connectors Deco nut
1ea 4" x 3" 4ea P3 Orange 2ea 9 x 9.5mm
Canopy
Junction box
screw
Top loop
1ea 5" X 1" 2ea 8/32" x 1" 1ea 3/8 x 66mm
Chain Mounting screw
1ea 6ft x 3.8mm 2ea 5/32" x 1" 1ea 3/8 x 30mm x 5mm
Chain connector Hex nut Nipple
2ea 4 X 55mm 2ea 3/8 x 3mm 1ea 3/8 x 45mm
Mounting strap
w/ ground screw
Top cap Screw
1ea 3/4" X 4" 1ea 108 x 37mm 2ea 5/32" x 8mm
Bottom cap Flat washer Finial
1ea 70 x 23mm 1ea 1" x 3mm 1ea 3/8 x 40mm
Spring washer Threaded rod Check ring
1ea 15 x 3mm 1 ea 3/8 x 145 1ea 18 x 3mm
Part Needed Quantity
Part Needed Quantity
Reason why (missing, scratched, broken glass, bent, bad finish)
Comments
This fixture assembled PO:__________ Date: ________
Fixture Name: Lancaster 6005-SF PW/RBZ/AB
Canopy loop
with Collar
Notice: Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or
damaged, please note on this sheet and contact the place of purchase to arrange for replacement parts.

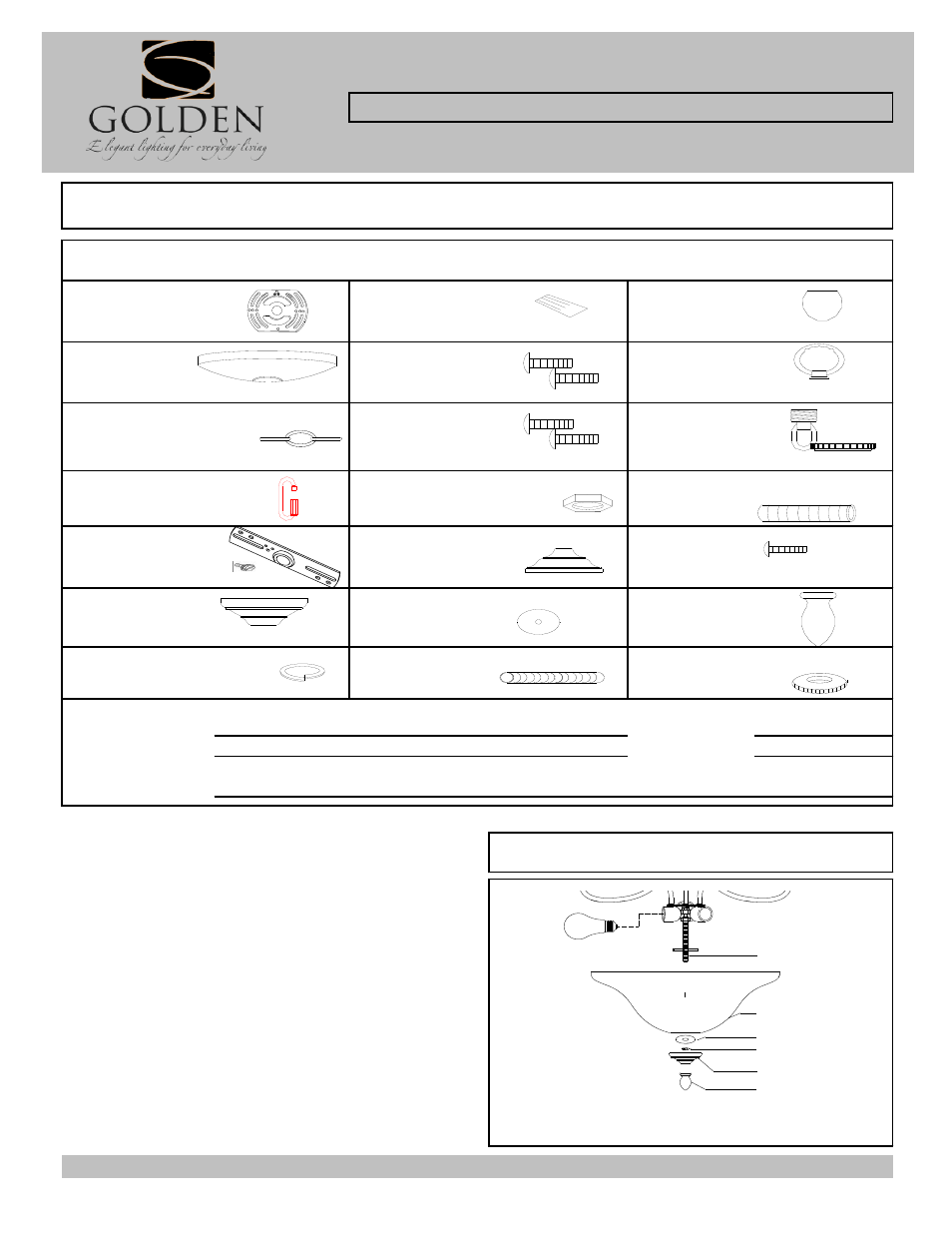

PARTS LIST
Fig. 1
NOTE: INSTALL THE GLASS ASSEMBLY AFTER THE
FIXTURE IS HUNG.
Company Name:_______________________Co. Account #:_____________
to be filled out by retailer
For Customer Service, contact the place of purchase to arrange for replacement parts.
ASSEMBLING THE FIXTURE as Semi-flush (Fig. 1)
1. Thread the threaded rod/nipple (G) onto the socket assembly
coupler. Secure with a hex nut.
2. Install the light bulbs in accordance with the fixture's
specifications.
(DO NOT EXCEED MAXIMUM WATTAGE RATING)
3. Slide the Glass shade (H) and Flat Washer (I) over the Nipple
(G). Secure in place with the Hex Nut (J). Slide the Bottom Cap
(K) over the Nipple (G). Secure in place with the Finial (L).
PARTS & ASSEMBLY SHEET
6005-SF
Read and review installation instruction sheet before
assembling the fixture.
F IXTURE A SSEMBLY I NSTRUCTIONS
C
D
F
E
H
G
L
K
J
I
X
U
W
T
S
R
Q
P
N
M
O
V
Y
Z
C
F
E
H
G
L
K
J
I
X
U
W
T
S
R
Q
P
N
M
O
V
Y
Z
C
F
E
H
G
L
K
J
I
X
U
W
T
S
R
Q
P
N
M
O
V
Y
Z
C
