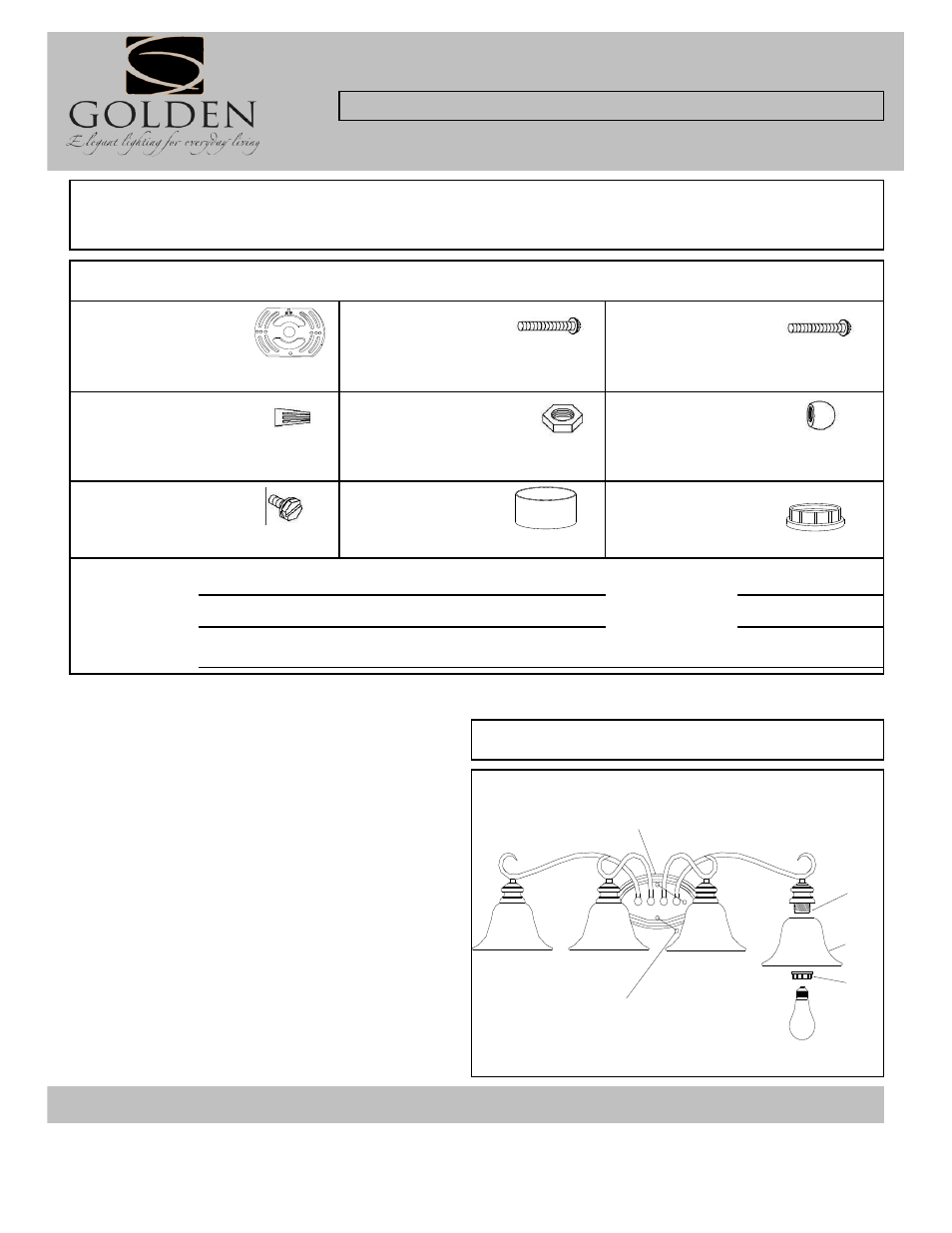

Golden Lighting 6005-BA4 RBZ - Manual

Mounting Strap
Junction Box
Screw
Mounting Screw
1ea 4" X 3" 2ea 8/32" X 1" 2ea 5/32" X 28mm
Wire
Connnector
Hex Nut
Deco Nut
(round nut)
2ea P2 Orange 2ea 5/32" X 3.5mm 2ea 9 X 9.5mm
Green Ground
Screw Socket Ring
(AB only) Socket Ring
(PW, RBZ only)
1ea 8/32" X 10mm
4ea 51 x 23mm 4ea 50 x 9mm
Part Needed Quantity
Part Needed Quantity
Reason why (missing, scratched, broken glass, bent, bad finish)
Comments
Notice: Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or
damaged, please note on this sheet and contact the place of purchase to arrange for replacement parts.
PARTS LIST
Company Name:_______________________Co. Account #:_____________
below to be filled out by retailer
PARTS & ASSEMBLY SHEET
This fixture assembled PO:__________ Date: ________
Fixture Name: Lancaster 6005-BA4 PW/RBZ/AB
For Customer Service, contact the place of purchase to arrange for replacement parts.
6005-BA4
Read and review installation instruction sheet before
assembling the fixture.
F IXTURE A SSEMBLY I NSTRUCTIONS
NOTE: I NSTALL THE GLASS ASSEMBLY
AFTER THE FIXTURE IS HUNG.
1. Slide the Glass Shade (H) over Socket (I). Secure
Glass Shade (H) by threading the Socket Ring (J) to
Socket (I).
2. Repeat step 1 for remaining glass shades.
3. Install light bulbs in accordance with fixture's
specifications.
(DO NOT EXCEED THE MAXIMUM WATTAGE RATING!)
Fig. 1
K
L
I
H
J
