Golden Lighting 5222-3 RBZ-TEA - Manual (Page 2)

For Wall Mount Light Fixture

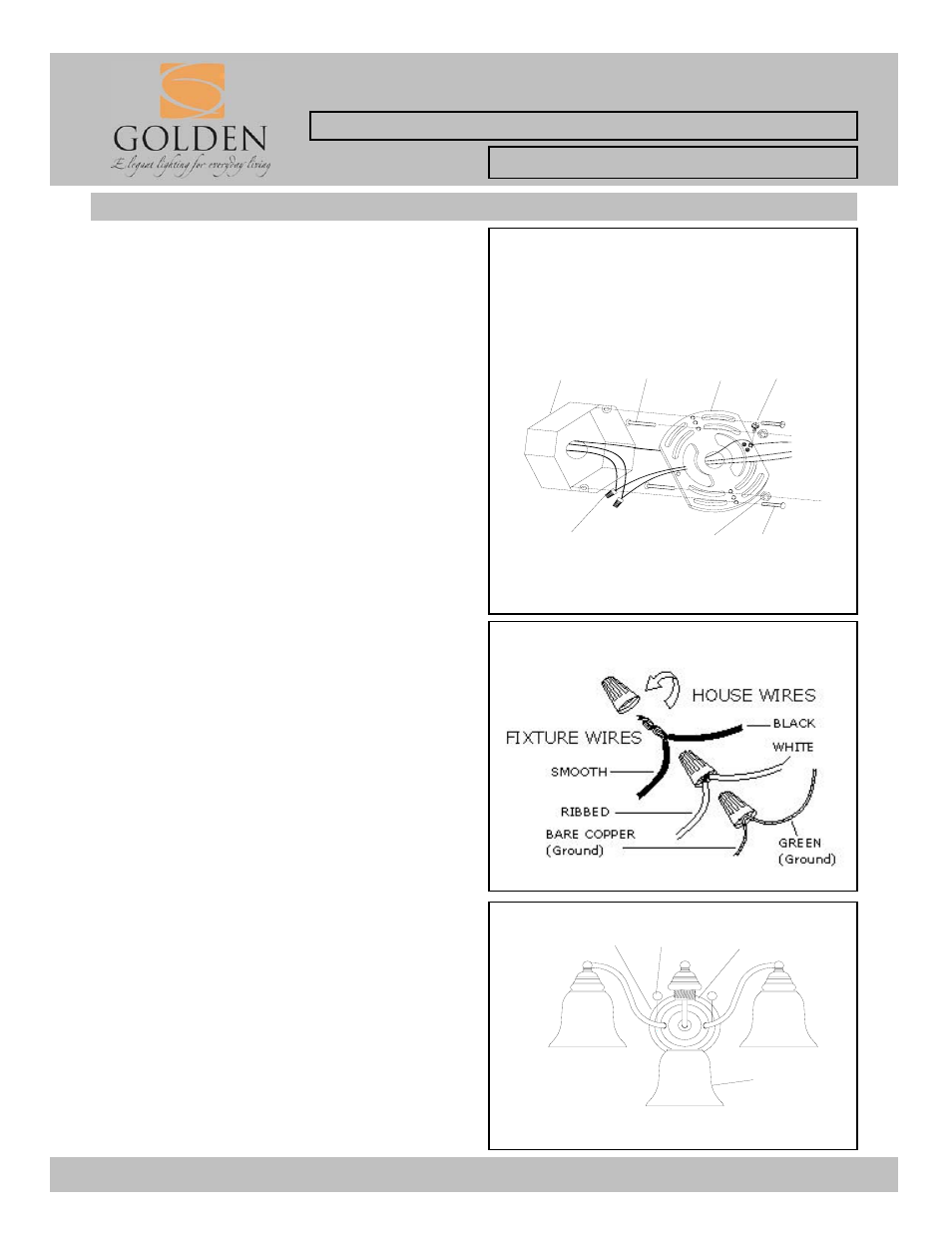

INSTALLATION INSTRUCTIONS
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
Fixture Name: CENTENNIAL 5222-3 PW,CH,ORB and 5663 RBZ
Fig. 3
Fig. 1
Fig. 2
For Customer Service, contact the place of purchase to arrange for replacement parts.
HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new fixture from the carton and the
yellow bag that holes all your parts. Check that all parts are
included as shown in the illustration and parts list.
2. Shut off power at the circuit breaker and remove the old
fixture from wall, including the old mounting strap.
3. The Mounting Strap(A) contains several pairs of
threaded holes, find the pair of holes that match the holes
spacing in your fixture Back Plate(D) and thread the two
Mounting Screws(C) half way into the Mounting Strap(A).
4. Place the Mounting Strap(A)over the Junction Box so
the Mounting Screws(C) are vertical or horizontal, as
required by fixture type.
5. Attach the Mounting Strap(A) to the Junction Box using
the two mounting screws(B). Tighten the screws(B)
securely with screw driver.
CONNECTING THE WIRES (Fig 2)
6. Attach the power supply wires to the fixture lead wires
by connecting BLACK to BLACK (or SMOOTH) and
WHITE to WHITE (or RIBBED).
7. Attach the GROUND wire(GREEN or COPPER) from
the Junction Box and the fixture Ground wire to the green
Ground Screw on the Mounting Bracket (B) or connect
both wires together using the correct size of wire
connectors.
NOTE: Twist the wires together in the same direction you
twist the wire connector onto the wires.
8. Tuck these wire connections neatly into the Junction
Box.
FINISHING THE INSTALLATION (Fig.3)
9. After tucking these wire connections neatly into the
Junction Box and place the fixture Back Plate(K) over the
two Mounting Screws(B) and secure the Back Plate(K)
against the wall by threading two Deco Nuts(L) over the
two Mounting Screws(B) until snug against the wall.
10. Install the light bulbs and glass shade as per the
fixture assembly sheet.
YOUR INSTALLATION IS NOW COMPLETE. RETURN
POWER TO THE JUNCTION BOX AND TEST THE
FIXTURE.
JUNCTION BOX
E A
G
F
D
B
C
I
H
J
K L
