For Wall Mount Light Fixture
INSTALLATION INSTRUCTIONS
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
Fixture Name: CENTENNIAL 5222-2 PW,CH,ORB and 5662 RBZ
For Customer Service, contact the place of purchase to arrange for replacement parts.

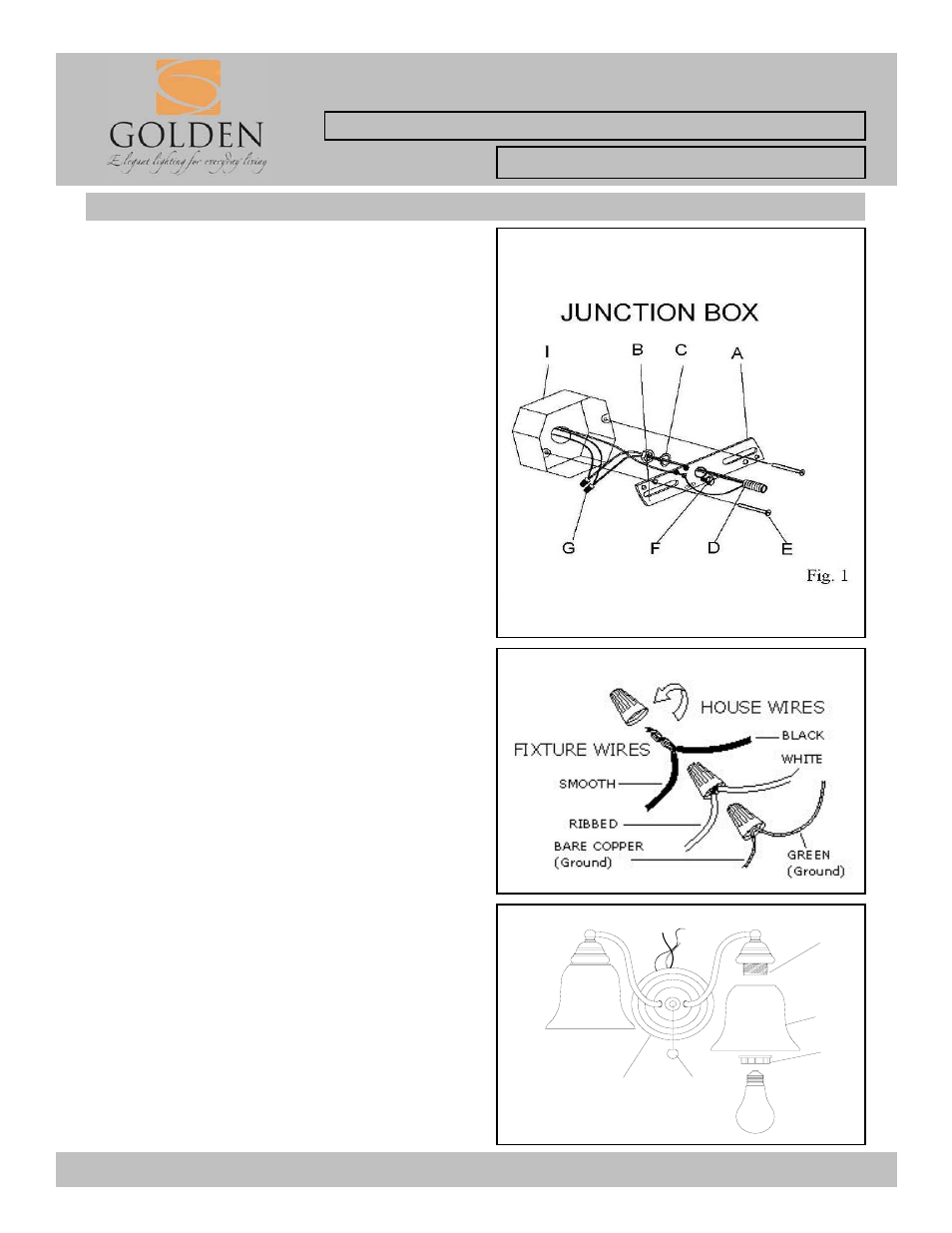

HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new fixture from the carton and the
yellow bag that holes all your parts. Check that all parts are
included as shown in the illustration and parts list.
2. Shut off power at the circuit breaker and remove the old
fixture from wall, including the old mounting strap.
3. Thread the Nipple (D) into the Mounting Strap (A). Place
Lock Washer (C) over end of Nipple (D) protruding through
Mounting Strap (A) and thread Hex Nuts (B) onto Nipple until
tight.
4. The Mounting Strap(A) contains several pairs of threaded
holes, find the pair of holes that match the holes spacing in
your fixture Back Plate(D) and thread the two Mounting
Screws(E) half way into the Mounting Strap(A).
CONNECTING THE WIRES (Fig 2)
6. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to
WHITE (or RIBBED).
7. Attach the GROUND wire(GREEN or COPPER) from the
Junction Box and the fixture Ground wire to the green
Ground Screw on the Mounting Bracket (B) or connect both
wires together using the correct size of wire connectors. -
NOTE:Twist the wires together in the same direction you
twist the wire connector onto the wires.
8. Tuck these wire connections neatly into the Junction Box.
FINISHING THE INSTALLATION(Fig.3)
9. Place the fixture Back Plate ( J ), over the threaded rod,
so it protrudes through the hole in the Back Plate ( J ).
Thread the Deco Nut ( H ) onto the threaded rod and
continue turning until the Back Plate(J) is snug against the
wall.
10. Install the light bulbs and glass shade as per the fixture
assembly sheet.
YOUR INSTALLATION IS NOW COMPLETE. RETURN
POWER TO THE JUNCTION BOX AND TEST THE
FIXTURE.
Fig. 1
5. Place the Mounting Strap(A)over the Junction Box so the
Mounting Screws(E) are vertical or horizontal, as required by
fixture type and fasten using the two mounting screws (B).
Tighten the screws (B) securely with screw driver.
Fig. 3
Fig. 2
L
M
H J
K
