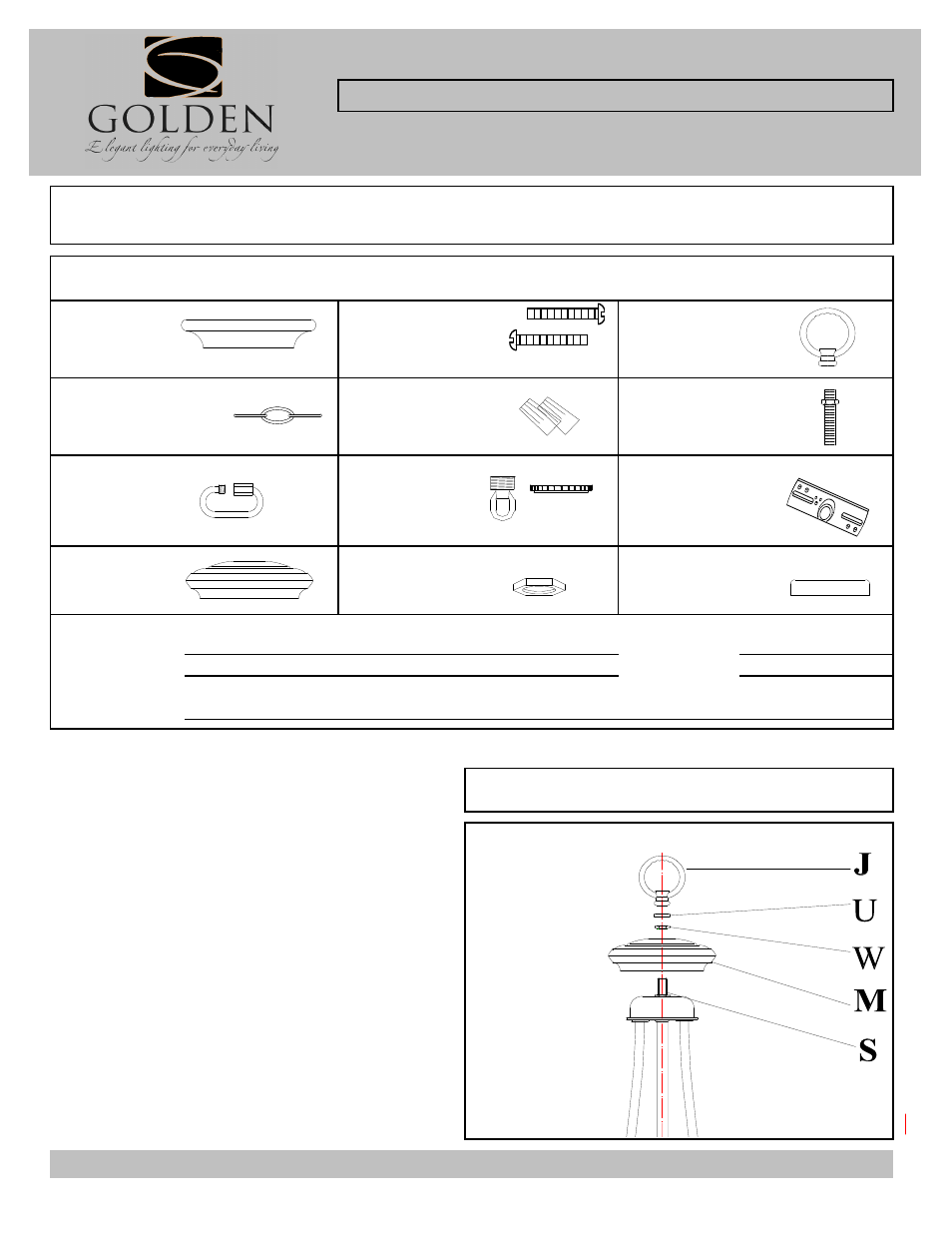

Golden Lighting 3711-6 CB User Manual
Parts & assembly sheet, Parts list

1ea ∅6-1/2"*H1-1/2"
2ea 8#32-IP*1"
1ea 1/8-IP*H60mm
1ea 6ft ∅3.8
3ea P3 Orange
1ea 1/4-IP*H60mm
2ea ∅5.8*H61mm
1ea ∅1-1/8"*H42mm
1ea W4-1/8"*E1"*H5mm
1ea ∅4-3/4"*H38mm
1ea 1/8-IP*H4mm
1ea ∅3/4"*H4mm
Part Needed
Quantity
Part Needed
Quantity
Reason why
( missing, scratched, broken glass, bent, bad finish)
Comments
For Customer Service, contact the place of purchase to arrange for replacement parts.
ASSEMBLING THE FIXTURE (Fig.1)
1. Gently spread the arms until evenly spaced if arms are
packed closed.
2. Feed the fixture wires through the Top cap (M), Hex nut,
(W) Cover (U) and Top loop (J) and pull the wires until taut.
3. Then place the Top cap over threaded center column of
Frame (S) and secure in place with the Hex nut (W).
4. Place the Cover (U) onto the Top cap (M) and thread the
Top loop (J) on until tight.
Fig 1
NOTE: I
NSTALL THE GLASS ASSEMBLY AFTER
THE FIXTURE IS HUNG.
Read and review installation instruction sheet before
assembling the fixture.
2488-6 FI & 3711-6 CB
Notice:
Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or
damaged, please note onthis sheet and contact the place of purchase to arrange for replacement parts.
PARTS LIST
Company Name:_______________________Co. Account #:_____________
to be filled out by retailer
PARTS & ASSEMBLY SHEET
Fixture Name: Rockefeller 2488-6 FI & 3711-6 CB
This fixture assembled PO:__________ Date: ________
Canopy
Mounting screws
Top loop
Chain
Wire connectors
Nipple
Chain connector
Canopy loop
with Collar
Mounting strap
Top cap
Hex nut
Cover
F
IXTURE
A
SSEMBLY
I
NSTRUCTIONS
24883711-PartsInstallation_20110105m.xls
