Assembly Instructions: 2073-SF (Smyth)
IMPORTANT:
• ALL INSTALLATION WORK SHOULD BE DONE BY ACCREDITED PROFESSIONAL.
• SHUT OFF POWER SUPPLY AT FUSE OR CIRCUIT BREAKER!
• USE ONLY THE SPECIFIED BULBS. DO NOT EXCEED
PREPARING FOR INSTALLATION
Remove all of the contents from the carton. See the important
notes above. Shut off the power at the circuit breaker and
completely remove the old fixture from the ceiling, including the
old mounting strap.
From the parts bag remove the mounting strap assembly. One
end of nipple (G) should be attached to mounting strap (A) with
hex nuts (C, D) in place. The other end should have canopy
loop (H) attached. Mounting strap (A) contains several pairs of
threaded holes. Find the pair of holes that matches the spacing
of the holes on the junction box. Attach mounting strap (A) to
the junction box using mounting screws (B) and a screwdriver.
Tighten securely. Unscrew canopy loop collar (I) from canopy
loop (H). Pass canopy (D) over the mounted canopy loop to
test the height. Approximately half of the canopy loop’s exterior
threads should be exposed, and the canopy loop collar should
fit snugly onto the canopy loop. Remove canopy (D) and adjust
the height of nipple (G) and canopy loop (H) until the desired
height is reached.
Place fixture body (P) on a flat surface. Rod (N) is on the
fixture wires, but not attached to the body of the fixture. Pass
the fixture wires through Rod (N) and pull the wires until taut.
Twist rod (N) onto the fixture body until secure. By measuring,
determine the correct number of chain links needed for proper
hanging height. If necessary, use a pair of pliers to open and
remove any excess chain. Attach one chain connector (K) to
each end of chain (J). Use one of chain connectors (K) to attach
chain (J) to top loop (L) and close the chain connector. Have
an assistant attach rods (M) to the hooks on the fixture body
then attach the hooks of rods (M) to top loop (L). Hook the end
of rod (N) onto top loop (L). Pull the wires through top loop (L).
Feed the fixture wires up through the chain (every three links or
so), pulling the wires until taut. Slide canopy loop collar (H) and
canopy (G) onto the chain/wire. Use the free chain connector (K)
to attach chain (J) to canopy loop (H).
CONNECTING THE WIRES
Have an assistant support the fixture weight while completing
the wiring. Cut away excess wire. Thread the fixture wires
through canopy loop (H) and nipple (G). Attach the fixture’s
wires to the power supply wires from the junction box. Connect
black to black (or smooth); white to white (or ribbed); ground
to ground (green or copper). Twist the ends of the wire pairs
together, then twist on a wire connector. Make sure all twists are
in the same direction. If there is no ground wire (green or copper)
from the junction box, locate ground screw (F) on mounting
strap (A) and wrap the fixture ground wire around the green
ground screw (F). Use a screwdriver to secure ground screw (F)
onto the mounting bracket. Tuck all wires neatly into the junction
box.
FINISHING THE INSTALLATION
Raise canopy (D) to the ceiling. and slide canopy loop collar
(I) up beneath the canopy. Tightly thread canopy loop collar (I)
onto canopy loop (H) to secure canopy (G) in place. Slide candle
sleeves (Q) over the sockets. Install light bulbs (O) (not included)
in accordance with the fixture’s specifications. Place glass
shade (S) onto bottom cap (T). Raise glass shade up beneath
bottom assembly (R). Twist bottom finial (U) onto the threads of
bottom assembly (R). Tighten securely.
Your installation is complete. Turn on the power and test the
fixture
.
For Customer Service, contact the
place of purchase to arrange for
replacement parts.
CLEANING TIPS
Treat the fixture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the light and wipe down the
fixture with a clean lint-free cotton or microfiber cloth. Never spray cleaner directly onto the fixture. For deep cleaning, turn off the light
and remove the glass prior to cleaning. Hand wash glass with warm water and mild detergent. Dry with a lint-free or microfiber cloth.
A
B
C
H
I
D
J
K
F
E
G
L
M
N
P
O
Q
S
T
U
R

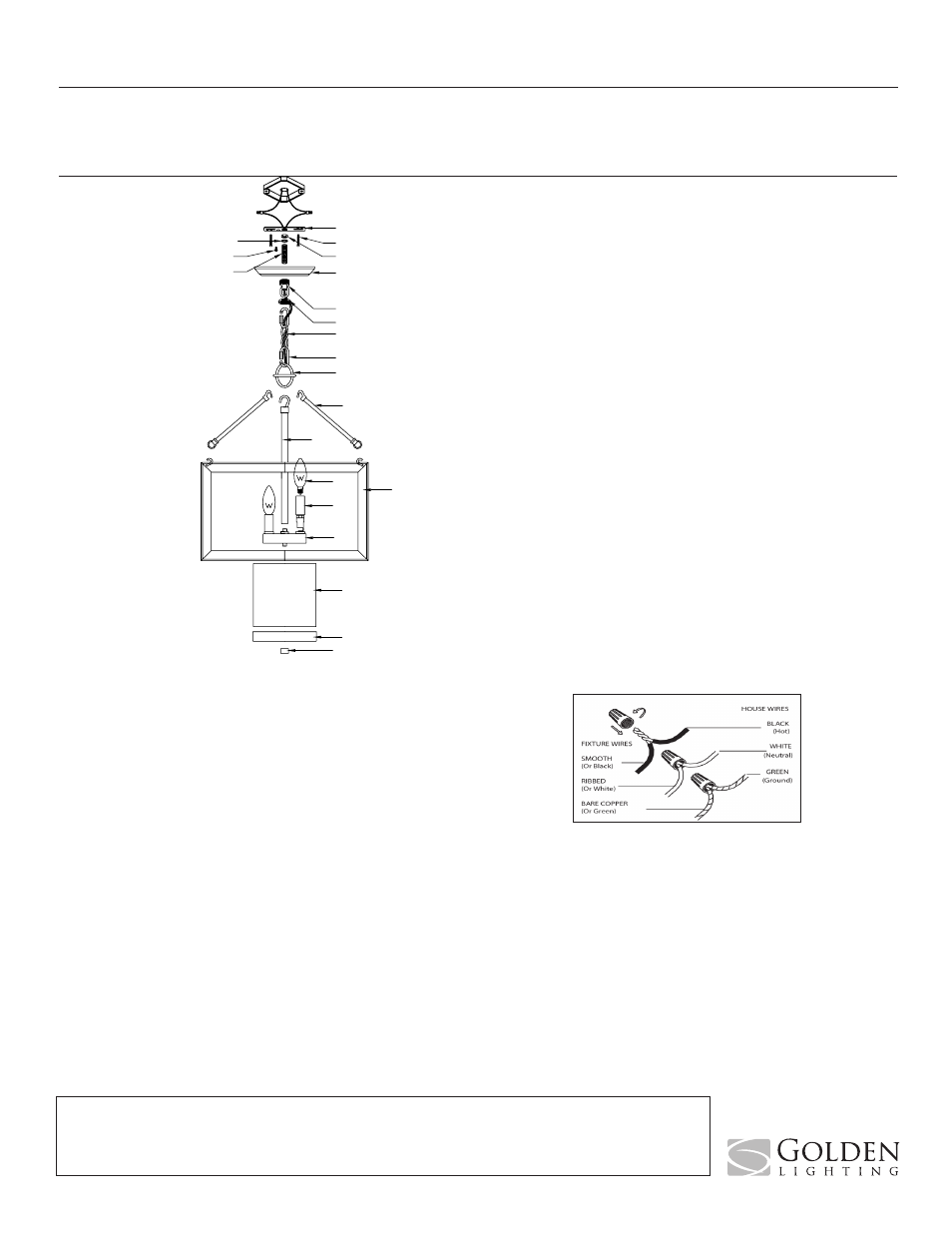

PENDANT
INSTALLATION
