2073-3P GMT INSTALLATION INSTRUCTIONS PART 1
INSTALLATION INSTRUCTIONS
Fixture Name: SMYTH 2073-3P GMT
For Chandelier Light Fixture
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER

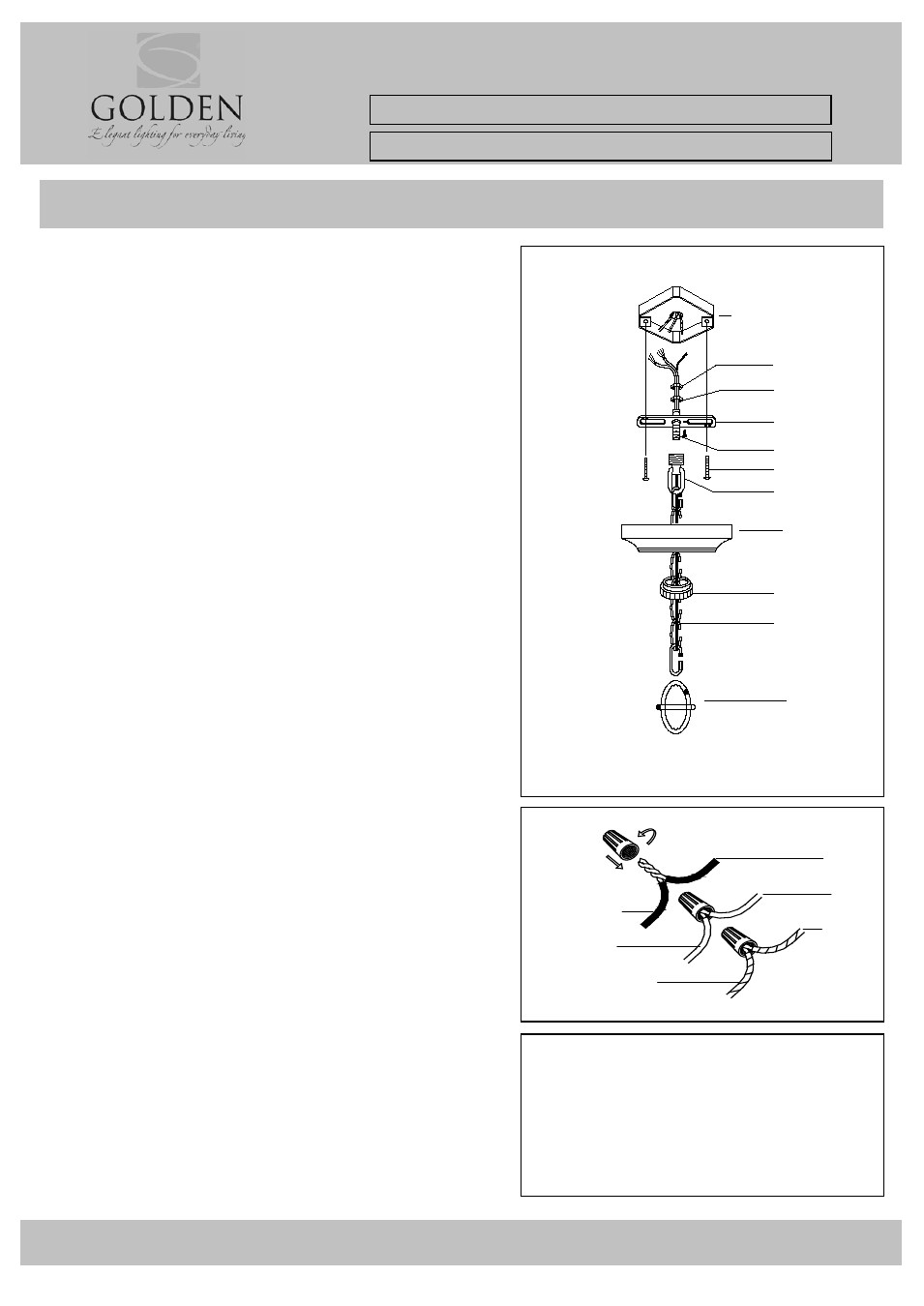

HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new fixture from the carton along
with the yellow bag that holds all parts. Check that all parts
are included as shown in the illustrations and Parts and
Assembly Sheet.
2. Shut off the power at the circuit breaker and remove the
entire old fixture from ceiling, including the old mounting
strap.
3. Thread Nipple (C) into Canopy Loop (F) until snug.
4. Thread the other end of Nipple (C) with Canopy Loop (F)
attached into Mounting Strap (D).
5. Place Lock Washer (B) over end of Nipple (C) protruding
through Mounting Strap (D) and thread Hex Nuts (A) onto
nipple (C) until tight.
6. Take this mounting strap assembly and mount to ceiling
junction box with junction box screws (E). Tighten screw
securely with screw driver.
7. Unscrew the Canopy Loop Collar (H) from Canopy Loop
(F). Take the Canopy (G) and pass over the Canopy Loop
(F).Approximately one half of the Canopy Loop (F) exterior
threads should be exposed. Adjust until desired height is
reached. The Canopy Loop Collar (F) should fit snugly on
the Canopy Loop (F) after the Canopy is installed. Remove
Canopy (G) and Canopy Lock Collar (H)
8. Assemble the fixture and have an assistant or a secure
support to hold the weight of the fixture while you complete
the wiring connections.
9. Thread the fixture wires and ground wire of the assembled
fixture through the chain loops, Canopy Loop (F), Nipple
(C) and into the Junction Box.
CONNECTING THE WIRES (Fig.2)
10. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to
WHITE ( or RIBBED) .
11. Ground wire connection: Connect fixture’s ground
wire to supply ground wire (this usually has green
insulation) with wire connector. If there is no supply
ground wire at the ceiling junction box then attach
fixture ground wire securely onto green grounding
screw that is located at the mounting bar.
NOTE: Twist the wires together in the same direction you
twisted the wire connector onto the wires.
12. Tuck these wire connections neatly into the ceiling
Junction Box.
13. Raise Canopy (G) to the ceiling and secure it in place by
tightening the Canopy Loop Collar (H) into the Canopy
Loop (F).
14. Install the light bulbs and glass shade as per the Parts and
Assembly Sheet.
Fig. 1
Fig.2
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX
AND TEST THE FIXTURE
