PARTS & ASSEMBLY SHEET
Fixture Name: Valencia 2049-9 FB

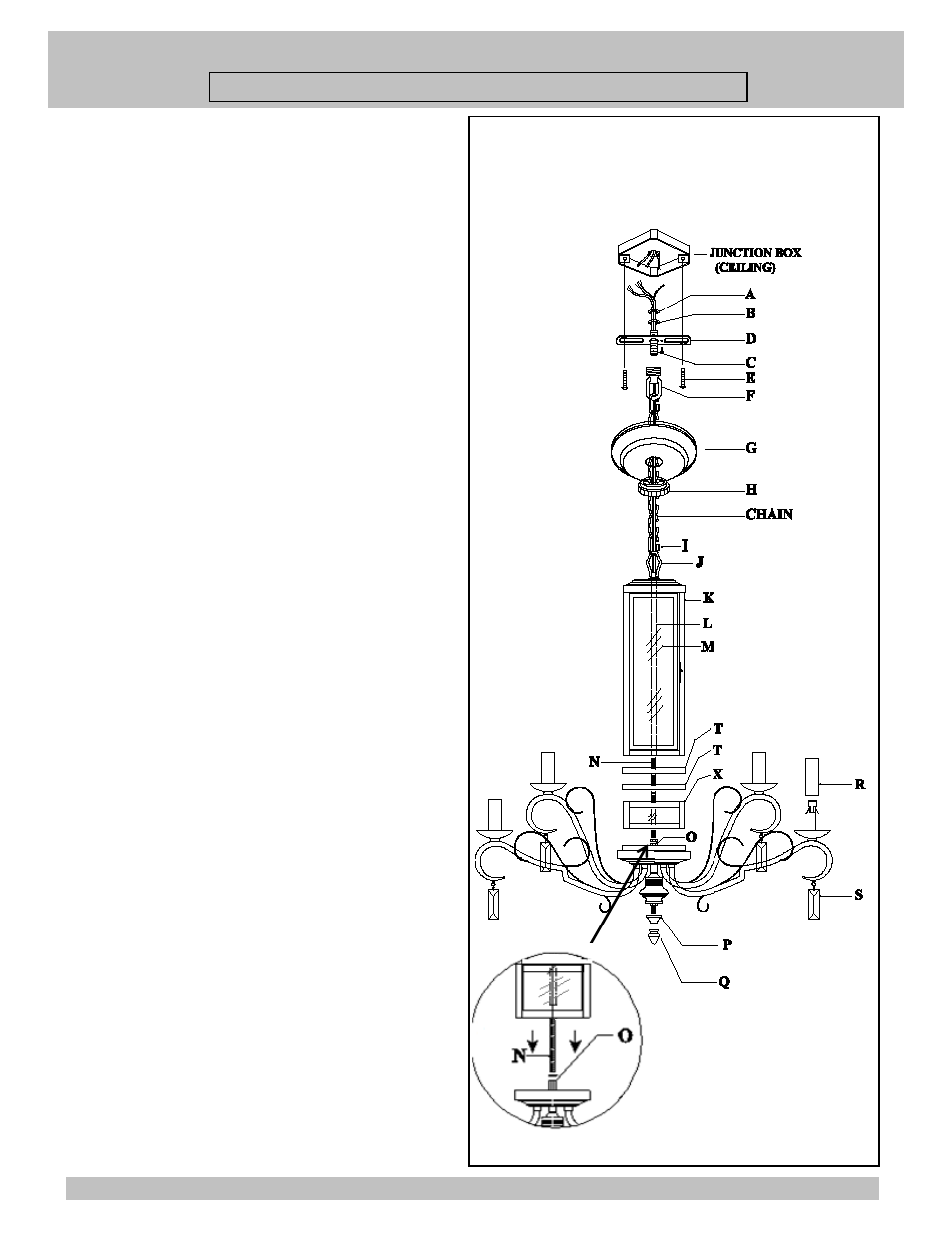

Fig 2
For Customer Service, contact the place of purchase to arrange for replacement parts.
ASSEMBLING THE FIXTURE (Fig. 2)
3. Place and tighten the Threaded Nipple (N) on top
of hex nut (O).
4. Then slide the Box (X), Lids (T), Center Column
(L) along with the glass cage (K) on top of each
other accordingly. Settle the Top cap in place.
5. Then tighten everything together with the Top
Loop (J).
NOTE: SOME ADJUSTMENT MAYBE NEEDED ON
THE DECORATIVE METAL SCROLLING OF THE
ARMS. THESE ARE FLEXIBLE, BEND GENTLY
TO DESIRED SHAPE.
6. By measuring determine correct number of links
needed for proper hanging height. Use a pair of
pliers to open one link of the Chain then remove the
excess Chain and discard it.
7. Use one Chain Connector (I) to attach one end of
the Chain to the Top Loop (J) and close the Chain
Connector (I)
8. Feed the fixture wires through the Chain (every
three links) and pull the wires until taut.
9. Slip Canopy Loop Collar (F) over the chain, and
then do the same with the Canopy (G).
10. When ready to complete the installation, Use the
other chain connector and attach the other end of
the chain to the Canopy Loop (I) and close the chain
connector.
11. Feed the wires through Canopy Loop (J) and
Nipple (C) and pull until taut.
* You may now install the fixture.
12. Slide the Candle sleeves (R) on the sockets,
then hang the Crystals (S).
13. Place the Bottom cap (P) over the nipple at
fixture base and secure in place with the Finial (Q).
14. Install the light bulbs in accordance with the
fixture's specifications.
(DO NOT EXCEED THE MAXIMUM WATTAGE RATING)
