For Wall Mount Light Fixture
INSTALLATION INSTRUCTIONS
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
Fixture Name: Riverton 1567-1W PC
For Customer Service, contact the place of purchase to arrange for replacement parts.

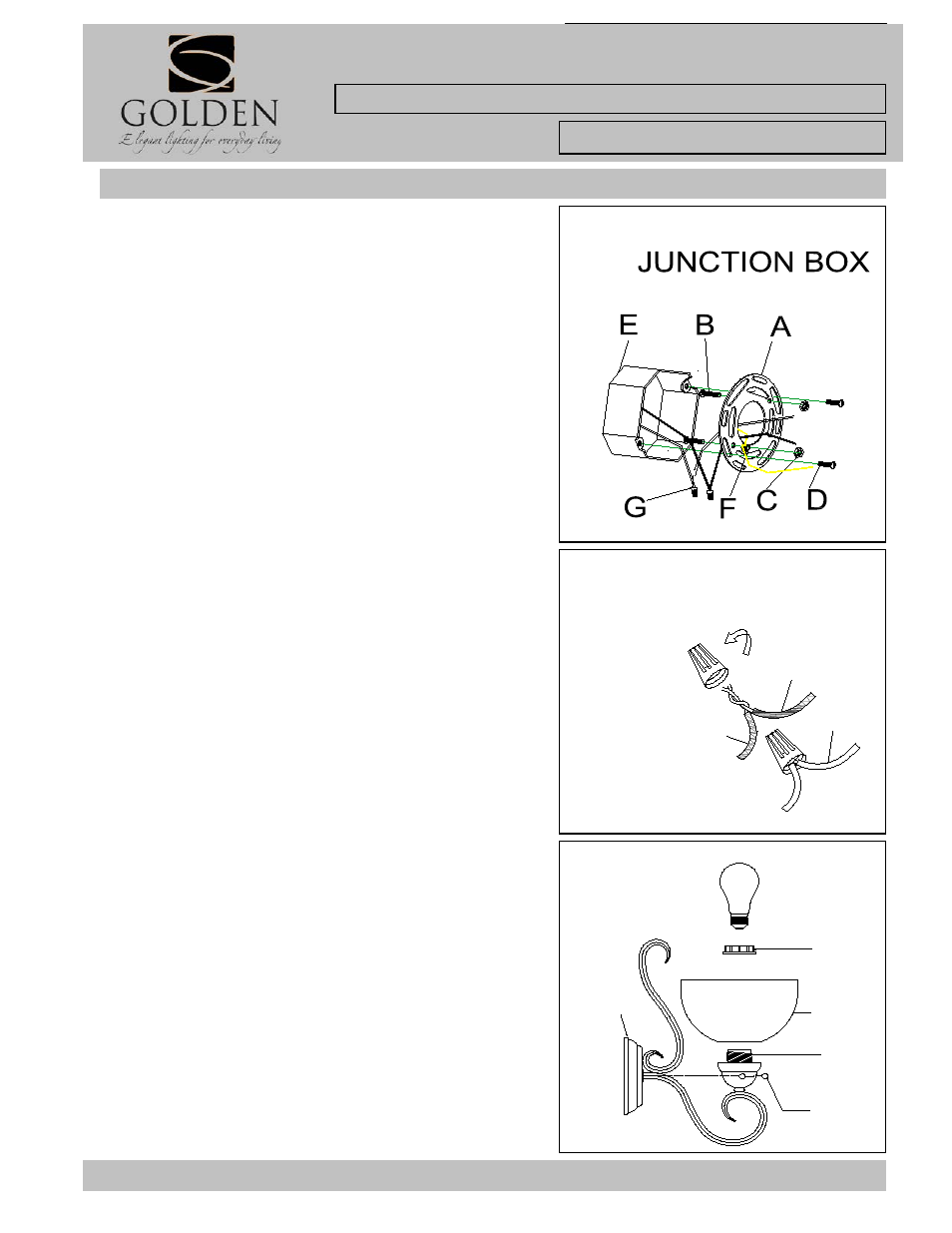

Fig. 3
Fig. 1
Fig. 2
HANGING THE FIXTURE(Fig.1)
1.Carefully remove the new fixture from the carton and the
yellow bag that holes all your parts. Check that all
parts are included as shown in the illustration and parts list.
2. Shut off power at the circuit breaker and remove the old
fixture from wall, including the old mounting strap.
3.The Mounting Strap(A) contains several pairs of threaded
holes, find the pair of holes that match the holes spacing
in your fixture Back Plate (K) and thread the two Mounting
Screws(B) half way into the Mounting Strap(A).
4.Place the Mounting Strap (A) over the Junction Box (E) so
the Mounting Screws (B) are vertical or horizontal, as
required by fixture type.
5. Attach the Mounting Strap (A) to the Junction Box (E) by
using the two mounting screws(D). Tighten the screws
securely.
CONNECTING THE WIRES (Fig. 2)
6. Attach the power supply wires to the fixture lead wires
by connecting BLACK to BLACK (or SMOOTH) and
WHITE to WHITE (or RIBBED).
7. Attached the GROUND wire (GREEN or COPPER) from
the Junction Box and the fixture Ground wire to the
green Ground Screw on the Mounting Strap (B) or
connect both wires together using the correct size
of wire connectors
NOTE: Twist the wires together in the same direction you
twist the wire connector onto the wires.
8. Tuck these wire connections neatly into the Junction Box.
FINISHING THE INSTALLATION (Fig. 3)
9. Place the fixture Back Plate (J) over the Thread Rod (B),
so it protrude through the hole in the Back Plate (J)
10. Thread the Deco Nut (H) onto the Thread Rod (B) and
continue turning until the Back Plate (J) is snug against
the wall.
11. Install glass as per the fixture assembly instructions
12. Slide the Glass Shade ( H ) over Socket (I)
and secure Glass Shade (H) with Socket Ring(J)
13. Install light bulb in accordance with the fixture's
specifications.
(DO NOT EXCEED THE MAXIMUM WATTAGE RATING)
F IX TU RE W IRE S H O US E W IRE S
HOUSE WIRES
WHITE
BLACK
RIBBED (WHITE)
SMOOTH (BLACK)
FIXTURE WIRES
J
H
I
L
K
