Golden Lighting 1089-9 RSB-PRL - Manual (Page 2)

Fixture Name: Pemberly Court 1089-9 RSB-PRL
For Customer Service, contact the place of purchase to arrange for replacement parts.
9. Slip Canopy Loop Collar (H) over the chain, then do the
same with Canopy (G).
10. When ready to complete the installation, use the other
chain connector and attach the other end of Chain (K) to
Canopy Loop (F) and close the chain connector.
11. Make sure the weight of the chandelier will be supported
by the chain-not the electrical wire.
* You may now install the fixture.
6. By measuring, determine correct number of links needed
for proper hanging height. Use a pair of pliers to open one
link of the Chain (K). Remove the excess chain and discard
it.
7. Use one of Chain Connector (L) to attach one end of the
chain to the Top Loop (J) and close the chain connector.
8. Feed the fixture wires through Chain (K) (every three links)
and pull the wires until taut.
Fig 2
Note: Complete these remaining steps after the fixture is
hung.
12. Turn Bottom Threaded Rod (S) into the coupling at
bottom center of Frame (M).
13. Slide Bottom Cover (T) over the Bottom Threaded Rod
(S). Secure in place with Hex Nut (P) until tight. Slide Bottom
Cap (U) over Bottom Threaded Rod (S). Secure in place with
Finial (V). Twist until tight.
14. Slide the Glass Shade (W) over the socket of Frame (M)
and secure Glass Shade (W) by threading Socket Ring (X)
onto the socket of Frame (M) until tight.
15. Install the light bulb (not provided) in accordance with the
fixture's specifications.
(DO NOT EXCEED MAXIMUM WATTAGE RATING)

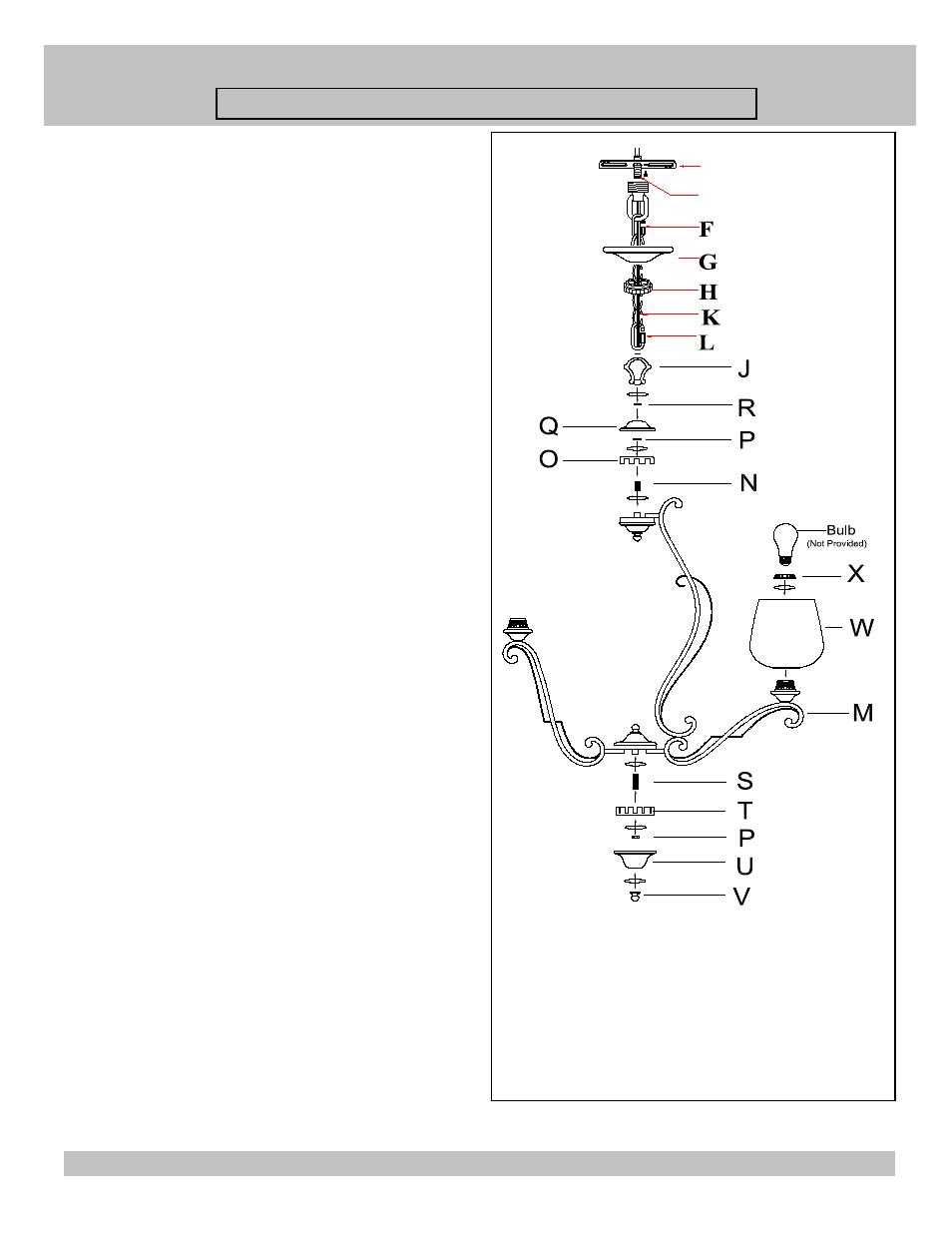

PARTS & ASSEMBLY SHEET
C
D
