For Wall Mount Light Fixture

INSTALLATION INSTRUCTIONS

WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

Fixture Name: Pemberly Court 1089-1W RSB-PRL

For Customer Service, contact the place of purchase to arrange for replacement parts.

Fig. 3

Fig. 1

Fig. 2

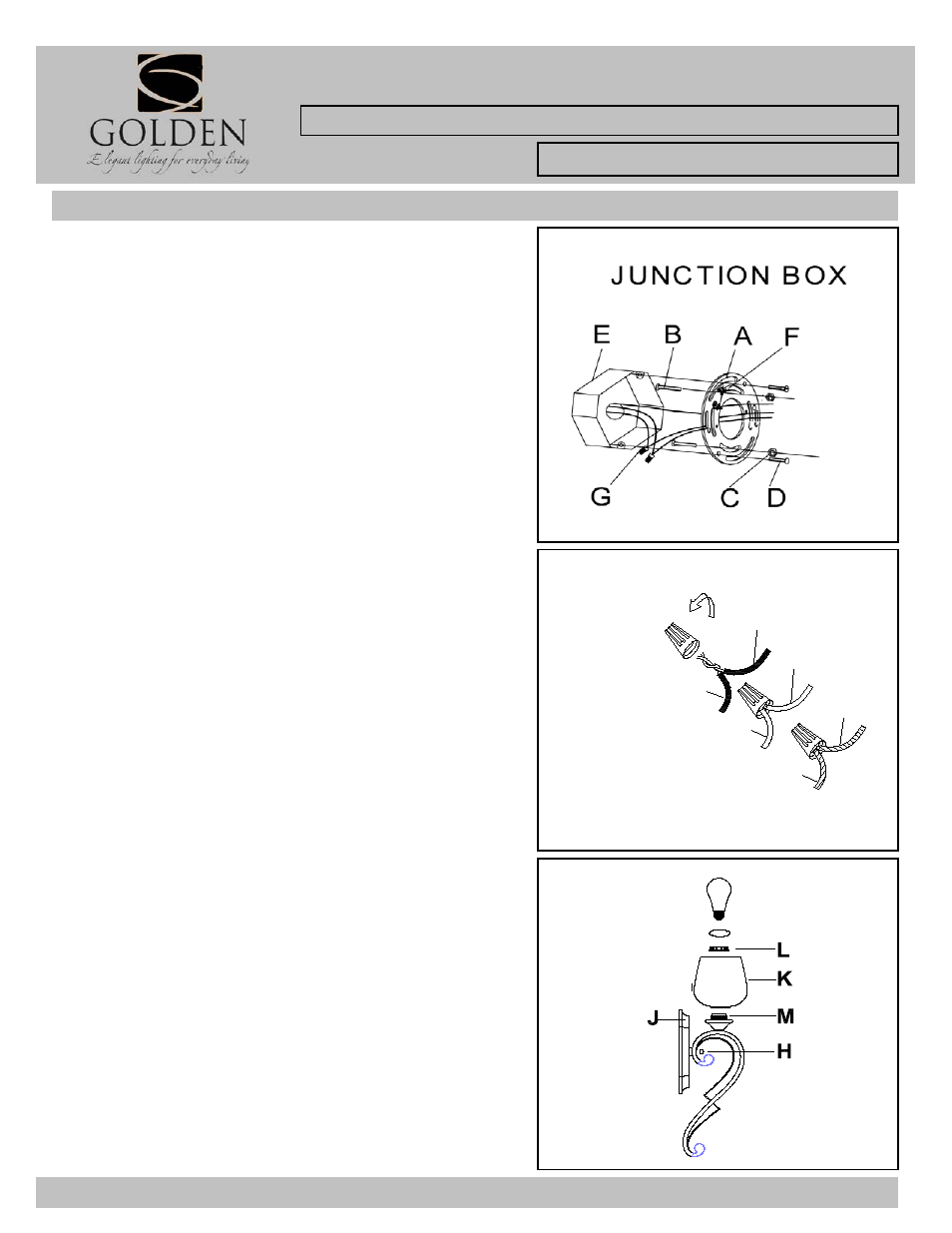

HANGING THE FIXTURE (Fig. 1)
1. Carefully remove the new fixture from the carton and the yellow
bag that holes all your parts. Check that all parts are included as
shown in the illustration and parts list.
2. Shut off power at the circuit breaker and remove the old fixture
from wall, including the old mounting strap.
3. The Mounting Strap(A) contains several pairs of threaded holes,
find the pair of holes that match the holes spacing in your fixture
Back Plate (K) and thread the two Mounting Screws(B) half way
into the Mounting Strap(A).
4. Place the Mounting Strap (A) over the Junction Box (E) so the
Mounting Screws (B) are vertical or horizontal, as required by
fixture type.
5. Attach the Mounting Strap (A) to the Junction Box (E) by using
the two mounting screws(D). Tighten the screws securely.

CONNECTING THE WIRES (Fig. 2)

5. Attach the power supply wires to the fixture lead wires by

connecting BLACK to BLACK (or SMOOTH) and WHITE to

WHITE (or RIBBED).

6. Attach the GROUND wire(GREEN or COPPER) from the

Junction Box and the fixture Ground wire to the green Ground

Screw on the Mounting Bracket (A) or connect both wires

together using the correct size of wire connectors.

NOTE: Twist the wires together in the same direction you twist the

wire connector onto the wires.

7. Tuck these wire connections neatly into the Junction Box.

FINISHING THE INSTALLATION (Fig.3)

9. Place the fixture Back Plate (J), over the Mounting screws(B), so

they protrude through the holes in the Back Plate (J).

10. Thread the Deco Nuts (H) onto the Mounting Screws (B) and

continue turning until the Back Plate (J) is snug against the wall.

11. Install glass as per the fixture assembly instructions

YOUR INSTALLATION IS NOW COMPLETE. RETURN POWER

TO THE JUNCTION BOX AND TEST THE FIXTURE.

HANGING THE FIXTURE (Fig. 1)
1. Carefully remove the new fixture from the carton and the
yellow bag that holds all your parts. Check that all parts are
included as shown in the illustrations and the Parts and
Assembly Sheet.

2. Shut off power at the circuit breaker and completely remove
the old fixture from wall, including the old mounting strap.

3. Mounting Strap (A) contains several pairs of threaded holes,
find the pair of holes that match the holes spacing in your
fixture Back Plate (K) and thread the two Mounting Screws (B)
half way into the Mounting Strap (A).

4. Place the Mounting Strap (A) over Junction Box (E) so that
Mounting Screws (B) are vertical or horizontal, as required by
fixture type.

5. Attach Mounting Strap (A) to Junction Box (E) using the two
mounting screws (D). Tighten the screws securely.


CONNECTING THE WIRES (Fig. 2)
5. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to
WHITE (or RIBBED).

6. Attach the GROUND wire (GREEN or COPPER) from the
Junction Box and the fixture Ground wire to the green Ground
Screw on the Mounting Bracket (A) or connect both wires
together using the correct size of wire connectors.
NOTE: Twist the wires together in the same direction you twist
the wire connector onto the wires.

7. Tuck these wire connections neatly into the Junction Box.

FINISHING THE INSTALLATION (Fig. 3)
9. Place the fixture Back Plate (J), over the Mounting screws
(B), so that they protrude through the holes in the Back Plate
(J).

10. Thread Decorative Nuts (H) onto Mounting Screws (B) and
continue turning until Back Plate (J) is snug against the wall.

11. Install the glass as per the fixture assembly instructions.
YOUR INSTALLATION IS NOW COMPLETE. RETURN
POWER TO THE JUNCTION BOX AND TEST THE FIXTURE.

BARE COPPER

(Ground)

GREEN
(Ground)

FIXTURE WIRES

SMOOTH (BLACK)

RIBBED (WHITE)

BLACK

WHITE

HOUSE WIRES
