For Customer Service, contact the place of purchase to arrange for replacement parts.
INSTALLATION INSTRUCTIONS
Fixture Name: Hidalgo 1051-BA1 SBZ
For Wall Mount Light Fixture
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

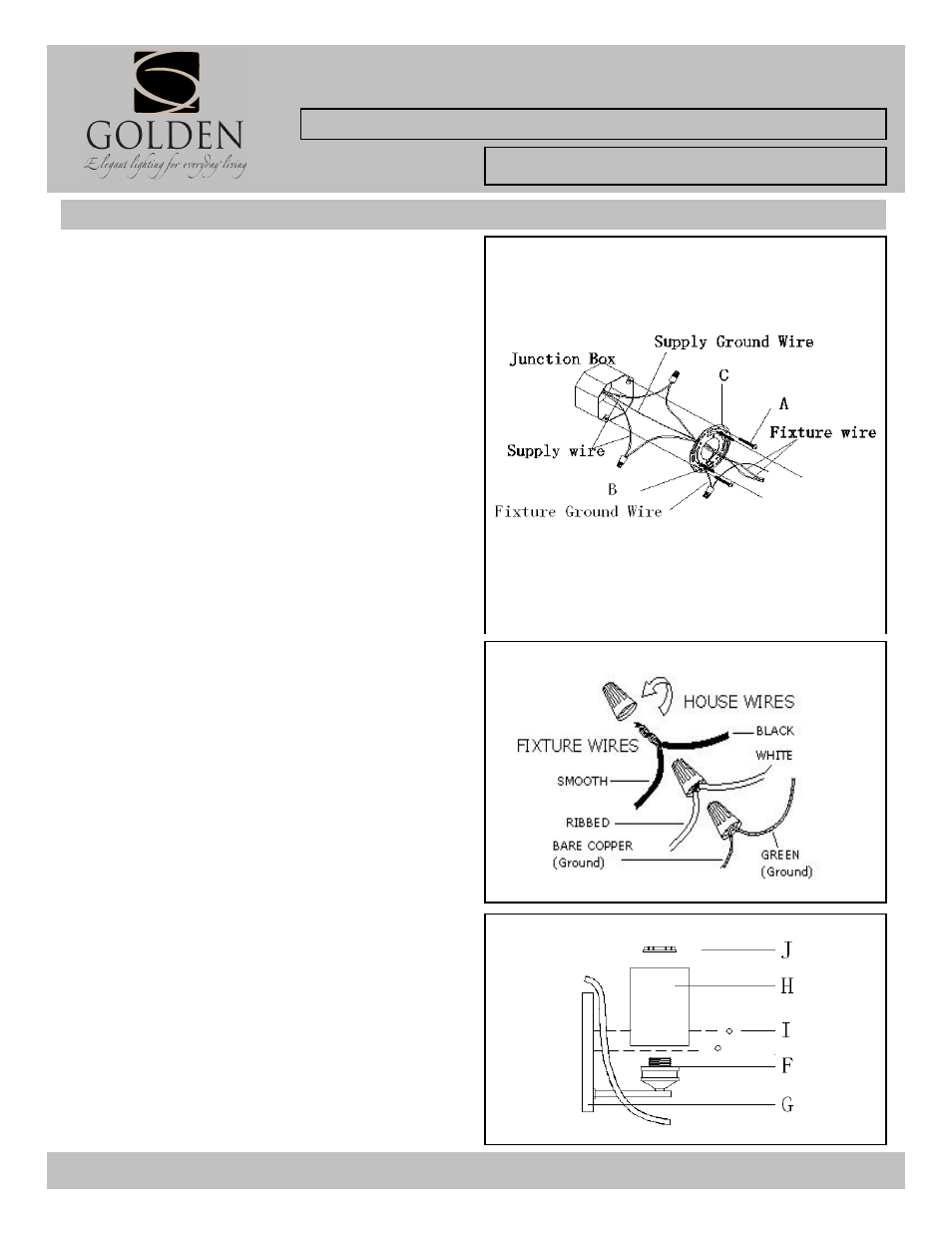

HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new fixture from the carton and the
yellow bag that holds all your parts. Check that all parts are
included as shown in the illustration and parts list.
2. Shut off power at the circuit breaker and remove the old
fixture from ceiling, including the old mounting strap.
3. The Circular Mounting Strap (B) contains several pairs of
threaded holes, find the pair of holes that match the hole
spacing in your fixture Back Plate (G) and thread the two
Mounting Screws (C) half way into the Mounting Strap (B) facing
down,Secure in place with hex nuts. These will have their
threaded ends protrude through the two holes in the Back Plate
(G).
4. Place the Mounting Strap (B) over the junction box.
5. Attach the Mounting Strap (B) to the Junction Box using the
two mounting screws (A). Tighten the screws (A) securely with
screw driver.
Fig. 1
CONNECTING THE WIRES (Fig 2)
6. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to
WHITE (or RIBBED).
7. Attach the GROUND wire(GREEN or COPPER) from the
Junction Box and the fixture Ground wire to the green Ground
Screw on the Mounting Plate (B) or connect both wires
together using the correct size of wire connectors.
NOTE: Twist the wires together in the same direction you twist
the wire connector onto the wires.
8. Tuck these wire connections neatly into the Junction Box.
Fig. 2
FINISHING THE INSTALLATION (Fig.3)
9. After tucking these wire connections neatly into the Junction
Box and place the fixture Front Plate (G) over the two Mounting
Screws (C) and secure against the Mounting Plate by threading
two Deco Nuts (I) over the two Mounting Screws (C) until snug
against the wall.
10. Install the light bulbs and glass shade as per the fixture
assembly sheet.
YOUR INSTALLATION IS NOW COMPLETE. RETURN
POWER TO THE JUNCTION BOX AND TEST THE FIXTURE.
Fig. 3
