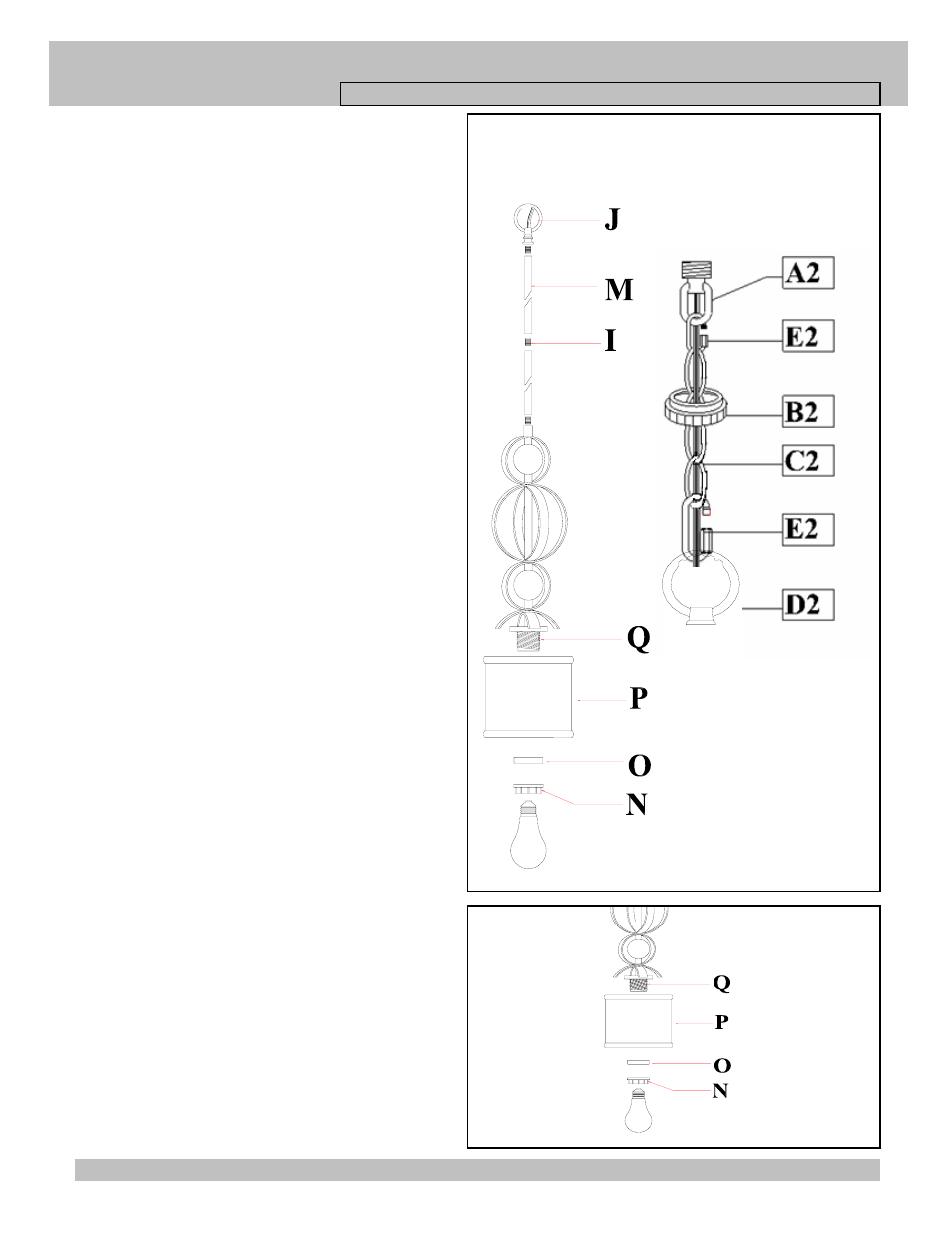

ASSEMBLING THE FIXTURE (Fig.2)

4. Pull the fixture’s wire through the Rods until

taut.

5. Thread Rod ( I ) into Frame (Q) until tight.

6. Thread Rod (M)into Rod ( I ) until tight. repeat

for any additional rods.

7. Feed the fixture wires through the Top loop

(D2 , J) and pull the wires until taut. Then screw

the Top Loop

(D2) to the rod on the top of

fixture (M) until tight.

Fig 2

PARTS & ASSEMBLY SHEET

Fixture Name: Cerchi 1030-MIL CH

For Customer Service, contact the place of purchase to arrange for replacement parts.

8. By measuring determine correct number of links

needed for proper hanging height. Use a pair of

pliers to open one link of the Chain (C2) then

remove the excess Chain (C2) and discard it.

9. Use one chain connector (E2) to attach one end

of the chain to the Top loop (D2) and close the

chain connector.

10. Feed the fixture wires through the Chain

(every three links) and pull the wires until taut.

11. Slip Canopy loop collar (B2) over the chain,

then do the same with the canopy (F2).

12. When ready to complete the installation Use

the other chain connector and attach the other

end of the chain to the canopy loop (A2) and close

the chain connector.

13.Make sure the weight of the chandelier will be

supported by the chain-not the electrical wire.

* You may now install the fixture.

14. Place the glass shade (P) over the threaded

socket (Q), secure with Socket washer (O) and by

threading the Socket ring (N) until tight.

15. Install the light bulb in accordance with the

fixture’s specifications.

16. The Center column rings may be turned to

your desired angle.

(DO NOT EXCEED MAXIMUM WATTAGE RATING!)

Fig 3
