For Flush Mount Light Fixture
INSTALLATION INSTRUCTIONS
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
Fixture Name: Cerchi 1030-FM CH
Fig. 3
Fig. 1
Fig. 2
For Customer Service, contact the place of purchase to arrange for replacement parts.

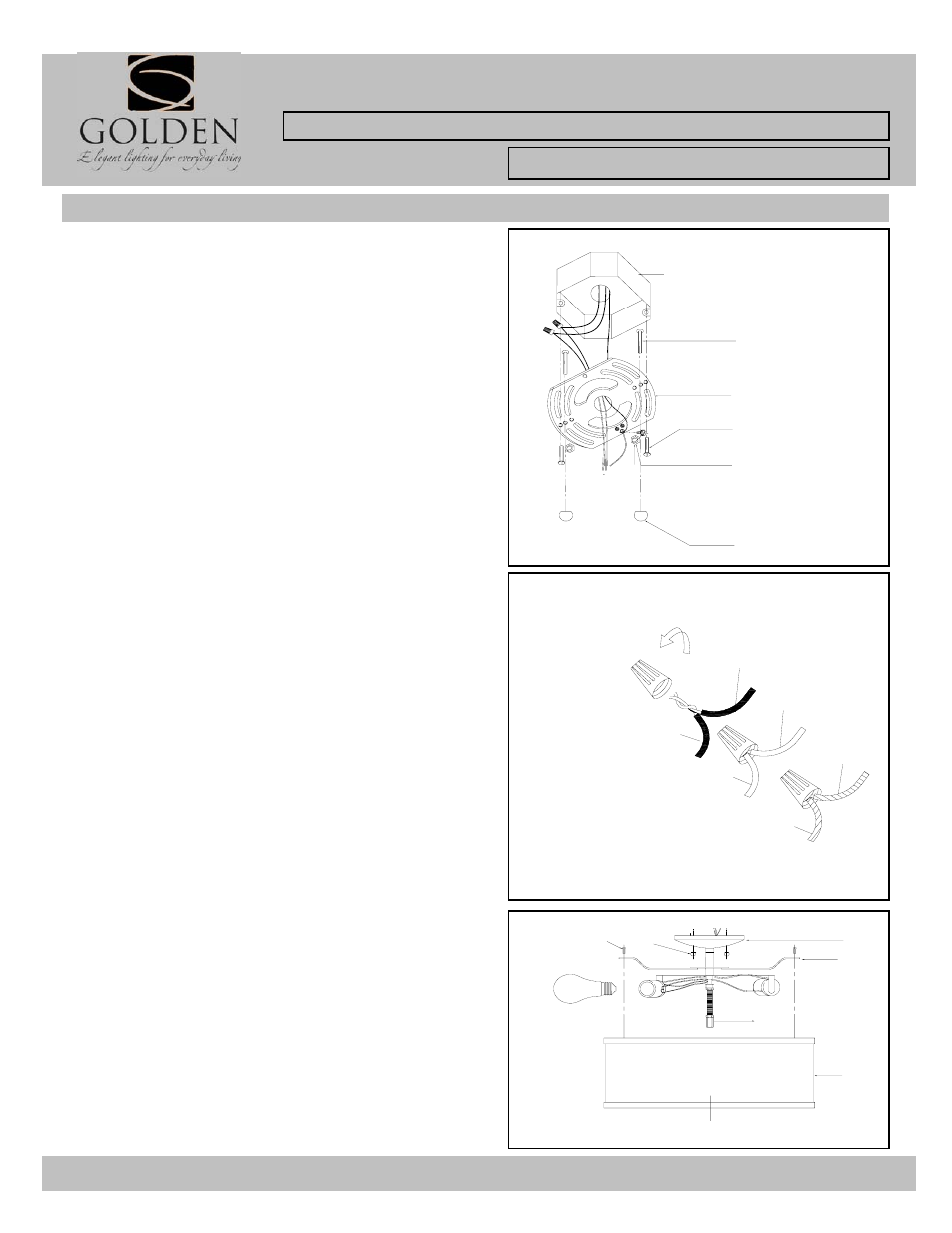

HANGING THE FIXTURE (Fig.1)
1.Carefully remove the new fixture from the carton and the
yellow bag that holes all your parts. Check that all parts are
included as shown in the illustration and parts list.
2. Shut off power at the circuit breaker and remove the old
fixture from ceiling, including the old mounting strap.
3. Thread the two fixture Mounting screws (A) into the pre-
drilled Holes in the Mounting strap (B) spaced the same
distance apart as the holes in the fixture top cap. Secure in
place with Hex nuts.
4. Attach Mounting Strap (B) to the junction box using the
two Mounting Screws (C)
CONNECTING THE WIRES (Fig 2)
5. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE
to WHITE (or RIBBED).
6. Attach the GROUND wire(GREEN or COPPER) from
the Junction Box and the fixture Ground wire to the green
Ground Screw on the Mounting Bracket (B) or connect both
wires together using the correct size of wire connectors.
NOTE: Twist the wires together in the same direction you
twist the wire connector onto the wires.
7. Tuck these wire connections neatly into the Junction Box.
FINISHING THE INSTALLATION (Fig.3)
8. Raise Fixture top cap (E) to the ceiling with the fixture
Mounting screws (A - Fig. 1) protruding through holes and
secure in place with Deco nuts (F).
9. Install the light bulbs and diffuser as per the fixture
assembly sheet.
YOUR INSTALLATION IS NOW COMPLETE. RETURN
POWER TO THE JUNCTION BOX AND TEST THE FIXTURE.
BARE COPPER
(Ground)
GREEN
(Ground)
FIXTURE WIRES
SMOOTH (BLACK)
RIBBED (WHITE)
BLACK
WHITE
HOUSE WIRES
H
K
G
E F
L
A
D
C
JUNCTION BOX
(CEILING)
B
F
